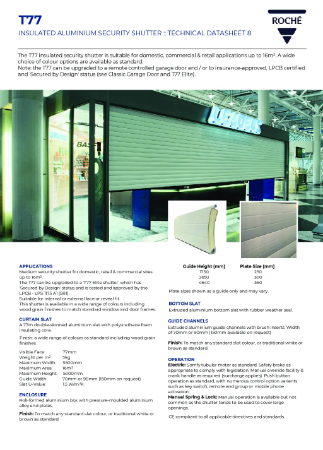

T77 Aluminium Security Shutter

Name: T77 Aluminium Security Shutter
Brand: Roché Systems Ltd
SKU: c89BMoYUNQ2tEm7G2TDhBt

Verifisert av produsent for 1 måned siden

Roché Systems Ltd

Double skinned insulated aluminium security roller shutter with 77 mm high slats.

Gå til:

BOS

03330347967 Nettside

Applikasjon

For use in high security domestic and commercial applications.

Beskrivelse

Double skinned insulated aluminium security roller shutter with 77 mm high slats.

Features and benefits:

The shutter can span up to 5.5 m in width and an area up to 16 m².
Numerous control option variants such as group, remote control or mobile phone activation.

Generell informasjon

Farge	White Brown
Overflatebehandling	Galvanized Powder-coated Laminated
Materiale	Aluminium
Form	Rectangle
Lengde	Bespoke
Bredde	Bespoke
Høyde	Bespoke
Garantibeskrivelse	One year

Uniclass	Pr_30_59_84_73 RulleporterPrimær
CAWS	L20/60 Doors L20/610 Roller shutters/ curtains

Product range	Insulated Roller Shutters

Spesifikasjonsdata - Rulleporter

Klassifiseringsdata
Opening sizes	5500 x 2800 mm. Veiledning for spesifikasjonsvalg: Available up to 4000 mm height depending on width.
Arrangement	Vertical, external face fix. Vertical, internal face fix. Vertical, reveal fix.
Shutter curtain.	-
Lath material	Aluminium. Veiledning for spesifikasjonsvalg: 20 mm thick aluminium double skinned polyester powder-coated with polyurethane foam insulating core, 77 mm in height.
Finish and colour	Powder coated - Brown. Veiledning for spesifikasjonsvalg: Standard. Powder coated - White. Veiledning for spesifikasjonsvalg: Standard. Powder coated - BS. Veiledning for spesifikasjonsvalg: Insert colour code. Powder coated - RAL. Veiledning for spesifikasjonsvalg: Insert RAL colour code. Laminated wood effect. Veiledning fra produsent Option to powder coat any RAL/ BS colour or laminate wood effect (surcharge applies). Insert requirement; consult with manufacturer for more information.
Frame and guides	-
Material	Aluminium. Veiledning for spesifikasjonsvalg: Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels/ bottom slat: Extruded aluminium with brush and rubber weather seals.
Finish	Powder coated.
Colour	Brown. Veiledning for spesifikasjonsvalg: Standard colour. White. Veiledning for spesifikasjonsvalg: Standard colour.
Operation	-
Mode	Electric, NRG Econom tubular motor. Electric, Somfy tubular motor. Manual, cord belt. Veiledning for spesifikasjonsvalg: Operation may prove problematic dependent on size. Manual, rod and crank. Veiledning for spesifikasjonsvalg: Operation may prove problematic dependent on size. Manual, spring and lock. Veiledning for spesifikasjonsvalg: Operation may prove problematic dependent on size. Veiledning fra produsent Electric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available.
Control	Somfy tubular motor and internal rocker or external key switch as standard. NRG tubular motor and internal rocker or external key switch as standard.
Accessories	None. Crank handle. Manual override facility.
Enclosure type	Box. Veiledning for spesifikasjonsvalg: Standard. Circular.
Guide channel depth	70 mm. 90 mm. 150 mm.
Vekt	5.5 k.g./m².
Size	77 mm.
