Stöbich System: GCC - Conveyor Fire Protection System
Verifisert av produsent for 6 døgn siden
Vertical
Vertical
A single-leaf design, vertically or horizontally closing the wall opening of web-bound conveyer systems.
Applikasjon
Track-bound conveyor system fire protection.
Beskrivelse
Single-leaf, vertically and horizontally closing fire protection closure for wall openings of web-bound conveyor systems; separated and unseparated conveyor technology in the closing area.
Features and benefits:
- Specialist building-based conveyor protection system.
- Space-saving.
- Single-leaf design.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles (vertical) and C4 durability - up to 100 000 operating cycles (horizontal).
- Fire resistance: EI1 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- ETA-16/0851 European Technical Assessment.
Generell informasjon
Farge | Red Grey Other |
Overflatebehandling | Galvanized |
Materiale | Stainless steel |
Form | Rectangle |
Lengde | Bespoke |
Bredde | Bespoke |
Høyde | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Spesifikasjonsdata - Branngardinsystemer
Klassifiseringsdata | |
System performance | Veiledning fra produsent
|
Fire curtain | Vertical active fire curtain barriers. Veiledning for spesifikasjonsvalg:
|
Head supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
Side supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
System accessories | Veiledning fra produsentConsult manufacturer and insert requirements or omit. |
Brannmotstand | EI1 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. |
Durability Class | C5 (200 000 closing cycles). |
Operasjon | Motor. Veiledning fra produsentRe-opening operation. |
Dimensjoner | Veiledning for spesifikasjonsvalg: Clearwall opening - insert requirements.
|
System | Interrupted conveyor system. Inclined conveyor system. Continuous belt conveyor system. Continuous transfer carriage. Continuous suspension chain conveyor system. Continuous roller conveyor system. Continuous conveyor system. Veiledning fra produsentConveyor system type. |
Supporting structure | Veiledning for spesifikasjonsvalg: Insert requirements.
|
Bærekraftsdata
Opprinnelsesland for materiale | Germany |
Produksjonsland for produktet | Germany |
Materiale | Stainless steel |
Resirkulerbarhet | Manufacturer's standard |
Dokumentasjon

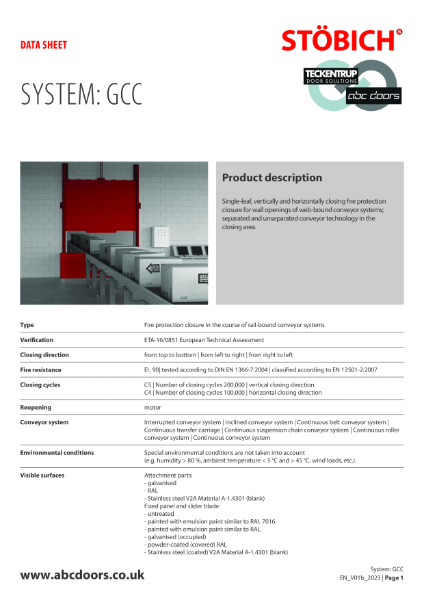

Stöbich System: GCC (Technical Data)
