Stöbich System: ECClos®-S - Conveyor Fire Protection System
Verifisert av produsent for 9 døgn siden
Vertical
Vertical
Conveyor system closure designed as a robust damper made of sheet metal panels.
Applikasjon
Track-bound conveyor system fire protection.
Beskrivelse
The Stöbich ECClos®-S sheet metal damper conveyor fire protection system is suitable for interrupted and continuous conveyor systems (belt, roller and suspension chain conveyors). For easy application, the ECClos®-S uses variable fixed panels made up of a robust sandwich construction with sheet metal casing on all sides – a design feature that ensures the ECClos®-S is adaptable to meet fire protection requirements.
Features and benefits:
- Specialist building-based conveyor protection system.
- Segmented construction enables easy transportation to site.
- Variable fixed panels provide for easy implementation of customer-specific solutions.
- Sandwich construction.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles.
- Fire resistance: EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- European Technical Assessment - ETA (EU) and Certificate of Constancy of Performance (UK).
Generell informasjon
Farge | Red Grey Other |
Overflatebehandling | Galvanized |
Materiale | Metal |
Form | Rectangle |
Lengde | Bespoke |
Bredde | Bespoke |
Høyde | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Spesifikasjonsdata - Branngardinsystemer
Klassifiseringsdata | |
System performance | Veiledning fra produsent
|
Fire curtain | Vertical active fire curtain barriers. Veiledning for spesifikasjonsvalg:
|
Head supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
Side supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
System accessories | Veiledning fra produsentConsult manufacturer and insert requirements or omit. |
Brannmotstand | EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. |
Durability Class | C5 (200 000 closing cycles). |
Operasjon | Electromotive. Veiledning for spesifikasjonsvalg: Standard. Manual. Veiledning for spesifikasjonsvalg: Optional. Veiledning fra produsentRe-opening operation. |
Dimensjoner | Veiledning for spesifikasjonsvalg: Insert requirements. Approval range:
Technical feasibility:
|
System | Skid conveyor. Sloping track. Interrupted conveyor system. Continuous belt conveyor system. Continuous travelling carriages. Continuous suspension chain conveyor system. Continuous roller conveyor system. Continuous conveyor system. Veiledning fra produsentConveyor system type. |
Supporting structure | Veiledning for spesifikasjonsvalg: Insert requirements.
|
Bærekraftsdata
Opprinnelsesland for materiale | Germany |
Produksjonsland for produktet | Germany |
Materiale | Metal |
Resirkulerbarhet | Manufacturer's standard |
Dokumentasjon

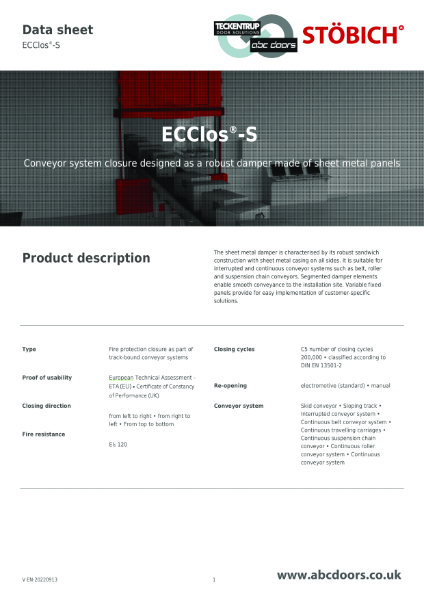

Stöbich System: ECClos®-S (Technical Data)
