Stöbich System: ECClos®-Q - Conveyor Fire Protection System
Verifisert av produsent for 1 døgn siden
Conveyor system closure designed as a space-saving, robust damper made of sheet metal panels.
Applikasjon
- Railway-bound conveyor system fire protection.
- Suitable for continuous and separate conveyor systems, such as baggage belt conveyors
Beskrivelse
The horizontally slewing damper construction requires very little space in the lintel area and is therefore a particularly suitable option for conventional closures in damper design. ECClos-Q meets the requirements of classifications EI 30 to EI 120 and EW 240 (aerated concrete). The damper blade features a very stable sandwich construction and is completely enclosed by a sheet metal casing.
Features and benefits:
- Specialist building-based conveyor protection system.
- Space-saving.
- Sheet metal panels.
- Vertically pivoting closing direction.
- Achieves integrity and insulation.
- For continuous conveyor systems, the fixed panel is customised and the surface can be designed according to customer requirements in various designs.
- C5 durability - up to 200 000 operating cycles.
- Fire resistance: E 240, EI₁ 30, EI₁ 60, EI₁ 90 and EI₁ 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- European Technical Assessment - ETA (EU).
Generell informasjon
Farge | Red Grey Other |
Overflatebehandling | Galvanized |
Materiale | Metal |
Form | Rectangle |
Lengde | Bespoke |
Bredde | Bespoke |
Høyde | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Spesifikasjonsdata - Branngardinsystemer
Klassifiseringsdata | |
System performance | Veiledning fra produsent
|
Fire curtain | Horizontal active fire curtain barriers Veiledning for spesifikasjonsvalg:
|
Head supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
Side supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
System accessories | Veiledning fra produsentConsult manufacturer and insert requirements or omit. |
Brannmotstand | E 240, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. EI₁ 30, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. EI₁ 60, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. EI₁ 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. EI₁ 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Pivoting vertically. |
Durability Class | C5 (200 000 closing cycles). |
Operasjon | Electromotive. Veiledning fra produsentRe-opening operation. |
Dimensjoner | Veiledning for spesifikasjonsvalg: Insert requirements. Approval range:
Technical feasibility:
|
System | Continuous belt conveyor system. Continuous suspension chain conveyor system. Continuous roller conveyor system. Continuous conveyor system. Veiledning fra produsentConveyor system type. |
Supporting structure | Veiledning for spesifikasjonsvalg: Insert requirements.
|
Bærekraftsdata
Opprinnelsesland for materiale | Germany |
Produksjonsland for produktet | Germany |
Materiale | Metal |
Resirkulerbarhet | Manufacturer's standard |
Dokumentasjon

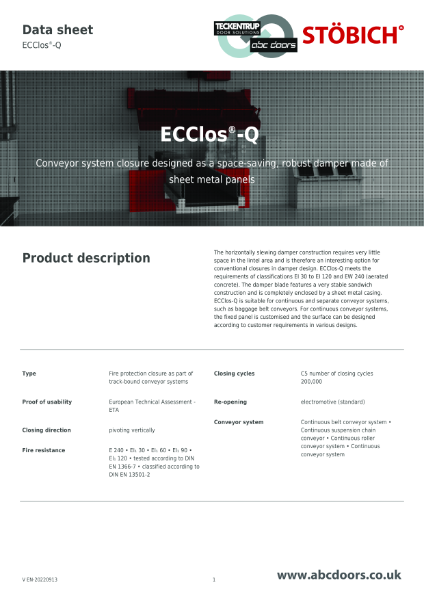

Stöbich System: ECClos®-Q (Technical Data)
