Stöbich System: BR 100 - Conveyor Fire Protection Termination
Verifisert av produsent for 6 døgn siden
Vertical
Vertical
High-speed conveyor fire protection system termination.
Applikasjon
Rail-bound conveyor system fire protection.
Beskrivelse
Conveyor system termination with fast-running function for both uninterrupted and interrupted conveyor sections.
Features and benefits:
- Specialist building-based conveyor protection system.
- Fast running function.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles (vertical) and C4 durability - up to 100 000 operating cycles (horizontal).
- Fire resistance: EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- ETA-16/0851 European Technical Assessment (BR 100 EU).
- Z-6.6-2089 General building authority approval/general type approval (BR 110 D) VKF No. 30308 VKF Recognition (BR 100 E).
Generell informasjon
Farge | Red Grey Other |
Overflatebehandling | Galvanized |
Materiale | Metal |
Form | Rectangle |
Lengde | Bespoke |
Bredde | Bespoke |
Høyde | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Spesifikasjonsdata - Branngardinsystemer
Klassifiseringsdata | |
System performance | Veiledning fra produsent
|
Fire curtain | Vertical active fire curtain barriers. |
Head supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
Side supports | Manufacturer's standard. Veiledning for spesifikasjonsvalg: Insert requirements. |
System accessories | Veiledning fra produsentConsult manufacturer and insert requirements or omit. |
Brannmotstand | EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. Bottom to top. |
Durability Class | C5 (200 000 closing cycles). |
Operasjon | Motor. Veiledning fra produsentRe-opening operation. |
Dimensjoner | Veiledning for spesifikasjonsvalg: Insert requirements.
|
System | Belt conveyor technology. Suspension chain conveyor technology. Roller conveyor technology. Veiledning fra produsentConveyor system type. |
Bærekraftsdata
Opprinnelsesland for materiale | Germany |
Produksjonsland for produktet | Germany |
Materiale | Metal |
Resirkulerbarhet | Manufacturer's standard |
Dokumentasjon

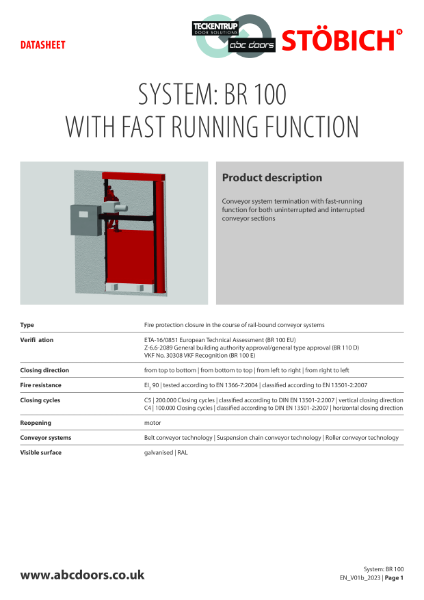

Stöbich System: BR 100 (Technical Data)
