M411 Aluminium Security Shutter
Verifisert av produsent for 1 måned siden
Double skinned insulated aluminium security roller shutter with 42 mm high slats.
Applikasjon
Windows, doors and openings in domestic and commercial uses.
Beskrivelse
Double skinned insulated aluminium security roller shutter with 42 mm high slats, for use in medium to high security domestic and commercial applications. The polyurethane foam core offers enhanced heat and sound insulation, whilst optional integrated ventilation slots enable light ingress and airflow when the shutter is lowered. The shutter can span up to 3.4 m in width and an area up to 8 m².
Generell informasjon
Farge | White Brown |
Overflatebehandling | Powder-coated |
Materiale | Aluminium |
Form | Rectangle |
Lengde | Bespoke |
Bredde | Bespoke |
Høyde | Bespoke |
Garantibeskrivelse | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Spesifikasjonsdata - Rulleporter
Klassifiseringsdata | |
Opening sizes | 3400 x 1600 mm. Veiledning fra produsentAvailable up to 3600mm height depending on width and mode |
Arrangement | Vertical, external face fix. Vertical, internal face fix. Vertical, reveal fix. |
Shutter curtain. | |
Lath material | 8.5 mm thick aluminium double skinned polyester powder-coated with polyurethane foam insulating core, 42 mm in height. Bottom slat: Extruded aluminium with brush and rubber weather seals. |
Finish and colour | Beige. Brown. Cream. Grey. Silver. White. BS. Veiledning for spesifikasjonsvalg: Insert requirements RAL. Veiledning for spesifikasjonsvalg: Insert requirements |
Frame and guides | |
Material | Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium with brush and rubber weather seals. |
Colour | Brown. Veiledning for spesifikasjonsvalg: Standard colour. White. Veiledning for spesifikasjonsvalg: Standard colour. BS. Veiledning for spesifikasjonsvalg: Insert colour requirement. RAL. Veiledning for spesifikasjonsvalg: Insert colour requirement. |
Operation | |
Mode | Electric, NRG Econom tubular motor. Electric, Somfy tubular motor. Manual, cord belt. Manual, rod and crank. Manual, spring and lock. Veiledning fra produsentElectric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | None. Crank handle. Manual override facility. Vented. Unvented. |
Slat ventilation slots | Not required. Required. |
Enclosure type | Box. Veiledning for spesifikasjonsvalg: Standard. Circular. |
Guide channels depth | 25 mm. 45 mm. 53 mm. 60 mm HD. 68 mm. |
Vekt | 4 kg/m². |
Size | 42 mm. |
Bærekraftsdata
Produksjonsland for produktet | United Kingdom |
Materiale | Aluminium |
BIM-objekter
Dette BIM-objektet er forfattet for å oppfylle kravene i
Finn ut mer om
| Plattform | Kompatibel | Versjon |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 DWG | - | 1 |
Dokumentasjon
Dokumentasjonstype
Commercial Security Shutters
Domestic Security Shutters
Insulated Security Shutters
Commercial Security Solutions

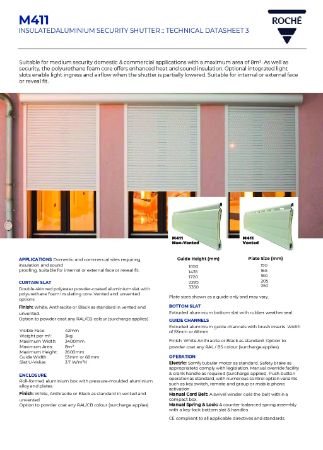

M411 Aluminium Security Shutter Datasheet
