Hygiene Performance Plus A - Acoustic Panels For Humid Areas
Verifisert av produsent i dag
M1 emission classification
Sertifikattype
EPD
Sertifikattype
Cradle to Cradle Certified
Sertifikattype
Cradle to Cradle Certified
Sertifikattype
Indoor Air Comfort – Eurofins
Sertifikattype
EPD
Sertifikattype
European Technical Approvals
Sertifikattype
Health & Safety Accreditation
Sertifikattype
Ceiling system with fully sealed tiles suitable for humid areas, which withstands advanced cleaning.
Applikasjon
Suitable for use in humid area ceiling applications.
Beskrivelse
Ecophon Hygiene Performance™ Plus A has an exposed grid with fully sealed robust Hygiene Performance™ Plus A tiles and suitable for humid areas. The ceiling withstands advanced cleaning, such as steam and high/low pressure washing on a regular basis. The surface is resistant to common detergents and disinfectants.
Features and benefits:
- Absorption class A.
- Daily dusting and vacuum cleaning. Weekly wet wiping.
- The tiles are demountable.
- High and low pressure cleaning with water and steam cleaning. Withstand use of hydrogen peroxide vapour.
- Mould and bacterial resistance to ISO 846 A and C: 0.
- Tested according to ISO 11998 (consult datasheet for chemical list).
- CE marked according to the European harmonized standard EN 13964.
Generell informasjon
Farge | White |
Overflatebehandling | Painted |
Materiale | Glass Wool |
Form | Square Rectangle |
Lengde | 600 mm 1200 mm |
Bredde | 600 mm |
Høyde | 20 mm 40 mm |
Garantibeskrivelse | Ten year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K45/13 Unit suspended ceiling system alterations K45/130 Unit-suspended ceiling system alterations K40/105 Suspended ceiling system K40/115 Unit/ modular suspended ceiling system K40/265 Infill units K45/120 Existing suspended ceiling system K45/12 Existing suspended ceiling system |
SKU Code | Hygiene Performance Plus A acoustic ceiling system |
Spesifikasjonsdata - Modulære nedhengte takssystemer
Klassifiseringsdata | |
Ceiling support | Connect T24 Main runner, Connect T24 Cross tee. |
Support fasteners | Connect Adjustable Hanger. Connect Hanger Clip. |
Ceiling units | Hygiene Performance Plus A. |
System accessories | Connect Inspection Hatch. Connect Hygiene Clip 20. Connect Hygiene Clip 40. Connect Channel Trim C3. Veiledning for spesifikasjonsvalg: For 20 mm thickness. Connect Channel Trim C3 3465. Veiledning for spesifikasjonsvalg: For 40 mm thickness. Connect Anchor Screw C4. Connect Fixing Plate C4. |
Constant humidity resistance | Class D, relative humidity 97% and 50°C, according to EN 13964. |
Indoor climate | Eurofins Indoor Air Comfort®: IAC, French VOC A+ and Finnish M1. |
Cleanroom classification | To ISO 14644 – particle cleanliness class ISO 4. To NF S 90-351 – microbiological class M1/area 4. To NF S 90-351 – particle elimination kinetics CP(0.5) 5. |
Cleaning | Dusting – daily. Wet wiping – weekly. Steam cleaning – 4x/year. Low pressure cleaning – 2x/year. High pressure cleaning – 2x/year. Hydrogen peroxide vapor. UV-C, BIFMA HCF 8.1-2019. |
Surface endurance | Product tested according to ISO 11998, and withstand 200 cycles. |
Sound absorption | Class A to BS EN ISO 11654. Veiledning for spesifikasjonsvalg: 200 mm deep system. |
Reaction to fire | A2-s1,d0. |
Size (length x width) | 600 x 600 mm. 1200 x 600 mm. |
Thickness (overall) | 20 mm. 40 mm. |
Farge | White 500, nearest NCS colour sample S 0500-N, 84% light reflectance. |
Material: | Glass wool. |
Chemical resistance | Tested according to ISO 11998 and withstands the following chemicals or disinfectants: Actichlor plus NaDCC (Sodium Dichloroisocyanurate): 1%. LifeClean Chlorine dioxide (undiluted). Ethanol: 70%. Chlorine Sodium Hypochlorite solution: 2.5%. Virkon S Dipotassium peroxodisulphate; Sulphamidic acid: 1%. Isopropanol Isopropyl Alcohol: 70%. Oxivir Excel Hydrogen peroxide: 0.5%. Sumabac D10 Quaternary ammonium compound, Sodium carbonate: 1%. Suredis VT1 n-(3-aminopropyl)-n-dodecylpropan-1,3-diamin: 1%. Enduro Chlor VE5 Potassium hydroxide: 1.5%. Aciplusfoam VF59 Nitric Acid: 5%. |
Mould and bacteria resistance | To ISO 846 method C (for bacterium), class 0 (no growth under the microscope). To ASTM D3273-16 (for fungi), class 10 (0% growth on the surface). |
Vekt | 2.5 kg/m². Veiledning for spesifikasjonsvalg: Hygiene Performance Plus A 20 mm + Connect grid system. 3.5 kg/m². Veiledning for spesifikasjonsvalg: Hygiene Performance Plus A 40 mm + Connect grid system. Veiledning fra produsentWeight information is indicative and subject to variation. |
Bærekraftsdata
Klarhet for lavkarbondesign
NBS LCA hjelper fagfolk i byggebransjen med å måle miljøpåvirkningen og identifisere produkter med lave karbonutslipp for mer bærekraftige prosjekter.
Inneholder Red List-materialer | No |
Opprinnelsesland for materiale | Sweden |
Produksjonsland for produktet | Sweden |
Materiale | Glass Wool |
| Carbon dioxide equivalent | |
Karbondioksidekvivalent, som definert i BS EN 15804 Sertifisert | |
Fase Normalisert enhet (kg CO₂ eq/kg) Deklarert enhet (kg CO₂ eq/m²) Fase:A1–A3 (Produksjonsfase) Normalisert enhet : Deklarert enhet :2.88 Verdiveiledning: A1-A3Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025/ EN 15804: 2.37kg CO₂ eq/m². | |
Resirkulerbarhet | Fully recyclable |
Resirkulert innhold | 44 % |
Forventet liv | 30 year |
Produktsertifiseringer
BIM-objekter
| Plattform | Kompatibel | Versjon |
|---|---|---|
 Revit | - | 1 |
Produktsertifiseringer
Sertifiseringstype
M1 emission classification
M1 Certificate - All Hygiene Products - Expires 16th August 2026
EPD
Connect T24 Grid system - With Precision lock Environmental Product Declaration - Expire 2026
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Indoor Air Comfort – Eurofins
Ecophon Eurofins Certificate - Hygiene - Indoor Air Comfort - Gold - January 2029
EPD
Hygiene - Environmental Product Declaration - Expire 2025
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Health & Safety Accreditation
Safety Data sheet Ecophon Acoustic Products
Dokumentasjon
Dokumentasjonstype
Ecophon Hygiene Performance Plus A
Declaration of Performance Certificate - T24 C4 Grid - May 2024
Ecophon Hygiene Range Declaration of Performance Certificate - December 2025
Hygiene Declaration of Performance Certificate - December 2025

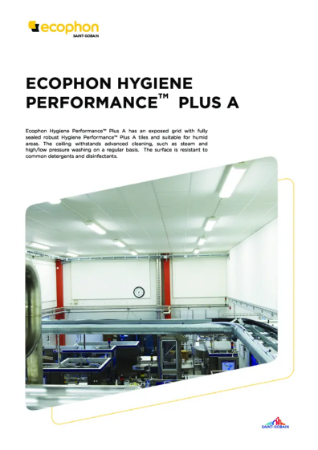

Ecophon Hygiene Range Brochure - October 2025
CPD-materialer
Acoustics in Education - Universal Acoustic Design
A Sound Effect on People - Acoustics Podcast
Designing for Dementia and Ageing
Impact of Acoustics on Hospital Care and Recovery
Office Acoustic Design with an Introduction to Psychoacoustics
Psychoacoustics in the Workplace
Room Acoustics- Connecting to Design
Nyheter
Comfort in hospital spaces
Bergsjon Health Centre
Five tips for reducing noise levels in hospitals
Bory-hospital
Technopolis-office-building
The-benefits-of-modular-acoustic-ceiling-in-the-operating-room
Sandwell-hospital
Simple fix brings relief to hospital kitchen staff
Wallyford Learning Campus

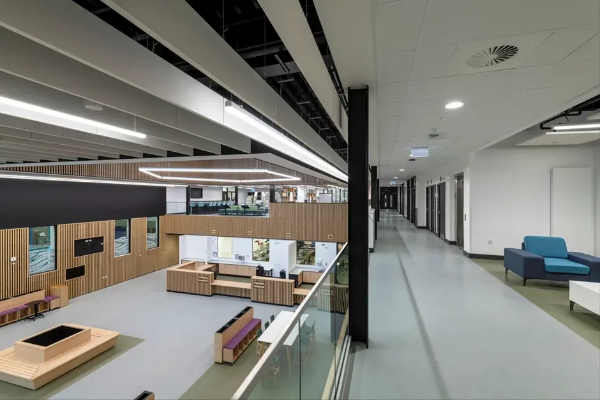

Galashiels Community Campus

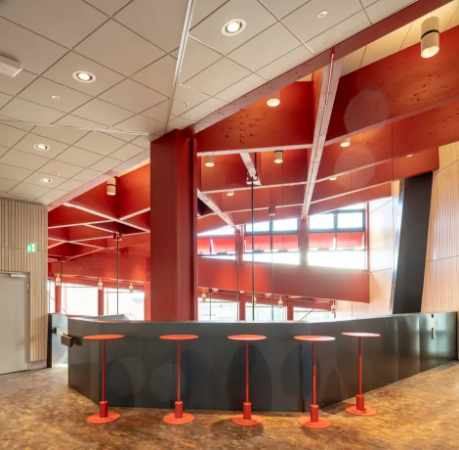

Kunskapshuset school and learning centre
