Cedral Rivendale - Fibre Cement Roof Slates
Verifisert av produsent for 4 måneder siden
A premium fibre cement roofing slate with a textured surface and dressed edges, giving an attractive appearance of a natural slate.
Applikasjon
Fibre cement roofing slates for all types of new build and refurbishment projects.
- Low pitch options to 20°.
- Best fixed roofing material with 40 fixings per m².
- Maximum design scope with various colours and fixing options.
- Suitable for both roof and facade.
Beskrivelse
Cedral Rivendale fibre cement roofing slates are designed to reflect the qualities of natural slate, with their beautifully textured surface and dressed edges. They combine the benefit of modern slate technology with the look of a natural slate.
A light-weight material, our slates contribute to eco-construction and respect the environment, allowing you to reduce the carbon footprint considerably of any build.
Features and benefits:
- A+ Green guide rating.
- Low maintenance.
- Fire performance classification A2-s1,d0 to EN 13501-1:2018.
- Low carbon footprint of 16 CO2e/m².
- Compliance with BS EN 492 and BS 5534.
- ISO 9001 and ISO 14001 certified.
Generell informasjon
Farge | Blue Veiledning for spesifikasjonsvalg: Blue Black Grey Veiledning for spesifikasjonsvalg: Cromleigh Graphite Black |
Overflatebehandling | Textured Veiledning for spesifikasjonsvalg: Textured surface and dressed edges |
Materiale | Fibre cement |
Form | Rectangle |
Lengde | 600 mm |
Bredde | 300 mm |
Høyde | 4 mm Veiledning for spesifikasjonsvalg: slate thickness |
Garantibeskrivelse | Ten year Veiledning for spesifikasjonsvalg: To qualify Rivendale slates have to be installed to Cedral specifications and pass a site check |
Uniclass | |
CAWS | H61/105 Roof slating H61/120 Vertical slating |
Spesifikasjonsdata - Fibersementskifer
Klassifiseringsdata | |
Standard | To BS EN 492. |
Mechanical resistance | Bending Moment, depending on the height h of the slates: · h ≤350 mm: 30 Nm/m. · 350 mm < h ≤ 450 mm: 40 Nm/m. · 450 mm < h ≤ 600 mm: 45 Nm/m. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Fire performance | |
External fire performance | Broof. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Reaction to fire | To EN 13501-1:2018, A2-s1,d0. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Impermeability | No water drops. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Dimensional tolerances | Length/ width: ±3 mm. Thickness: +25%/ -10% of nominal size. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Durability requirements | |
Warm water | RL ≥0.75. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Soak-dry | RL ≥0.75. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Freeze-thaw | RL ≥0.75. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Heat-rain | Pass. Veiledning for spesifikasjonsvalg: See DoP for further information. |
Shape | Rectangular. |
Colour | Blue-Black. Cromleigh Graphite. |
Size | 600 x 300 x 4 mm. 600 x 600 x 4 mm. |
Bærekraftsdata
Produksjonsland for produktet | France |
Materiale | Fibre cement |
Resirkulerbarhet | Veiledning for spesifikasjonsvalg: Recyclable |
Dokumentasjon
Dokumentasjonstype
Cedral Roofs - Asbestos Information
Cedral Roofs - Care and Maintenance
Cedral Roofs - Efflorescence Data Sheet

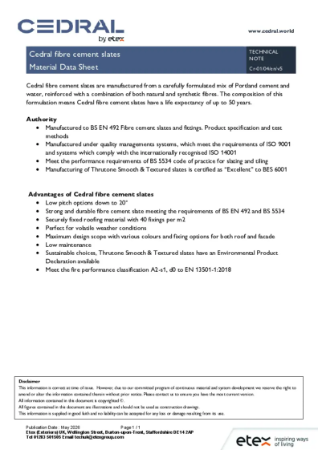

Cedral Roofs - Material Data Sheet
Cedral Roofs - Moisture Movement Data Sheet
Cedral Roofs - Repair and Replacement
Cedral Roofs - Ventilation Requirements
Cedral Roofing Brochure
Cedral Roofs Fixing Guide
