AliClad Aluminium Flow Balcony Soffit Drainage & Cladding Board - 120mm - Soffit & Cladding Solution

To satisfy your warranty and insurance provider's drainage requirements for balconies, terraces, and walkways, contact us today for project-specific calculations.

Off-the-shelf balcony soffit cladding for drainage removes a need for bespoke folded sheet metal or custom flat panels.

With the components that make up the AliClad system, cost-effective soffit drainage and aesthetic solutions are quick and easy to factor into steel balcony design, saving valuable time and labour in fabrication and removing the need for folding machines or punch tools.

AliClad Flow balcony soffit cladding is an enclosed water-management system that is Made In Britain

AliClad Flow is a modular and configurable system, designed with steel fabricators in mind. Effectively a channel drain, AliClad Flow is comprised of a range of components as follows;

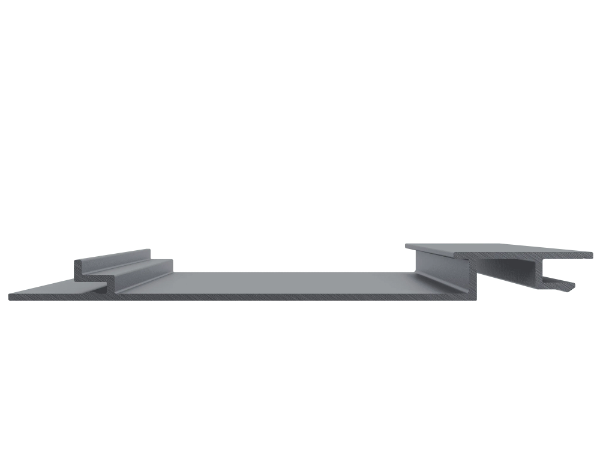

1. A flat, interlocking structural-grade aluminium soffit/fascia panel
2. An aluminium starter trim
3. A punched drip edge gutter
4. A piped gutter option
5. An extended gutter option to push water 30mm away from the edge of the balcony below as per BS5879:2020



The soffit gutter is installed around the perimeter of the balcony framework structure using standard M8 bolts and acts as a cassette to feed the linear interlocking soffit panel aluminium extrusions; once you have installed the gutters, slide the soffit extrusions into the gutter profiles along the balcony structure, seal extrusions then fix the final gutter onto the side once you have all the soffit panels in place.

If the vertical aspect of the AliClad System is required on the balcony fascia the starter trim can be used to secure the AliClad Flow panels in place, so install the starter trim and interlock the panel extrusions into it.
