1201XL Telescopic Underfloor Vent
Verifisert av produsent for 1 døgn siden
Adjustable ventilator for ground floors up to seven brick courses.
Applikasjon
To provide ventilation below suspended ground floors.
Beskrivelse
Adjustable ventilator for ground floors up to seven brick courses.
Features and benefits:
- Telescopic and adjustable for a step of 5, 6 or 7 brick courses.
- Horizontal and vertical extension accessories available.
- Free area of 8000 mm² per unit when installed without airbrick.
- Free area of 6500 mm² per unit when installed with 1201AB airbrick.
- Equivalent area of 6170 mm² per unit when installed with 1201AB airbrick.
- Special grille included to prevent entry of vermin.
- Durable, robust and totally resistant to decay.
Quality:
- Satisfies all NHBC requirements
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001
- Complies with all relevant Building Regulations
- Meets all relevant British Standards
Generell informasjon
Farge | Black |
Materiale | Polypropylene |
Form | Rectangle |
Lengde | 260 mm |
Bredde | 220 mm |
Høyde | 525 mm ProdusentveiledningThe 1201XL is adjustable and can extend from 375mm to 525mm |
Uniclass | |
CAWS | F30/15 Airbricks in external walling F30/160 Airbricks in external walling |
SKU Code | 1201XL |
Spesifikasjonsdata - Ventilasjonstein
Klassifiseringsdata | |
Standard | Meets all relevant British Standards. Veiledning for spesifikasjonsvalg: Consult manufacturer for details. |
Work sizes | 225/ 375 x 220 mm. Veiledning for spesifikasjonsvalg: As 1201 Airbrick (specified separately). |
Material | |
Colour | Black. Veiledning for spesifikasjonsvalg: Injection-moulded polypropylene (PP). |
Tilbehør | Not required. 1203 Horizontal front extension. Veiledning for spesifikasjonsvalg: Fits between the airbrick and upper front opening of the telescopic underfloor ventilator to accommodate external walls of more than 102.5 mm thickness, up to a maximum of 215 mm. 1204 Vertical extension sleeve. Veiledning for spesifikasjonsvalg: Fits between the upper and lower parts of the telescopic underfloor ventilator to accommodate a vertical step of six to seven brick courses. 1205 Duct adaptor. Veiledning for spesifikasjonsvalg: Fits on to the lower rear opening of the telescopic underfloor ventilator to allow a standard 110 mm external diameter plastic underground drainage pipe to be connected via a coupling connection. 1206 Horizontal rear extension. Veiledning for spesifikasjonsvalg: Fits into the lower rear opening of the telescopic underfloor ventilator to accommodate cavity widths of 50–150 mm, or internal walls of more than 100 mm thickness, up to a maximum of 200 mm. Veiledning fra produsentNote: Accessories can be specified separately if required. |
Bærekraftsdata
Materiale | Polypropylene |
| Carbon dioxide equivalent | |
Karbondioksidekvivalent, som definert i BS EN 15804 Egenerklært | |
Fase Normalisert enhet (kg CO₂ eq/kg) Deklarert enhet (kg CO₂ eq/kg) Fase:A1–A3 (Produksjonsfase) Normalisert enhet :0.016 (kg CO₂ eq/kg) Deklarert enhet :1.57E-02 | |
BIM-objekter
| Plattform | Kompatibel | Versjon |
|---|---|---|
 Revit | - | 1 |
Dokumentasjon

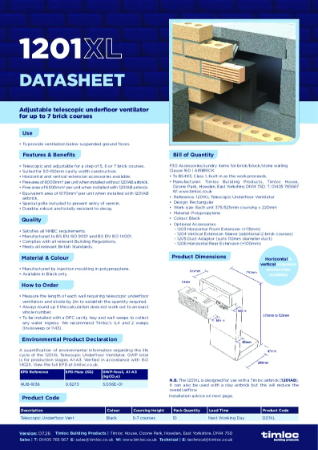

1201XL Telescopic Underfloor Ventilator Datasheet
