Wrapseal
Verified by manufacturer 1 month ago
Flexible interface membrane creating durable airtight and weathertight seals around openings in building envelopes.
Application
Used to seal around openings in building envelopes.
Description
Wrapseal is a flexible interface membrane designed to create a durable airtight and weathertight seal around windows, doors and other similar openings within the building envelope.
Features and benefits:
- Flexible and fully self adhesive construction.
- Provides a continuous seal between the opening and surrounding substrate.
- Vapour permeable and airtight, allowing moisture vapour to escape while maintaining airtightness.
- Resists water penetration.
- Compatible with Wraptite LF liquid flashing for secure sealing.
- UV resistant for up to twelve months uncovered.
- Supports high-performance building envelopes.
General information
Color | Black |
Material | Polyester |
Shape | Rectangle |
Length | 50000 mm |
Width | 200 mm 250 mm 300 mm |
Uniclass | |
CAWS | H30/30 Air and vapour control membrane P10/310 Air and vapour control layer P10/60 Air and vapour control layer H31/261 Air and vapour control membrane H31/45 Air and vapour control membrane H92/450 Air and vapour control layer H30/261 Air and vapour control membrane |
Specification data - Plastics sheets
Classification data | |
Material | Polyester. |
Purpose | Interface membrane. |
Standard | BS EN 13859-2. |
Performance characteristics | |
Tensile strength (minimum) | Before ageing: MD 490N/50 mm, CD 330N/50 mm After aging: MD 480N/50 mm, CD 310N/50 mm. |
Tear resistance | MD: 327.38 N. CD: 453.38 N. |
Fire performance | Class B-s2,d0. |
UV stabilization | 12 months (Climate: Central Europe). |
Form | Non-woven. |
Physical properties | |
Colour | Black. |
Weight (minimum) | 392 g/m² (including liner). |
Dimensions | |
Thickness (minimum) | 0.38 mm. |
Width (minimum) | 200 mm. 250 mm. 300 mm. |
Roll length (minimum) | 50 m. |
Water penetration | Class W1 (before and after ageing). |
Water vapour permeability | Sd 0.06m |
Resistance to air penetration | <0.01 m³/(m².h.50Pa). |
Sustainability data
Material | Polyester |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type

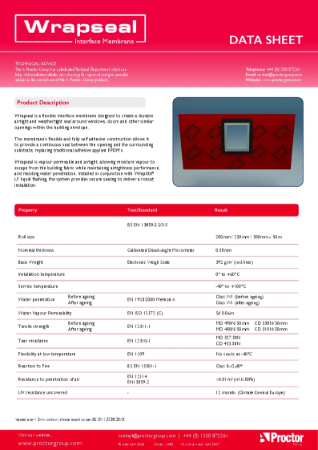

Wrapseal - Data Sheet

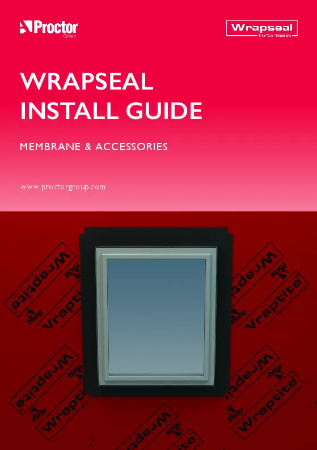

Wrapseal - Installation Guide
