Visqueen Self Adhesive Membrane (SAM) - Self-Adhesive Waterproofing Membrane

Name: Visqueen Self Adhesive Membrane (SAM) - Self-Adhesive Waterproofing Membrane
Brand: Visqueen
SKU: hMsY87mcPyqYMieGWRtcvg

Verified by manufacturer 21 days ago

Visqueen

Product certifications:

BBA Agrément Certificate
Certificate type
DoP
Certificate type
DoP
Certificate type

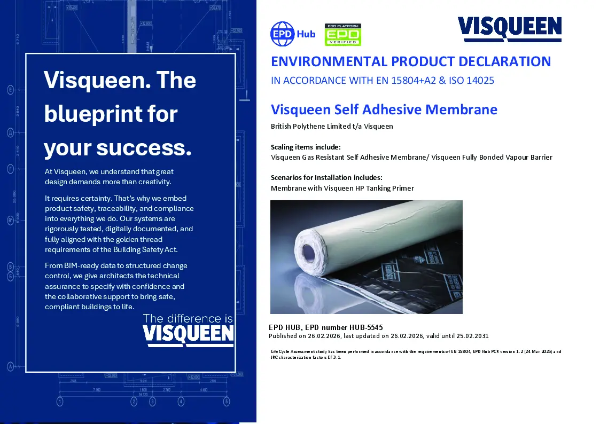

EPD
Certificate type

Self-adhesive waterproofing membrane.

Jump to:

BOS

+44 (0) 333 202 6800 Website

Application

Visqueen Self Adhesive Membrane is a cold applied product, suitable for use as a Type A Barrier Membrane (Tanking Membrane) for above and below ground applications e.g. basements, retaining walls and lift pits.

The membrane can be applied to a variety of substrates including concrete, flush pointed blockwork, flush pointed brickwork, particle boards and steelwork, in both vertical and horizontal applications.

The membrane can be used to achieve one form of waterproofing to Grades 1, 2 and 3 as defined in BS 8102:2022.

Description

A self-adhesive waterproofing system.

Features and benefits:

BBA certified - third party accreditation.
Type A Barrier Membrane (Tanking Membrane) - resistant to ground water in accordance with BS 8102:2022.
Flexible - easy to detail and install on site.
Multi-functional - also acts as a radon and damp proof membrane.
Self-adhesive application - no jointing tapes required.

General information

Color	Black Grey
Finish	Smooth
Material	Polyethylene
Shape	Rectangle
Length	20000 mm
Width	1000 mm
Height	1.5 mm Guidance for specification option: Thickness.
Warranty description	Guidance for specification option: Refer to BBA Certificate.

Uniclass	Pr_25_57_08_08 Bitumen sheetsPrimary
CAWS	J40/190 Self-adhesive bitumen damp proofing/ tanking J40/40 Self-adhesive bitumen membranes

SKU Code	10067473

Specification data - Bitumen sheets

Classification data
Standard	To BS EN 13969, Type A. Guidance for specification option: Suitable for use as a Type A Barrier Membrane (Tanking Membrane) to BS 8102:2022. Conforms to the specification requirements of BR 211:2023.
Third-party certification	BBA Certificate 15/5208 Product Sheet 1. UKCA UKNI CE to EN 13969:2004.
Performance characteristics	Watertightness to 60kPa for 24 hours (A) to EN 1928: Pass. Durability after artificial ageing to EN1296 then EN 1928: Pass. Resistance to tearing (nail shank) MD/CD to EN 12310-1: 135 N. Water vapour transmission to EN 193: 90 000. Resistance to static loading - Concrete (A) to EN 12730: 10 kg. Resistance to static loading - EPS (B) to EN 12730: 15 kg. Resistance to impact - Hard surface (A) to EN 12691: 500 mm. Resistance to impact - Soft surface (B) to EN 12691: 500 mm. Shear resistance of joints to EN 12317: 350 N/50mm. Tensile strength MD to EN 12311: 215 N/50mm. Tensile strength CD to EN 12311: 220 N/50mm. Elongation at maximum load MD to EN 12311: 310%. Elongation at maximum load CD to EN 12311: 340%. Flexibility at low temperature to EN 1109: -30ºC. Radon permeability (SP Method): 5.7x10¯¹² m²/s. Reaction to Fire to EN 13501-1: Class E.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Manufacturer's standard.
Form	Damp-proof membrane.
Material	-
Carrier material	High-density polyethylene (HDPE).
Bitumen modification	Polymeric.
Weight (minimum)	1.65 kg/m².
Thickness (minimum)	1.5 mm. Guidance for specification option: To EN 1849-2.
Surface finishes	-
Top	Smooth.
Underside	Self-adhesive backing. Guidance for specification option: Protected by a removable release film.
Accessories	Visqueen HP Tanking Primer, 5 L. Visqueen Pile Cap Sealer, 25 kg. Visqueen Top Hat Units. Visqueen TreadGUARD 1500, 1 x 2 m. Visqueen IGW5 and IGW10 Waterstops. Manufacturer guidance Consult manufacturer's literature for details. Many options are available to specify separately.
Colours	Dark grey upper surface with black self-adhesive coating.
Roll size	20 x 1 m. Guidance for specification option: To EN 1848-2.

Sustainability data

Country of material origin	Italy
Country of product manufacture	Italy
Material	Polyethylene
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : 0.715 (kg CO₂ eq/kg) Declared unit : 1.18
