Visqueen High Performance Urban Drainage Geomembrane (HP UDG)

Name: Visqueen High Performance Urban Drainage Geomembrane (HP UDG)
Brand: Visqueen
SKU: vaywdUPuKcVCnYdDYa3r99

Verified by manufacturer 1 month ago

Visqueen

Product certifications:

EPD
Certificate type

A multi-functional high performance geo-membrane.

Jump to:

BOS

+44 (0) 333 202 6800 Website

Application

Suitable for a variety of geo-membrane applications.

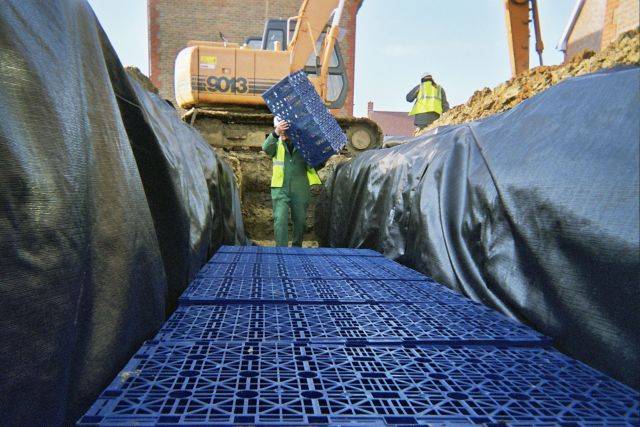

Used in the wrapping of underground storm water attenuation crates in heavy duty situations (high water table).

Description

A black, robust thermoplastic geo-membrane, 1 mm thick and supplied in single wound rolls (not folded).

Features and benefits:

Multi-functional geomembrane for demanding situations.
Resistant to on site damage and puncture under high compressive loads.
Easy to detail and install on site.
Dual jointing methods - lap joints can be taped or heat welded.

General information

Color	Black
Finish	Smooth
Material	Polyethylene
Shape	Rectangle
Length	50000 mm
Width	1400 mm
Warranty description	Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information.

Uniclass	Pr_25_57_65_60 Plastics sheetsPrimary Pr_25_57_51_66 Polymeric membranes
CAWS	J44/110 Geomembrane lining J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane

Specification data - Plastics sheets

Classification data
Product reference	Visqueen High Performance Urban Drainage System (UDG).
Material	Polypropylene.
Purpose	Water resistance.
Standard	Conforms to the SUDS specification requirements of Appendix C of CIRIA C697 and C753. Suitable for use as an impermeable membrane in a permeable paving systems to BS 7533-13:2009 (System C - no infiltration).
Performance characteristics	-
Tensile strength (minimum)	To BS EN 12311, MD: 25 N/mm²; CD: 20 N/50mm.
Tear resistance	To BS EN 12310-1, nail tear MD: 705 N; CD: 745 N.
Elongation to break	To BS EN 12311, tensile elongation MD: 799%; CD: 848%.
Water vapour resistance (minimum)	1171 MN·s/g. Guidance for specification option: To BS EN 1931.
Fire performance	Reaction to fire to BS EN 13501-1, Class F.
Form	Loose laid sheet.
Physical properties	-
Colour	Black.
Weight (minimum)	974 g/m². Guidance for specification option: To BS EN 1849-2.
Dimensions	-
Thickness (minimum)	1 mm. Guidance for specification option: To BS EN 1849-2.
Width (minimum)	1.4 m. Guidance for specification option: To BS EN 1848-2.
Roll length (minimum)	50 m. Guidance for specification option: To BS EN 1848-2.
Accessories	VisqueenPro Detailing Strip, 300 mm x 10 m. Visqueen Top Hat Units. Visqueen TreadGUARD 300, 2 x 75 m. Visqueen 100mm Double Sided Butyl Tape, 100 mm x 15 m. Visqueen NF-Detailing Strip, 300 mm x 10 m. Visqueen NF-150 Lap Tape, 150 mm x 10 m.
Joint strength	To BS EN 12317-2, 515 N.
Watertightness	To BS EN 1928 to 60kPa for 24 hours, Pass.
Impact resistance	To BS EN 12691, 600 mm.
Water vapour permeability	To BS EN 1932, 0.11 g/m²/day.
Static load resistance	To BS EN 12730, -20 kg.
Durability	To BS EN 1296, heat ageing: Pass. To BS EN 1847, chemical resistance: Pass.
Chemical resistance	To BS EN 14414-A, acids: Pass. To BS EN 14414-B, alkalis: Pass. To BS EN 14414-C, organic solvents: Pass. To BS EN 14414, visual defects: Pass.
Technical characteristics, other	To BS EN 14415-A, hot water: Pass. To BS EN 14415-B, aqueous alkaline liquids: Pass. To BS EN 14415-C, organic alcohols: Pass. To BS EN 14415, visual defects: Pass.
Application temperature	The manufacturer recommends that Visqueen High Performance Urban Drainage Geomembrane and all associated system components should not be installed below 5°C.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polyethylene
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0.455 Lower emissions
Recyclability	100%
