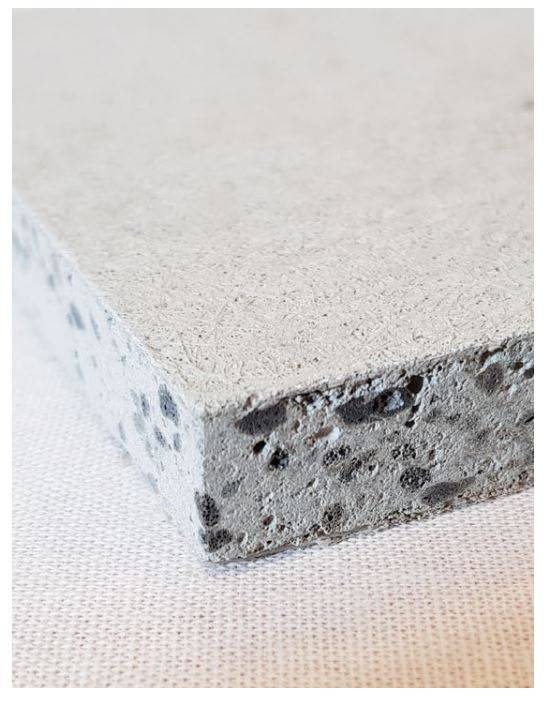

VERSAREND® Fibre Cement Direct Render Carrier Board / Euroform - Direct Render Carrier Board
Verified by manufacturer 1 day ago
CCPI Product
Certificate type
A1 non-combustible exterior grade fibre cement direct render carrier board for compatible thin coat render systems.
Application
VERSAREND® is suitable for use as an exterior grade direct render carrier board within compatible thin coat render systems.
It is intended for external wall applications where a fibre cement carrier board is required to support a direct render finish as part of a suitable system build-up.
Typical applications include:
- external render carrier board applications
- thin coat render systems
- exterior wall build-ups
- façade and building envelope applications
- projects requiring an A1 non-combustible fibre cement board
- applications where workability, cutting and installation speed are important
- specification of compatible render carrier board systems through NBS
VERSAREND® has been compatibility tested with selected render manufacturers and systems. Suitable as an exterior grade direct render carrier board behind the following render base coats:
K Rend HPX.
K Rend HP12.
K Rend HP14.
Kilsaran KPRO - Superbond.
Kilsaran QP10 Primer.
Kilsaran SR.
Kilsaran SSR.
Parex Maite Basecoat.
PRB Fondisol F Basecoat.
Mapei ARI GG Basecoat.
Licata RasoTop 800 Base.
Licata RasoTop BIO.
Project-specific suitability should be confirmed with the relevant render system manufacturer before specification, procurement or installation.
In all instances, Euroform strongly recommends that the manufacturer of the proposed render system is consulted to check compatibility and any specific product application details.
Where VERSAREND® is being considered for a project, specifiers should review the full system build-up, render compatibility, fixing requirements, substrate, movement, ventilation, cavity requirements, exposure conditions and any relevant project-specific fire, façade or building envelope requirements.
Description
VERSAREND® is an A1 non-combustible exterior grade fibre cement direct render carrier board, designed for use with compatible thin coat render systems in external wall applications.
Manufactured from Ordinary Portland Cement and reinforced with a specialist matrix, VERSAREND® combines the durability and fire performance associated with fibre cement boards with improved workability, handling and installation speed.
The board is manufactured in 12.5 mm thickness and features mesh reinforcing facings, with tapered long edges on the outer face. This supports direct render applications where a stable, robust and workable carrier board is required as part of a tested render system build-up.
VERSAREND® is a lightweight score-and-snap building board, allowing it to be cut using a utility knife and fixed with recommended screws. This helps reduce complexity on site when compared with heavier or harder-to-cut traditional fibre cement boards.
The product has been compatibility tested with a number of thin coat render system base coats, listed under ‘render base coats’ within NBS Specification. This helps architects, specifiers and contractors identify compatible base coat options when developing external render specifications.
VERSAREND® is conformity assessed in accordance with BS EN 12467:2012+A2:2018 Fibre-cement flat sheets and achieves Reaction to Fire Euroclass A1 to BS
BS EN 13501-1:2018.
Key features and benefits include:
- A1 non-combustible direct render carrier board.
- Exterior grade fibre cement board for render applications.
- Compatible with thin coat render systems
- Manufactured using Ordinary Portland Cement and a reinforcing matrix.
- Mesh reinforcing facings.
- 12.5 mm board thickness.
- Tapered on the two long edges of the outer face.
- Lightweight score-and-snap board for easier cutting and handling.
- Can be cut with a utility knife.
- Can be fixed using recommended screws.
- Conformity assessed to BS EN 12467:2012+A2:2018.
- Reaction to fire: Euroclass A1 to BS EN 13501-1:2018.
- Compatibility tested with a number of render base coats listed within NBS Specification.
VERSAREND® is suitable for project teams looking for an exterior grade fibre cement render carrier board that combines non-combustibility, practical installation and tested compatibility with selected render base coat systems.
General information
Color | Grey |
Material | Fibre cement |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Height | 12.5 mm |
Uniclass | |
CAWS | K11/890 Board K11/795 Wall lining on metal framing H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) K11/485 Wall sheathing |
Specification data - Fibre-reinforced cement boards
Classification data | |
Fire rating | To EN 13501-1, Euroclass A1. |
Bending strength | ≥ 4 MPa. |
Sheet size | |
Nominal thickness | 12.5 mm. |
Length | 2400 mm. |
Width | 1200 mm. |
Edges | Tapered on the two long edges. |
Finish as delivered | Uncoated. |
Colour | Grey. |
Render base coat | K Rend HPX. K Rend HP12. K Rend HP14. Kilsaran KPRO - Superbond. Kilsaran QP10 Primer. Kilsaran SR. Kilsaran SSR. Parex Maite Basecoat. PRB Fondisol F Basecoat. Mapei ARI GG Basecoat. Licata RasoTop 800 Base. Licata RasoTop BIO. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Portugal |
Country of product manufacture | Portugal |
Material | Fibre cement |
Recyclability | No current recycling methods available. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
CCPI Product
CCPI Assessment - PS A - Easyboard, Versarend and Versaroc
