Tessera Outline - Tufted carpet tile

Name: Tessera Outline - Tufted carpet tile
Brand: Forbo Flooring Systems
SKU: sw8sPhywscmM36rm9krxqz

Verified by manufacturer 19 days ago

Forbo Flooring Systems

Product certifications:

EPD
Certificate type
Certificate of Conformity
Certificate type

Tessera Outline introduces a subtle striped design, with each colourway paired to two Layout shades. Together, Layout and Outline make it easy to create engaging, harmonious working environments.

Jump to:

BOS

+44 (0)800 093 5258 Website

Application

For internal use in all busy commercial and public sector locations.

Description

Subtly textured, tufted, striped, low loop pile carpet tile.

Features and benefits:

Made with 100% renewable energy.
Also available in SOFTbac® secondary backing.
Manufactured from 100% solution dyed polyamide
Combine with Tessera Layout to allow complete freedom of expression when creating connections, highlights and transitions, enhancing any style of scheme.

Method of laying:

Brick, tessellated, quarter turn or quarter brick.

Adhesive:

542 Eurofix Tack Plus solvent free release system.

General information

Color	Black Brown Grey
Finish	Tufted
Material	Nylon
Shape	Square
Length	500 mm
Width	500 mm
Height	6.1 mm
Warranty description	Ten year Manufacturer guidance Standard backing: 10 years; SOFTbac® backing: 15 years

Uniclass	Pr_35_57_11_62 Pile carpet tilesPrimary
CAWS	M50/130 Carpet tiling M50/15 Carpet tiling

Product range	Tessera Carpet Tiles

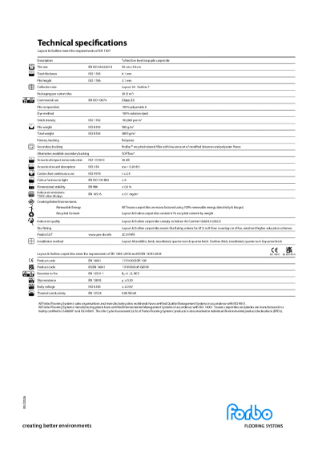

Specification data - Pile carpet tiles

Classification data
Product reference	Tessera Outline.
Style	Tufted low loop pile carpet tile.
Material	100% solution dyed polyamide 6.
Classification	-
Standard	To BS EN 1307 and 14041.
Level of use class	Class 33.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	61% by weight.
Size	500 x 500 mm.
Colour and pattern	3100 Plasmatron. 3101 Colabottle. 3102 Soda. 3104 Souffle. 3110 Calico. 3111 Peapod. 3112 Jetty.
Total thickness	6.1 mm ±10%.
Pile composition	100% polyamide 6.
Dye method	100% solution dyed.
Stitch density	193 060 per m² ±10%.
Pile weight after shearing	580 g/m² ±10%.
Total weight	3895 gsm ±10%.
Castor chair use (to BS EN 985)	Minimum R value: ≥2.4.
Light fastness (to BS EN ISO 105 B02)	≥6.
Dimensional stability (to BS EN 986)	≤0.2%.
Impact sound reduction	26 dB.
Ska Rating	Create Outline meets Ska Rating Criteria for M12 soft floor coverings in both office, retail schemes and higher education.
Reaction to fire (to EN 13501-1)	BfI-s1.
Slip resistance (to EN 13893)	DS: ≥0.30.
Static dissipative (to BS ISO 10965)	<1 x 10^9 Ω.
Body Voltage (to EN 1815)	Pass (<2 kV).
Pile height above backing	3.1 mm ±0.5 mm.
Primary backing	Polyester/ nylon.
Secondary backing	Modified bitumen and polyester fleece- standard. SOFTbac®.
Adhesive	Not required. Eurocol 542 Eurofix Tack Plus solvent free release system. IOBAC MagTabs® adhesive free installation system.
Edging	Not required. As per 740.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Nylon
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 3.48 Lower emissions
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	61 % Guidance for specification option: By weight.
