Steel Door - Personnel with Louvre - Steel Door with Vented Airflow

Name: Steel Door - Personnel with Louvre - Steel Door with Vented Airflow
Brand: Strongdor Limited
SKU: 3xB9N3hY72GLDWXcrA3ikj

Verified by manufacturer 17 days ago

Single Door

Strongdor Limited

Product certifications:

dhf certificate
Certificate type
EPD
Certificate type

Bespoke steel personnel door with louvred panels designed to protect and ventilate, ideal for storage facilities and underground facilities such as car parks and subways.

Jump to:

BOS

+44 (0)1524 958990 Website

Application

Suitable for internal and external use, these doors can be used in areas that need consistent, high levels of ventilation, including plant and boiler rooms, computer rooms, store rooms, manufacturing and leisure facilities.

Other applications of these bespoke doors could include:

· Retail facilities

· Sports Centre Facilities

· Factory Facilities

· Workshops

· Bin Stores

· Storage Facilities

· Entertainment complexes

· Stadium Doors

· Train Stations

· Military Base

· Underground Bunkers

· Subway maintenance areas

· Back of house doors

· Hospitality venues

*Always be sure to check building regulations and legislation for compliance with relevant laws and restrictions on door-set placement.

Description

Steeldor louvred single and double-personnel doorsets are designed for internal and external use to enable entry and exit. These ventilated doors are particularly suitable for areas that need consistent, high levels of airflow. This may include external doors, which conceal electrical and heating systems, and require adequate ventilation to prevent humidity and condensation build-up.

Steel Doosets for Durable Industrial Solutions

With many industrial plants requiring security and fire ratings, Steeldor with louvred panels can provide ideal solutions for industrial doorsets. Choosing a bespoke steel doorset with louvres could even be essential for fire regulations. A fire-rated doorset with louvres can offer fire compartmentalised options for a project.

Louvre Panels for Steel Doorsets

Louvred panels are available in a variety of sizes, from half-panel to full-panel. Alternatively, you could choose to increase airflow management with over-panels and side panels. This helps to ensure effective moisture control and is suitable for applications such as data centre doors, plant rooms and gym facility doors.

Features and benefits:

Available in single, double and door and a half configurations.
Individually built to order and constructed.
Choice of hardware, frame and threshold.
Protect and ventilate.
Louvred side and over panels are available, including removable and hinged solutions.
Blades pitched at 35.8° from the vertical.
Reduced airflow (PAS 24 version).
150 RAL colours as standard.
Easy to install.
Manufactured from corrosion resistant, high-tensile steel.
One year warranty.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Guidance for specification option: Available in 150 RAL colours as standard. Show more
Finish	Powder-coated
Material	Steel
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_52 Carbon steel doorsetsPrimary
CAWS	L20/55 Doorsets L20/480 Doorsets

Specification data - Carbon steel doorsets

Classification data
Configuration	Single-leaf, single-action.
Doorset size	Guidance for specification option: Insert requirements. Maximum height: up to 2960 mm. Maximum width: up to 1400 mm. Large bespoke sizes are available on request; consult manufacturer for details.
Performance	-
Fire resistance	Guidance for specification option: Up to E 120; consult manufacturer for details and insert requirements.
Strength and durability	Up to BS EN 1192, Class 2.
Thermal	U-value: 4.9 W/m²K.
Intruder resistance	-
Minimum requirement	Not required. To PAS 24. Guidance for specification option: For PAS 24 sizing restrictions please refer to PAS 24 Louvred product. To LPS 1175: B3 (SR2). Guidance for specification option: Consult manufacturer for details.
Application	Inward opening. Outward opening.
Frame	-
Material	Steel. Guidance for specification option: Lightweight, high tensile 1.5-mm thick Rustec steel. Adjust 2-Fit side expander system (offers up to 12 mm expansion to the structural opening). Manufacturer guidance See also Door frame profile below for further options.
Threshold	Industrial door threshold - 96 mm. Guidance for specification option: Standard aluminium threshold. Part M compliant. Fitted with neoprene seal for outward opening doorsets. AM3 inward opening threshold. Guidance for specification option: Available on request. AM5 outward opening threshold. Guidance for specification option: Available on request.
Perimeter seals or inserts	Self-adhesive T-Fin Seal.
Finish	-
Coating	Powder-coated. Marine grade, powder-coated.
Texture	30% gloss finish.
Colour	RAL colour. Guidance for specification option: Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available. Insert requirements.
Installation fasteners	Masonry screws. Timber screws. Concrete screws. Steel screws. Manufacturer guidance To suit substrate.
Frame accessories	Expandable sides. Not required.
Door leaf	-
Thickness	44 mm. Guidance for specification option: Fitted with an integrated astragal for added security.
Core	Hexatex core. Guidance for specification option: Standard.
Panel details	Louvred panel. Guidance for specification option: Louvre panels up to 610 x 1524 mm. Fully and split louvred panels available. Consult manufacturer and insert requirements. Integrated astragal. No astragal.
Material	Steel. Guidance for specification option: 2 x 1.2 mm Rustec steel sheets. The leaf skins are mechanically interlocked and internally bonded, providing greater stability and protection against de-lamination.
Glazing	-
Type	Not required. Vision panels. Guidance for specification option: Up to 610 x 1524 mm; insert requirements.
Finish	-
Coating	Powder-coated. Marine grade, powder-coated.
Texture	30% gloss.
External colour	RAL colour. Guidance for specification option: Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available. Insert requirements.
Internal colour	As External.
Door accessories	Not required. Hinged over panels. Rectangle polished steel knocker. Rectangle black lacquer knocker. Square escutcheon. Square pull handle. Side panel multiple letter box.
Hardware	Grade 13 stainless steel, twin bearing template drilled butt hinges with integral high security dog bolts. Guidance for specification option: Fitted as standard with CE marking. Briton 5420 sashlock. Stainless steel lever handles. Trimec V-lock. Dorma Maglock. Dorma TS83. TS93 closer. Stainless steel pull handles. Stainless steel push plate. Stainless steel kick plates. Other. Guidance for specification option: Other hardware available; consult manufacturer for details and insert requirements. Micro flex bolt. Dorma simplex unican code lock. Dorma TS73 closer. EL520. Dorma ED100 door operator. Fire-rated codelock with sashlock.
Accessories	Not required. Fire-rated intruder alarm door contact.
Locking	Manual. Guidance for specification option: Consult manufacturer for details and insert requirements. Electric. Guidance for specification option: Consult manufacturer for details and insert requirements. Dormakaba SVP6000. Consort escape sashlock.

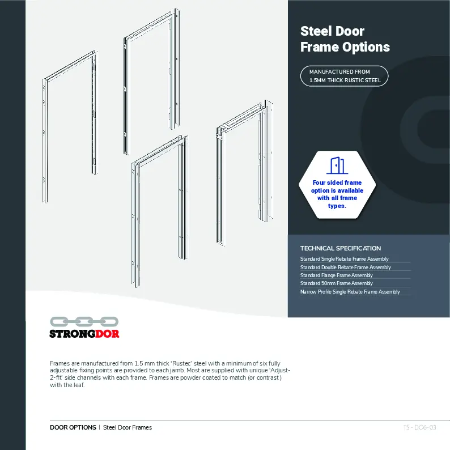

Door frame profile	Guidance for specification option: Consult manufacturer for options and insert requirements.
