Solo™ Matrix acoustic ceilings and rafts - Acoustic raft
Verified by manufacturer 1 day ago
M501 - Grid
M501 - Grid
EPD
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
HPDC Certification
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
ISO 14021:2016
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type
Demountable suspended acoustic ceiling system with built-in hatch function.
Application
Suitable for larger areas where high coverage is required, but a wall to wall solution is not possible.
Description
Demountable suspended ceiling system with built-in hatch function.
Features and benefits:
- Easy, high accuracy installation.
- Range of design possibilities available.
- Each panel has a built in hatch function, and can easily be demounted from below.
- The panels can withstand small loads with largest aperture diameter of 100 mm (the load is restricted to maximum 250 g between two panel cross bars).
- CE marked according to EN 13964: 2014.
To be installed as per manufacturer's recommendations.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidance22 standard colours to choose from & special colours available |
Finish | Painted |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
Shape | Rectangle Square |
Length | 600 mm 1200 mm 2400 mm |
Width | 1040 mm 1200 mm 2400 mm |
Height | 40 mm |
Warranty description | Ten year Guidance for specification option: All Ecophon installations can be warranted for ten years. 50 year Guidance for specification option: Design life. |
Uniclass | |
CAWS | K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K45/12 Existing suspended ceiling system K40/10 Unit/ modular suspended ceilings K45/160 Board-suspended ceiling system alterations K45/120 Existing suspended ceiling system |
SKU Code | M501 |
Specification data - Modular suspended ceiling systems
Classification data | |
Ceiling support | Ecophon Connect T24 Main runner C1, black 01 (matt). Ecophon Connect T24 Main runner C1, white 01. |
Support fasteners | Ecophon Connect Nonius Hangers. |
Ceiling units | High-density glass wool tiles. |
Tile size | 600 x 1200 mm. 600 x 2400 mm. 1200 x 1200 mm. 2400 x 1200 mm. |
Tile thickness | 40 mm. |
Colour | White Frost. Guidance for specification option: Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N, 4% light reflectance. Basalt Rock. Guidance for specification option: Nearest NCS colour sample S 8005-B20G, 7% light reflectance. Deep Sea. Guidance for specification option: Nearest NCS colour sample S 7010-R90B, 10% light reflectance. Pine Green. Guidance for specification option: Nearest NCS colour sample S 7010-B90G, 11% light reflectance. Dark Chestnut. Guidance for specification option: Nearest NCS colour sample S 7010-Y90R, 10% light reflectance. Silk Slate. Guidance for specification option: Nearest NCS colour sample 7000-N, 13% light reflectance. Silver Stone. Guidance for specification option: Nearest NCS colour sample S 4502-Y, 29% light reflectance. Spring Leaf. Guidance for specification option: Nearest NCS colour sample S 4010-G50Y, 30% light reflectance. Wet Sand. Guidance for specification option: Nearest NCS colour sample: S 3020-Y30R, light reflectance: 34%. Silent Steam. Guidance for specification option: Nearest NCS colour sample S 2010-B, 50% light reflectance. Sage Mist. Guidance for specification option: Nearest NCS Colour S 2005-G50Y, 52% light reflectance. Volcanic Ash. Guidance for specification option: Nearest NCS colour sample 2002-Y, 55% light reflectance. Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N, 64% light reflectance. Morning Rain. Guidance for specification option: Nearest NCS colour sample S 1002-B, 70% light reflectance. Scallop Shells. Guidance for specification option: Nearest NCS colour sample S 0804-Y50R, 75% light reflectance. Moonlight Sky. Guidance for specification option: Nearest NCS colour sample S 7020-R90B, 7% light reflectance. Ocean Storm. Guidance for specification option: Nearest NCS colour sample S 4020-R90B, 24% light reflectance. Highland Fog. Guidance for specification option: Nearest NCS colour sample S 2005-G, 55% light reflectance. Sunset Heat. Guidance for specification option: Nearest NCS colour sample S 2070-Y60R, 20% light reflectance. Peach Rose. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. Sage Garden. Guidance for specification option: Nearest NCS colour sample S 3010-B30G. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Summer Forest. Guidance for specification option: Nearest NCS colour sample S 6030-G10Y. Golden Field. Guidance for specification option: Nearest NCS colour sample S 1040-G90Y, 61% light reflectance. Ruby Rock. Guidance for specification option: Nearest NCS colour sample S 4050-R10B, 7% light reflectance. Fresh Clover. Guidance for specification option: Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%. |
Indoor climate | Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials - M1. |
Moisture resistance | Class C, relative humidity 95% and 30°C, according to EN 13964:2014. |
Fire safety | Complies with BS EN 13501-1, Class A2-s1, d0. |
Äänenabsorptio | In accordance with EN ISO 11654. Class A. |
Cleaning | The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping. |
Installation | M501 - Grid. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 7.25 Value guidance: A1-A3Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025 / EN 15804. See Environmental Product Declaration Certificate. | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 62 % |
Expected Life | 50 year |
Product certifications
Solo - Environmental Product Declaration - Expire 2025 Connect T24 Grid system - With Precision lock Environmental Product Declaration - Expire 2026 Connect T24 Grid system C4 - Environmental Product Declaration - Expire 2026 Connect T24 Grid system C3 - Environmental Product Declaration - Expire 2026 Ecophon Certificate of Recycled Content of products - September 2022
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
Product certifications
Certification type
EPD
Solo - Environmental Product Declaration - Expire 2025
Indoor Air Comfort – Eurofins
Ecophon Eurofins Certificate - Solo - Indoor Air Comfort - Plant - 29th January 2029
HPDC Certification
Ecophon Solo Health Product Declaration Certificate
EPD
Connect T24 Grid system - With Precision lock Environmental Product Declaration - Expire 2026
EPD
Connect T24 Grid system C4 - Environmental Product Declaration - Expire 2026
EPD
Connect T24 Grid system C3 - Environmental Product Declaration - Expire 2026
EPD
Ecophon Certificate of Recycled Content of products - September 2022
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
ISO 14021:2016
bsi ISO 14001:2015
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Health & Safety Accreditation
Safety Data sheet Ecophon Acoustic Products
Literature
Literature type

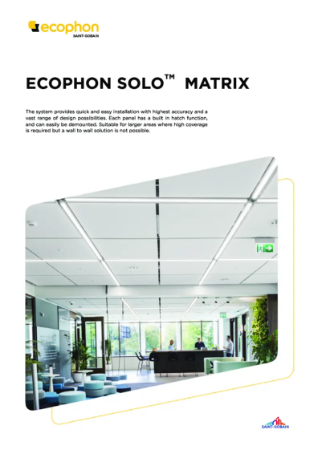

Data Sheet - Solo Matrix
Ecophon Solo Health Product Declaration Certificate
Solo Declaration of Performance Certificate November 2025
Declaration of Performance - C010_2023-01-25 incl. UKCA_toc
CPD materials
Acoustic Design for International Projects
Acoustics in Education - Universal Acoustic Design
A Sound Effect on People - Acoustics Podcast
Designing for Dementia and Ageing
Impact of Acoustics on Hospital Care and Recovery
Office Acoustic Design with an Introduction to Psychoacoustics
Psychoacoustics in the Workplace
Case studies
The-sustainable-energy-Laboratory-Queens-University-Belfast
Deloitte Churchill Square

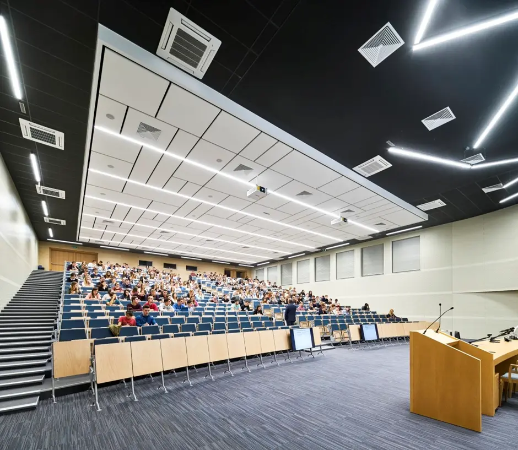

University of Lodz

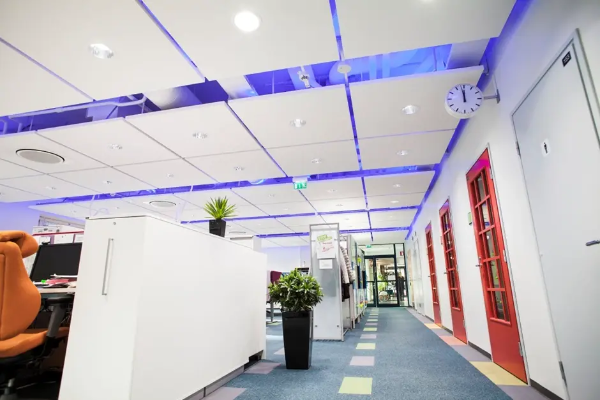

Finnish Institute of Occupational Health
