SkyDavit Arm
Verified by manufacturer 13 days ago
Removable davit arm for the suspension of a person or a RopeClimber.
Application
- Façade access
- Rope access
- Glass replacement operations
Description
The SkyDavit is a modular and high-performance suspension system designed for rope access, façade maintenance, and suspended equipment operations.
Installed on roofs, parapets, or structural elements, it enables safe and efficient access using rope access technicians, RopeClimber hoists, or glass replacement units.
Its fully removable and interchangeable configuration ensures maximum flexibility across multiple base installations, making it ideal for complex architectural environments.
Standards
EN 1808:2015 | EN 795:2012 | BS 8610:2017
Features and Benefits
- Adjustable height: 1000 mm – 2000 mm (custom mast configurations available)
- Outreach options: 1600 mm or 2300 mm
- 360° rotation for full operational coverage
- Lightweight, modular aluminium design for easy handling and transport
- Dismountable system allows installation and relocation by one or two operators
- Innovative tilting adapter system for safer and easier setup
- Integrated multiple anchor points for rope access and rescue operations
- Ropes are redirected internally toward the base for controlled operation
- Compatible with rope access technicians, RopeClimber systems, and GRU units
- Designed load: 21 kN
- Available with custom configurations tailored to project requirements
Components
SkyDavit Assembly
Composed of:
- Outreach arm (1600 mm or 2300 mm)
- Mast (standard 1700 mm or custom 1000–2000 mm)
- Adapter (floor or wall mounted)
- Optional brace (required for 2300 mm arm)
- Optional riser (to increase height up to +1000 mm)
Fully modular system with interchangeable components to adapt to different site constraints.
Outreach Options
1600 mm Arm
- Lightweight and optimized for single-user handling
- Arm weight: ~23.8 kg
- Mast weight: ~16.8 kg
2300 mm Arm
- Extended reach for complex façades
- Includes additional brace for stability
- Arm weight: ~28.4 kg
- Mast weight: ~15.5 kg
- Brace weight: ~8.5 kg
Adapters
Floor Adapter (DAV042)
- Mounted on ground or slab
- Weight: ~18.6 kg
- Features tilting function for easier mast installation
Wall Adapter (DAV040)
- Mounted on parapet or vertical surface
- Weight: ~16.3 kg
Adapters are selected based on base configuration and allow compatibility across multiple installation types.
Base Systems
Wide range of base solutions depending on structure and waterproofing requirements:
- Cast-in bases (stainless steel)
- Bolted bases (HDG or stainless steel)
- Wall-mounted bases
- Low-profile bases for reduced visual impact
- Pitch pocket solutions for waterproof integration
DAV050 - SkyDavit cast-in Base
Material: Stainless steel
Weight: 31.8 kg
Height: 500mm
Configuration: On ground
Fixing: Cast-in fixing
DAV052 - SkyDavit Bolted Base
Material: HDG steel (Stainless steel under request)
Weight: 30.9 kg
Height: 500mm
Configuration: On ground
Fixing: Bolted fixing
DAV054 - Cast-in Davit base – Wall mounted
Material: Stainless steel
Weight: 27.7 kg
Height: 260mm
Configuration: On ground/Wall
Fixing: Cast-in fixing
DAV056 - Wall mounted base for SkyDavit
Material: HDG steel (Stainless steel under request)
Weight: 26.8 kg
Height: 260mm
Configuration: On ground/ Wall
Fixing: Bolted fixing
DAV060 - Low profile SkyDavit base
Material: HDG steel (Stainless steel under request)
Weight: 14.5 kg
Configuration: On ground/ Wall
Fixing: Bolted fixing
DAV062 - Low profile Davit base ground mounted Pitch pocket
Material: HDG steel (Stainless steel under request)
Weight: 17.7 kg
Height: 138mm
Configuration: On ground
Fixing: Pitch Pocket Bolted fixing
DAV064 - Low profile SkyDavit cast-in base
Material: Stainless steel
Weight: 15.7 kg
Configuration: On ground/ Wall
Fixing: Cast-in fixing
All bases are engineered to ensure proper load transfer and long-term durability, with options for insulated roofs and various substrates (steel, concrete).
Applications
- Rope access façade maintenance
- Window cleaning and inspection
- Glass replacement operations (GRU)
- RopeClimber hoist access (1 or 2 persons)
- Industrial maintenance at height
General information
Color | Silver Grey Other |
Material | Aluminium Stainless steel Plastic |
Shape | Other |
Length | 2300 mm Bespoke 1600 mm |
Width | 110 mm Bespoke |
Height | Bespoke 2000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N25/10 Personal fall protection equipment N25/210 Personal fall protection equipment |
SKU Code | DAV030 / DAV032 |
Specification data - Davit arms
Classification data | |
Product reference | SkyDavit Arm. |
Standard | To BS 8610 and EN 1808. |
Loading (maximum) | |
Carrying capacity | One user RopeClimber with user and equipment. Two users in case of rescue operation. |
Safe working load | 240 kg. |
Mode of operation | Manual. |
Dimensions | |
Height (maximum) | 1410 mm. |
Reach (maximum) | 1560 mm. |
Material | Aluminium, stainless steel AISI 304 and POM. |
Factory finish | |
Coating | Powder-coated. |
Colour | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Film thickness (minimum) | Coating applicator to determine. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Luxembourg |
Country of product manufacture | France |
Manufacturing plant location | |
Material | Aluminium Stainless steel Plastic |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 6 (kg CO₂ eq/kg) Declared unit : 6 | |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
Expected Life | 25 year |
Literature
Literature type
SkyDavit | Davit Arm Fallprotec 2026

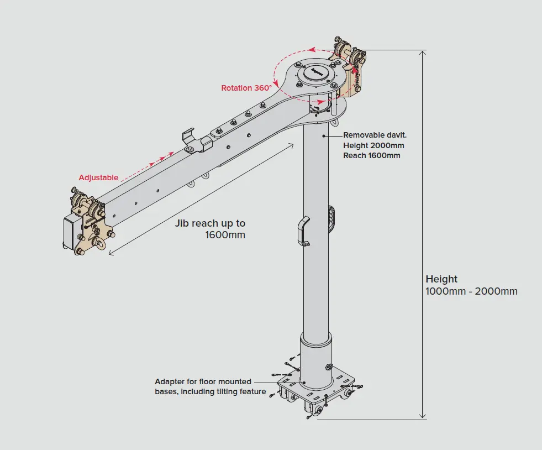

Technical sheets_SKYDAVIT (all merged)
Case studies
Davit arm on a commercial mall for façade access
