SEN Akusto™ Wall C Extra Bass acoustic wall panel - Acoustic panels
Verified by manufacturer today
Akutex™ FT
Akutex™ FT
EPD
Certificate type
EPD
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type
SEN Acoustic wall panel system for use as vertical absorber.
Application
For use in a range of application areas.
Description
SEN Ecophon Akusto™ Wall C Extra Bass has a concealed grid and bevelled edge to create a narrow groove between each panel. Available in a variety of surface options. The wall absorber has excellent sound absorption qualities from low to high sound frequencies. Best room acoustic properties are achieved when used together with a sound absorbing ceiling.
Features and benefits:
- Grid: Akusto Extra Bass (40 mm).
- The tiles are non-demountable.
- CE marked according to the European harmonized standard EN13964:2014.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceChoice of 22 standard Akutex FT painted finish colours, 14 Texona fabric colours, white impact resistance surface. |
Finish | Painted Textured Guidance for specification option: Textile finish. |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
Shape | Rectangle |
Length | 2700 mm |
Width | 600 mm |
Height | 40 mm Guidance for specification option: The Extra Bass panel is 40mm and the Akusto Wall C Panel is 40mm; so total is 80mm |
Warranty description | Ten year Guidance for specification option: All Ecophon installations can be warranted for ten years. 50 year Guidance for specification option: Design life. |
Uniclass | |
CAWS | K13/160 Proprietary K13/170 Acoustic panel lining |
SKU Code | Akusto™ Wall C Extra Bass acoustic wall panel |
Specification data - Acoustic panel lining systems
Classification data | |
Battens | Galvanized steel or aluminium profiles. |
Acoustic insulation | In accordance with EN ISO 354, Class A. |
Panelling | |
Type | Glass wool panel. |
Surface material | Akutex™ FT. Guidance for specification option: Dirt-repellent coating, making the surface easier to clean. |
System accessories | Connect Shadow Profile. Connect Shadow Corner. Guidance for specification option: Including washer for levelling. Connect Ambit Fixing. Guidance for specification option: Installed at 1000 mm centres. Connect Spline. Connect Shadow Splice Guidance for specification option: Used to extend profiles where needed. Akusto Extra Bass. Not required. |
Colour | White Frost. Guidance for specification option: Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N, 4% light reflectance. Basalt Rock. Guidance for specification option: Nearest NCS colour sample S 8005-B20G, 7% light reflectance. Deep Sea. Guidance for specification option: Nearest NCS colour sample S 7010-R90B, 10% light reflectance. Pine Green. Guidance for specification option: Nearest NCS colour sample S 7010-B90G, 11% light reflectance. Dark Chestnut. Guidance for specification option: Nearest NCS colour sample S 7010-Y90R, 10% light reflectance. Silk Slate. Guidance for specification option: Nearest NCS colour sample 7000-N, 13% light reflectance. Silver Stone. Guidance for specification option: Nearest NCS colour sample S 4502-Y, 29% light reflectance. Spring Leaf. Guidance for specification option: Nearest NCS colour sample S 4010-G50Y, 30% light reflectance. Wet Sand. Guidance for specification option: Nearest NCS colour sample: S 3020-Y30R, light reflectance: 34%. Silent Steam. Guidance for specification option: Nearest NCS colour sample S 2010-B, 50% light reflectance. Sage Mist. Guidance for specification option: Nearest NCS Colour S 2005-G50Y, 52% light reflectance. Volcanic Ash. Guidance for specification option: Nearest NCS colour sample 2002-Y, 55% light reflectance. Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N, 64% light reflectance. Morning Rain. Guidance for specification option: Nearest NCS colour sample S 1002-B, 70% light reflectance. Scallop Shells. Guidance for specification option: Nearest NCS colour sample S 0804-Y50R, 75% light reflectance. Moonlight Sky. Guidance for specification option: Nearest NCS colour sample S 7020-R90B, 7% light reflectance. Ocean Storm. Guidance for specification option: Nearest NCS colour sample S 4020-R90B, 24% light reflectance. Highland Fog. Guidance for specification option: Nearest NCS colour sample S 2005-G, 55% light reflectance. Sunset Heat. Guidance for specification option: Nearest NCS colour sample S 2070-Y60R, 20% light reflectance. Peach Rose. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. Sage Garden. Guidance for specification option: Nearest NCS colour sample S 3010-B30G. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Summer Forest. Guidance for specification option: Nearest NCS colour sample S 6030-G10Y. Golden Field. Guidance for specification option: Nearest NCS colour sample S 1040-G90Y, 61% light reflectance. Ruby Rock. Guidance for specification option: Nearest NCS colour sample S 4050-R10B, 7% light reflectance. Fresh Clover. Guidance for specification option: Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%. |
Weight | 7 kg/m² (approximate, including profile system). |
Indoor climate | Eurofins Indoor Air Comfort® IAC. Certified as A+ by French VOC. Emission classification of building materials: M1. |
Moisture resistance | Class C, relative humidity 95% and 30°C, according to EN 13964:2014. |
Fire safety | Complies with BS EN 13501-1, Class A2-s1, d0. |
Cleaning | Daily dusting, vacuum cleaning and weekly wet-wiping (Akutex FT surfaces). Weekly dusting and vacuum cleaning (Texona surface) as required. |
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 10.4 Value guidance: A1-A3Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025 / EN 15804. See Environmental Product Declaration Certificate. | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Expected Life | 50 year |
Product certifications
Akusto Wall C Extra Bass - Environmental Product Declaration - Expires 2026 Extra Bass - Environmental Product Declaration - Expire 2026 Environmental Product Declaration Akusto Wall C Extra Bass Texona Environmental Product Declaration Certificate Akusto Wall C Extra Bass Super G Environmental Product Declaration Akusto Wall C Extra Bass Akutex Ft
Product certifications
Certification type
EPD
Akusto Wall C Extra Bass - Environmental Product Declaration - Expires 2026
EPD
Extra Bass - Environmental Product Declaration - Expire 2026
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
EPD
Environmental Product Declaration Akusto Wall C Extra Bass Texona
EPD
Environmental Product Declaration Certificate Akusto Wall C Extra Bass Super G
EPD
Environmental Product Declaration Akusto Wall C Extra Bass Akutex Ft
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Health & Safety Accreditation
Safety Data sheet Ecophon Acoustic Products
Literature
Literature type
Data Sheet Akusto Wall C Extra Bass
Declaration of Performance Certificate - Extra Bass - E026
Ecophon Profiles Declaration of Performance Certificate
CPD materials
Acoustic Design for International Projects
Acoustics in Education - Universal Acoustic Design
A Sound Effect on People - Acoustics Podcast
Designing for Dementia and Ageing
Impact of Acoustics on Hospital Care and Recovery
Office Acoustic Design with an Introduction to Psychoacoustics
Psychoacoustics in the Workplace
Room Acoustics- Connecting to Design
Case studies
Pinn River SEND School
Heriot Watt University - Good acoustics improve students’ accuracy

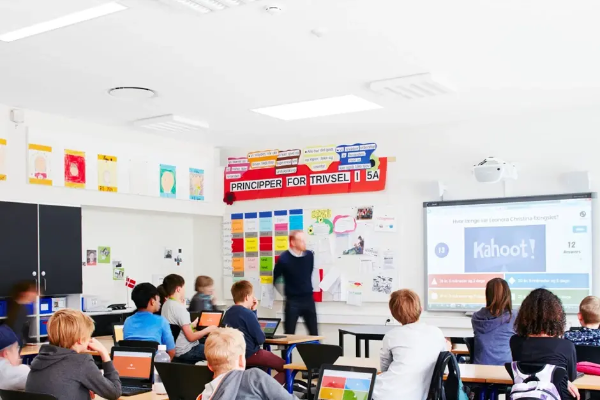

Nordagerskolen-Elementary-School
