Roller Blind on 55mm System with a 6000 Series AC Hardwired Motor - Hard Wired Motorized Roller System
Verified by manufacturer 4 months ago
BS 5867-2 Type B Flammability Test Certificate
Certificate type
BS 5867-2 Type B Flammability Test Certificate
Certificate type
BS 5867-2 Type B Flammability Test Certificate
Certificate type
BS 5867-2 Type B Flammability Test Certificate
Certificate type
BS 5867-2 Type B Flammability Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type
National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Certificate type
National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Certificate type
BS 5867-2 Type B Flammability Test Certificate
Certificate type
UltraFresh Antimicrobial Protection Certificate
Certificate type
Hardwired motorised roller system for blinds with quiet operation, easy installation, child safety, and smart remote control compatibility.
Application
Suitable for use in residential and commercial window blind applications where motorised operation is desired for ease of use, child safety, and smart home integration.
Description
The Roller Blind System 55 Motorized AC 6000 Series features the Louvolite One Touch® Hard Wired AC Motor, designed for effortless and economical operation of blinds.
Features and benefits:
- Whisper quiet noise level at 32db.
- Easy and quick installation with no wiring needed.
- Universal brackets enable easy and quick installation.
- Child safe by design with mid point limit to stop blind at chosen height.
- Motor weight capacity of twelve kilograms for blinds up to four meters wide.
- Four inch fascia options available for stylish interior integration.
- Convenient operation of singular or multiple blinds with a range of One Touch® remote controls.
- Compatible with Louvolite Smart Hub (R2195) for remote operation via app or voice command with Amazon Echo, Google Home, and Siri.
- Sixteen channel remote control displays motor battery and remote control charging levels.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium Nylon Plastic Metal |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N1/302 Window blinds B12/400 Blinds B12/50 Blinds N10/70 Blinds N10/240 Blinds |
Specification data - Roller blinds
Classification data | |
Standards | To BS EN 13120. |
Dimensions (minimum width x depth) | Manufacturer guidanceConsult technical datasheet for maximum width and drop depending on the weight of fabric specified. |
Headrail | |
Material | Aluminium 4” Square Fascia. Guidance for specification option: Optional: The 4” fascia is manufactured from aluminium and the brackets are made from mild steel, zinc plated and powder coated, suitable for top, face or side fixing. |
Colour | White. |
Blinds | |
Material | Manufacturer guidanceAn extensive range of fabrics are available, consult manufacturer for details and insert requirements, including black out options if applicable. |
Tube | |
Material | R8035 Aluminium Honeycomb Tube, R2990-55 55 mm Motor Set. |
Diameter | 55 mm. |
Tube covers | |
Material | Polymer R3080-45+ Enclosed Bracket Cover. Polymer R3045 System 45+® Bracket Cover. |
Colour | White. |
Operation | Motorized. |
Accessories | R8122 Round bottom bar and end cap. R8128 Gemini bottom bar and end cap. SR8129 Smart rail bottom bar and end cap. R8300-PVC Bottom bar and end cap. R8302-PVC-T.DROP Tear drop bottom bar and end cap. R8302-PVC-T.DROP Tear drop bottom bar and wrap around end cap. R2180-1CH Single Channel Remote Control. R2185-6CH6 Channel Remote Control. R2190-16CH 16 Channel Remote Control. R2195 Smart Hub. R3800 4” Square Fascia Universal Brackets. Guidance for specification option: Optional: The 4” Fascia is manufactured from aluminium and the brackets are made from carbon steel, zinc pleated and powder coated, suitable for top, face or side fixing. |
Motor | R2160-AC Hard Wired Motor AC 6000 AC Series. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium Nylon Plastic Metal |
Expected Life | Ten year |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
Certification type

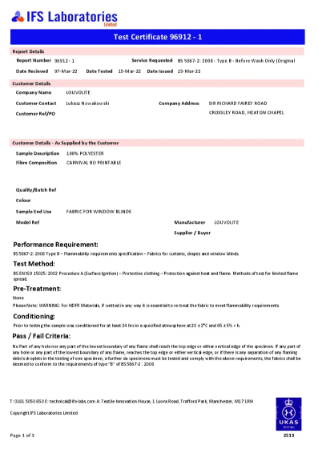

BS 5867-2 Type B Flammability Test Certificate
CARNIVAL BO PRINTABLE Flammability Test Certificate
BS 5867-2 Type B Flammability Test Certificate
CARNIVAL HF BO - Flammability Test Certificate
BS 5867-2 Type B Flammability Test Certificate
CARNIVAL LF - Flammability Test Certifcate
BS 5867-2 Type B Flammability Test Certificate
DAYBREAK Flammability Test Certificate
BS 5867-2 Type B Flammability Test Certificate
EXLITE Flammability Test Certificate
IMO FTP Code Part 7 Test Certificate
PERSPECTIVE 3% IMO FTP Code Part 7 Test Certificate
IMO FTP Code Part 7 Test Certificate
PERSPECTIVE 5% IMO FTP Code Part 7 Test Certificate
IMO FTP Code Part 7 Test Certificate
PERSPECTIVE ALUVIEW - IMO FTP Code Part 7 Test Certificate
IMO FTP Code Part 7 Test Certificate
PERSPECTIVE BO - IMO FTP Code Part 7 Test Certificate
National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Perspective - Flame Propagation of Textiles and Films Test Certificate
National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Perspective Pureview - Flame Propagation of Textiles and Films Test Certificate
BS 5867-2 Type B Flammability Test Certificate
SUNSET Flammability Test Certificate
UltraFresh Antimicrobial Protection Certificate
Ultra-Fresh Antimicrobial Protection Certificate
Literature
Roller System 55® AC Hard Wired 6000 Motor Technical Specification
