Reinforced Bituminous Membrane (Felt) Roofing System - IKO ULTRA Prevent 25 - Built-up Flat Roofing System

Guidance for specification option:

IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C.

S-A membranes only.

Guidance for specification option:

KOpro Sprayfast MPP (Black, Multipurpose Primer) is a

specially formulated high performance bonding primer.

It allows the speed of application of the bonding primer

to be five times faster than conventional bitumen primers,

promoting strong bonds at temperatures as low as

5°C. For self adhesive and torch applied bitumen membranes.

Guidance for specification option:

IKOpro Quick Dry Bitumen Primer (black) is a fast-drying bitumen priming solution for torch applied bitumen membranes.

T-O membranes only.

Guidance for specification option:

IKOpro Systems Bonding Agent (black) is a specially formulated primer. Enhancing the properties of self- adhesive bitumen roofing membranes, it promotes strong bonds even at temperatures as low as 5°C.

S-A membranes only.

Guidance for specification option:

KOpro Sprayfast MPP (Black, Multipurpose Primer) is a

specially formulated high performance bonding primer.

It allows the speed of application of the bonding primer

to be five times faster than conventional bitumen primers,

promoting strong bonds at temperatures as low as

5°C. For self adhesive and torch applied bitumen membranes.

Guidance for specification option:

IKOpro Quick Dry Bitumen Primer (black) is a fast-drying bitumen priming solution for torch applied bitumen membranes.

T-O membranes only.

Guidance for specification option:

Self adhesive for combustible substrates

S-A VCL (Self-Adhesive) is a high performance vapour barrier for use in adhered IKO Polymeric systems. It is composed of a polyester reinforced aluminium core, coated with a rubber modified, self-adhesive bitumen coating. The membrane is protected on the underside with a release film backing and coated on the top surface with a fine mineral finish. A selvedge of 75mm width, protected with release film, provides a quick means of completing side laps.

Guidance for specification option:

Torch applied to non combustible substrates only

T-O VCL (Torch-on) is a high performance vapour control layer for use in adhered IKO Polymeric systems. It comprises an impervious aluminium core, reinforced with polyester and coated with a specially formulated quick melt SBS modified bitumen. The lower surface has a sacrificial film which rapidly melts during the torching operation.

Guidance for specification option:

For IKO ultra S-A air and vapour control layer.

Guidance for specification option:

For IKO ultra T-O air and vapour control layer.

Guidance for specification option:

For Rockwool insulation boards.

Guidance for specification option:

IKO Systems H-A underlays are polyester reinforced bitumen membranes used as underlays within a built up roofing system, The membranes are coated on both sides with self-adhesive bitumen SBS elastomeric coating. They have a fine mineral upper surface with a 75 mm release film selvedge to facilitate rapid installation of lap joints. Size: 1 x 16 m.

Guidance for specification option:

The underside has a self-adhesive bitumen coating for fully bonded and all waterproofing detailing applications. The self-adhesive coating is protected by a release film.

Flame-free application. Surface protection from the fine granule finish. Grey in colour. Size: 16 x 1 m

Guidance for specification option:

IKO Systems Torch-On Under layer consists of a polyester carrier coated with SBS rubber modified bitumen. The upper surface is finished with fine sand and the lower surface has a thermofusible film which rapidly melts during the torching operation. Size: 12 x 1 m.

Guidance for specification option:

IKO Ultra T-O Underlay.

Guidance for specification option:

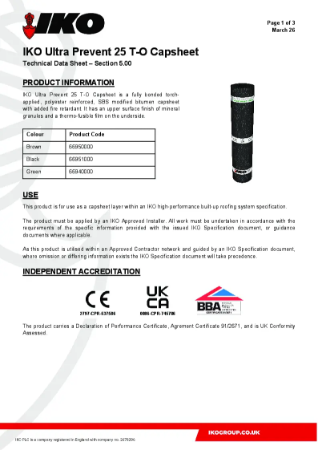

IKO ULTRA PREVENT 25 (was IKO Ultra Prevent) membranes consist of a polyester glass-fibre laminate, coated with SBS modified bitumen and incorporating Graphite Firewall Technology, offering the ultimate combination of long term waterproofing and protection.

The IKO ULTRA PREVENT 25 Torch-On high performance bitumen membrane has been tested under ENV1187 and has been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification of construction products and building elements – classification using data from external fire exposure to roof tests. This is made possible with the use of IKO Prevent Graphite Fire Wall Technology with self-extinguishing properties. Size: 8 x 1 m.

Guidance for specification option:

IKO ULTRA PREVENT 25 (was IKO Ultra Prevent) membranes consist of a polyester glass-fibre laminate, coated with SBS modified bitumen and incorporating Graphite Firewall Technology, offering the ultimate combination of long term waterproofing and protection.

The IKO ULTRA PREVENT 25 Torch-On high performance bitumen membrane has been tested under ENV1187 and has been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification of construction products and building elements – classification using data from external fire exposure to roof tests. This is made possible with the use of IKO Prevent Graphite Fire Wall Technology with self-extinguishing properties. Size: 8 x 1 m.

Guidance for specification option:

IKO ULTRA PREVENT 25 (was IKO Ultra Prevent) membranes consist of a polyester glass-fibre laminate, coated with SBS modified bitumen and incorporating Graphite Firewall Technology, offering the ultimate combination of long term waterproofing and protection.

The IKO ULTRA PREVENT 25 Torch-On high performance bitumen membrane has been tested under ENV1187 and has been classified as BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification of construction products and building elements – classification using data from external fire exposure to roof tests. This is made possible with the use of IKO Prevent Graphite Fire Wall Technology with self-extinguishing properties. Size: 8 x 1 m.

Guidance for specification option:

The underside has a self-adhesive bitumen coating for fully bonded and all waterproofing detailing applications. The self-adhesive coating is protected by a release film.

Flame-free application. Surface protection from the fine granule finish. Grey in colour. Size: 16 x 1 m

Guidance for specification option:

IKO ULTRA LIFE 30 Torch-On Detailing Cap Sheet (was IKO UPXL) is a complementary, high performance membrane that is ideal for forming typical details on IKO ULTRA LIFE 30 Flame-Free and Hybrid Systems, with a granular finish on the top surface and finished on the reverse side with a thermofusible film. The base fabric is a polyester/glass fibre laminate, providing excellent strength, flexibility and dimensional stability. Size: 8 x 1 m.
