Premium Vertical Blind System - Maestro Wide Bodied - Vertical Blind System

Name: Premium Vertical Blind System - Maestro Wide Bodied - Vertical Blind System
Brand: Louvolite
SKU: pd78yqGyNHa7No6Ngbsu95

Verified by manufacturer 5 months ago

Louvolite

Product certifications:

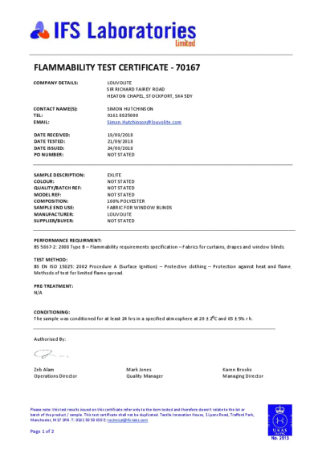

BS 5867-2 Type B Flammability Test Certificate
Certificate type

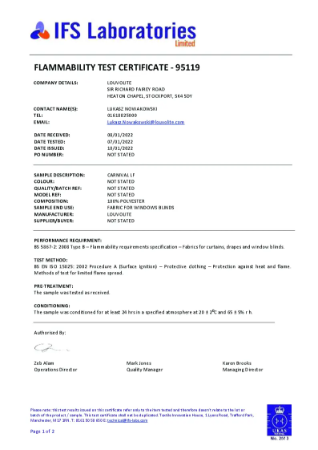

BS 5867-2 Type B Flammability Test Certificate
Certificate type

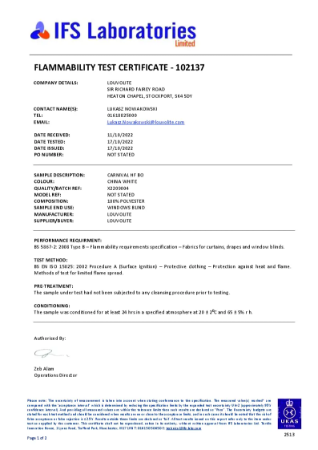

BS 5867-2 Type B Flammability Test Certificate
Certificate type

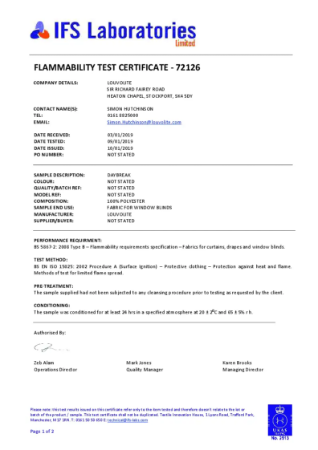

BS 5867-2 Type B Flammability Test Certificate
Certificate type

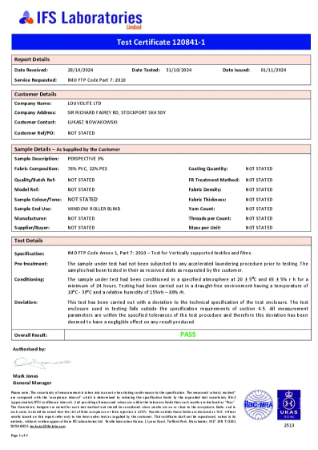

IMO FTP Code Part 7 Test Certificate
Certificate type

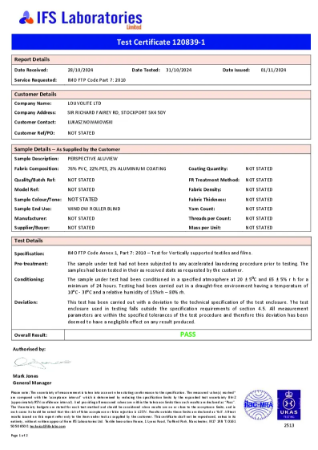

IMO FTP Code Part 7 Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type
IMO FTP Code Part 7 Test Certificate
Certificate type

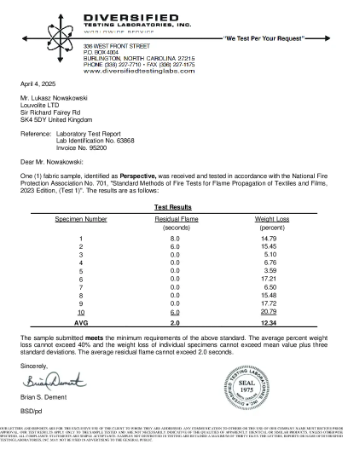

National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Certificate type

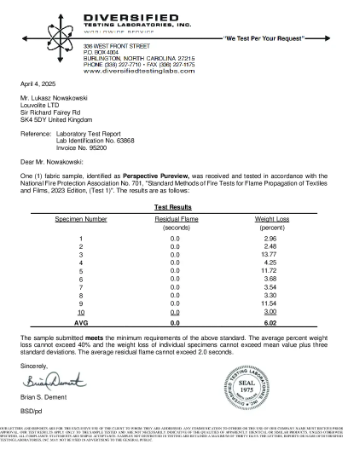

National Fire Protection Association No. 701 Flame Propagation of Textiles and Films
Certificate type

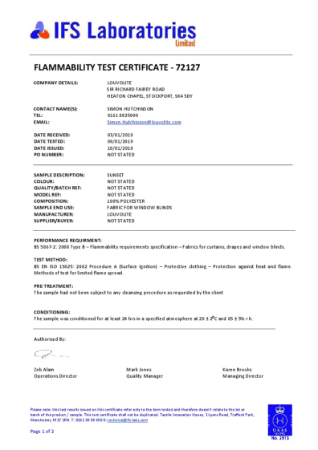

BS 5867-2 Type B Flammability Test Certificate
Certificate type

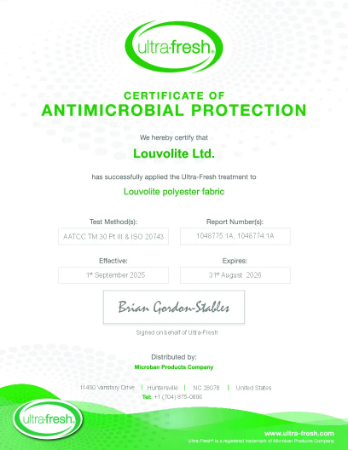

UltraFresh Antimicrobial Protection Certificate
Certificate type

A robust vertical blind system with aluminium headrail, UV stabilised components, and multiple operation options for commercial and residential use.

Jump to:

BOS

+44 (0)161 882 5050 Website

Application

Used for window coverings in commercial and residential buildings to provide light control and privacy through vertical blinds with various operation options including wand, chain tilt, and cord draw.

Description

The Maestro vertical blind system is designed and manufactured in the UK with a ten year life cycle test for durability.

Features and benefits:

Made of high quality plastic, stainless steel and aluminium with corrosion resistant finishes.
Available in 5 m length tracks for wider windows and doors.
UV stabilised prime plastics guard against ultraviolet degradation.
Direct drive tilt operation provides positive control for opening and closing blinds.
Options for side, centre or split draw operation.
Self-aligning carrier trucks have limit stops allowing louvre rotation to 185° for better closure.
Wheeled carrier design supports heavier duty commercial blinds.
Operating wand option is child safe by design.
Available with chain tilt and cord draw operation option.
Chainless gravity weights available in 89 and 127 mm sizes.

General information

Color	White
Finish	Powder-coated
Material	Aluminium Plastic Stainless steel
Shape	Rectangle
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_07_95 Vertical blindsPrimary
CAWS	N1/302 Window blinds B12/400 Blinds B12/50 Blinds N10/240 Blinds N10/70 Blinds

Specification data - Vertical blinds

Classification data
Standards	To BS EN 13120.
Dimensions (minimum width x depth)	- Manufacturer guidance Consult manufacturer for details and insert requirements
Slats	-
Width (maximum)	89 mm. 127 mm.
Material	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Headrail	-
Material	Powder coated extruded aluminium.
Colour	White.
Operation	Opening and closing wand.
Accessories	Adjustable face fix brackets. Extension top fix brackets. Guidance for specification option: 1342: 80/ 180 mm 1341:130/ 230 mm 1351: 160/ 260 mm. Face fix brackets Guidance for specification option: 1304: 89 mm 1300: 127 mm Pelmet brackets. Shallow frame extension face fix brackets. Side fix brackets. Top fix brackets (screw). Top fix brackets (spring).
Bunching	Centre. Guidance for specification option: 89 mm: 165 mm for 1st metre width of blind. 165 mm for each extra metre. 127 mm: 115 mm for 1st metre width of blind. 115 mm for each extra metre. One way. Guidance for specification option: 89 mm: 225 mm for 1st metre width of blind. 175 mm for each extra metre. 127 mm: 190 mm for 1st metre width of blind. 115 mm for each extra metre. Split. Guidance for specification option: 89 mm: 225 mm for 1st metre width of blind. 175 mm for each extra metre. 127 mm: 135 mm for 1st metre width of blind. 55 mm for each extra metre.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Manufacturing plant location	Ashton Rd, Hyde SK14, UK
Material	Aluminium Plastic Stainless steel
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
Expected Life	Ten year
