Pocket Sliding Glass Door - Elite Aero
Verified by manufacturer 1 month ago
EPD
Certificate type
Achieving up to Rw39dB of acoustic resistance with 12 mm toughened glass, this door slides into the cavity of our double glazed Revolution 100 partition.
Application
Pocket sliding glass doors are ideal for offices and meeting rooms where floor space is limited. These pocket sliding glass doors offer a minimalist alternative to standard swing doors.
Description
This pocket sliding door features 12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.
Features and benefits:
- Elegant Elite Aero pocket sliding door achieves an impressive 39 dB (Rw) acoustic performance.
- Can incorporate a cylinder hook bolt lock and soft close/ open function if required.
General information
Color | White Silver Other Black |
Finish | Anodized Glazed Grained Polished Powder-coated |
Material | Glass Aluminium |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/60 Doors L20/520 Sliding doors |
Product range |
Specification data - Sliding doorset systems
Classification data | |
Doorset | |
Type | Pocket door. |
Glazing | 12 mm glass. |
Hardware | Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Size | Guidance for specification option: Available up to 3000 mm in height. |
Locking | Dead lock. Latch. Sash lock. |
AcousticRating | 39 dB. Guidance for specification option: (in conjunction with 2 x 12.8 mm acoustic laminate double-glazed partition). Manufacturer guidance(Rw, maximum): |
Frame | Guidance for specification option: Integral to partition system. |
Performance | Internal. |
Finish and colour | Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal) Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal) |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Glass Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit Declared unit Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : - Manufacturer guidanceSee Environmental Product Declaration literature for detailed LCA data. | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Product certifications
EPD

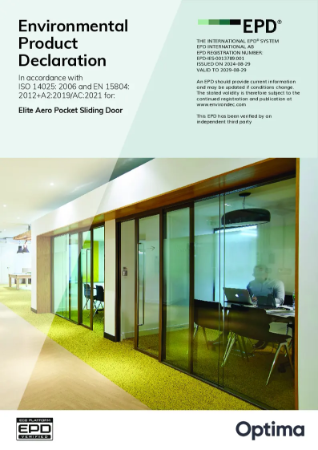

Environmental Product Declaration - Elite Aero Pocket Sliding Door
Literature
Literature type
Optima Revolution 100 Product Summary
000005 (3) - Warranty - Company Policy
900001 (17) - Designer's Guide - Door Sets
Optima Doors Product Summary
Revolution 100 with Adaptable Wall Designers Guide
CPD materials
Non Load Bearing Partitions
Specifying Glass Partitions
Specifying Glass Partitions (Scotland)
The WELL Building Standard - How can glazed partitions contribute?
Understanding Embodied Carbon in Use and Re-use of Commercial Glass Partitions and Doors
Understanding Partition Acoustics
