Non-Combustible Self-Levelling Paving Support Pedestal - RPA-FR
Verified by manufacturer 14 days ago
EPD
Certificate type
Self-levelling adjustable paving pedestal.
Application
Terraces, podiums, roof decks and balconies. Suitable for all calibrated paving types, including natural stone, concrete and porcelain.
Description
A fully non-combustible paving pedestal with built-in, lockable slope correction. Manufactured from mild steel, with zinc-nickel electroplating for corrosion resistance, the RPA-FR gives strong, adjustable support for paving tiles.
Features and benefits:
- Integrated metal spacer tabs.
- Holes in the base can be used for fixing to the substrate.
- ‘Ball and socket’ securable.
- Resistant to moulds, algae, alkali, bitumen and UV.
- Maximum slope correction 10.5% (6°).
General information
Color | Grey |
Finish | Plated |
Material | Steel |
Shape | Square Circle |
Length | 90 mm 124 mm 170 mm 220 mm |
Width | 90 mm 124 mm 170 mm 220 mm |
Warranty description | 30 year Guidance for specification option: 30 year warranty (when used as part of a complete RYNO IGNO system). |
Uniclass | |
CAWS | J31/377 Support system for paving slabs or tiles J42/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J31/80 Precast concrete paving slabs Q37/460 Support pedestals J41/467 Support system for precast concrete paving slabs J31/375 Paving tiles J21/467 Support system for precast concrete paving slabs J31/370 Precast concrete paving slabs Q55/395 Support pedestals |
Specification data - Decking and paving pedestals
Classification data | |
Performance characteristics | |
Reaction to fire | To EN 13501-1, A1. Guidance for specification option: (Decision 94-611/EC). |
Pedestal type | Adjustable. |
Grade | Compressive strength: 2400 kg per pedestal. |
Material | Mild steel. Guidance for specification option: With zinc-nickel electroplating. |
Adjustment | 30–40 mm. Guidance for specification option: RPA-FR-1. 40–50 mm. Guidance for specification option: RPA-FR-2. 50–70 mm. Guidance for specification option: RPA-FR-3. 70–115 mm. Guidance for specification option: RPA-FR-4. 115–205 mm. Guidance for specification option: RPA-FR-5. 205–305 mm. Guidance for specification option: RPA-FR-6. 305–405 mm. Guidance for specification option: RPA-FR-7. 405–505 mm. Guidance for specification option: RPA-FR-8. |
Accessories | Head shock pads. Base shock pads. Edge spring clip. E-FR 25 mm pedestal extension. |
Finish | Zinc-nickel, electroplated. |
Corrosion resistance | To ASTM B117-19, >6000 hours. Guidance for specification option: Tested to ISO 9227. |
Base | 124 x 124 (square). 170 mm diameter (circular). 220 mm diameter (circular). |
Head | 90 x 90 mm. |
Spacers | 4 mm. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of material origin | Europe Guidance for specification option: Pavers |
Country of product manufacture | Europe Guidance for specification option: Pavers |
Material | Steel |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 4.09 (kg CO₂ eq/kg) Declared unit : 4.09 | |
Recyclability | Recyclable |
Expected Life | 60 year Guidance for specification option: Design life. |
Product certifications
Product certifications
EPD
EPD - RYNO Metal Pedestals (RP-FR, RPA-FR, and RD-FR)
Literature

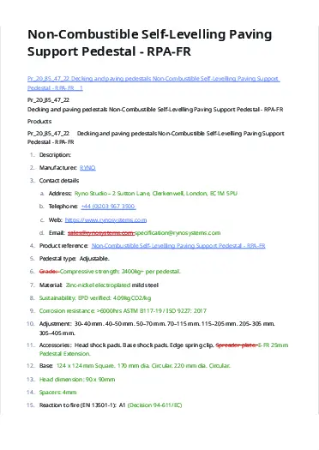

Non-Combustible Self-Levelling Paving Support Pedestal - RPA-FR
