Modular Walling - LPS1175 D10 Hinkley - Modular Walling
Verified by manufacturer 9 days ago
LPCB Certification
Certificate type
LPCB Certification
Certificate type
High-security steel modular walling with a composite construction.
Application
For environments requiring resistance to deliberate attack and high-security forced entry scenarios, suitable for use where maximum perimeter protection is required.
Typical applications include:
- Utility compounds, substations, and control rooms.
- Secure data centres and server environments.
- Commercial and industrial high-security facilities.
- Healthcare secure areas and clean room environments.
- Retrofit hardening of existing internal spaces.
- Partitioning within secure buildings requiring elevated security.
Description
High-security steel modular walling with a composite construction.
Designed to resist sustained manual attack and advanced hand tool entry techniques. Panels feature fully interlocking steel skins with multi-layer internal reinforcement, providing high rigidity and security integrity. The system allows rapid assembly of secure rooms or enclosures and can be installed as standalone structures or integrated into existing buildings to upgrade internal security. Service penetrations, ventilation, and cable routing can be accommodated without compromising security integrity.
Features and benefits:
- LPS 1175 (Issue 8) Tool Category D10 (SR4) certified.
- Designed for high-security applications with National Protective Security Authority (NPSA)/ project-specific rating.
- Enhanced resistance to sustained manual attack and tool-based forced entry.
- 50% faster assembly vs traditional layered constructions.
- Constructed entirely from the inside where external access is limited.
- Suitable for new build, retrofit hardening and temporary secure rooms.
- Installation carried out by BenweldSecure-approved operatives.
- Supplied pre-finished or colour-matched to suit the host environment.
- Multiple build options available.
- Can form part of a full secure envelope when paired with certified doorsets, grilles and louvres.
General information
Color | Other Guidance for specification option: Pre-finished in primer or to any RAL or BS4800 colour. Specialist colours/ finishes also available. |
Finish | Primed Powder-coated Other |
Material | Steel Composite Polyisocyanurate (PIR) Mineral wool |
Shape | Other |
Length | Bespoke Guidance for specification option: Up to 5000 mm for wall applications. Up to 3000 mm for ceiling applications. |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | G10/150 Steel framing system G10/20 Steel framing system |
Specification data - Light-gauge steel frame panels
Classification data | |
Building manufacturer | BenweldSecure. |
Frame style | Manufacturer's standard. |
Size (length x width x height) | Manufacturer guidanceConsult manufacturer and insert requirements. See manufacturer's datasheet for guidance on small, medium and significant build sizes. Minimum panel layer thickness: 64 mm. |
Section sizes | Manufacturer guidanceConsult manufacturer and insert requirements.
|
External walls | |
Performance criteria | LPS 1175 SR4 (D10). Guidance for specification option: Designed to resist sustained manual attack and advanced hand tool entry techniques. |
Outer leaf | Composite core with steel skin. Guidance for specification option: Please note: The core detail for the anti-cutting layers is redacted for security purposes. Consult manufacturer for further information. |
Insulation | |
Material | Polyisocyanurate. Guidance for specification option: As standard. Provides up to 0.17 W/m²K thermal rating. Mineral wool. Guidance for specification option: Tested to BS 476-22, up to 120 minutes integrity/ 120 minutes insulation. Please note that fire requirements may have an impact on panel thickness, and fire rated applications must use a mineral wool core type. |
Inner facing | Steel skin. |
Integral external components | |
Doors | Manufacturer guidanceCan be used in conjunction with certified doorsets. Consult manufacturer for details. |
Windows | Manufacturer guidanceCan be used in conjunction with certified windows. Consult manufacturer for details. |
Accessories | Manufacturer guidanceCan be used in conjunction with certified louvres, grilles, and barsets. Consult manufacturer and insert requirements. |
Integral finishes | |
External | Primed. Powder-coated, RAL colour. Guidance for specification option: Consult manufacturer and insert requirements. Powder-coated, BS 4800 colour. Guidance for specification option: Consult manufacturer and insert requirements. Other. Guidance for specification option: Specialist finishes on request, including HPS200, ColorCoat LG, white hygienic laminate, and smooth polyester. Consult manufacturer and insert requirements. |
Internal | Primed. Powder-coated, RAL colour. Guidance for specification option: Consult manufacturer and insert requirements. Powder-coated, BS 4800 colour. Guidance for specification option: Consult manufacturer and insert requirements. Other. Guidance for specification option: Specialist finishes on request, including HPS200, ColorCoat LG, white hygienic laminate, and smooth polyester. Consult manufacturer and insert requirements. |
Joint type | Fully interlocking male/ female jointing with concealed fixings. |
Acoustic performance | Up to Rw 65 dB. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel Composite Polyisocyanurate (PIR) Mineral wool |
Recyclability | Steel components recyclable |
Expected Life | Manufacturer guidanceLong service lifespan with low maintenance requirements. |
Product certifications

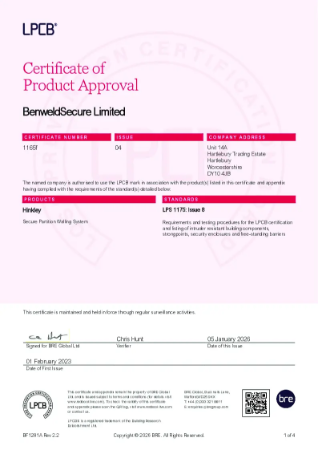

LPCB Certification
Hinkley LPCB - 1165j

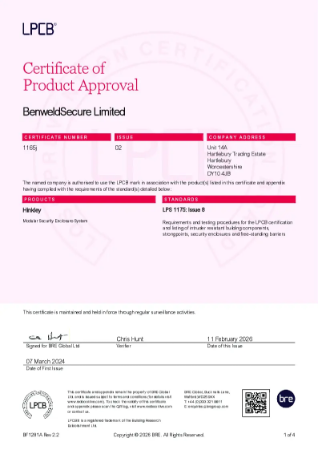

LPCB Certification
Hinkley LPCB - 1165f
Literature

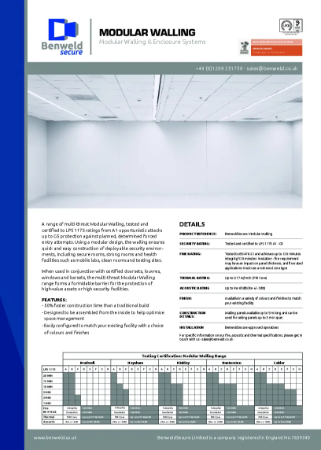

BenwledSecure - Modular Walling Range

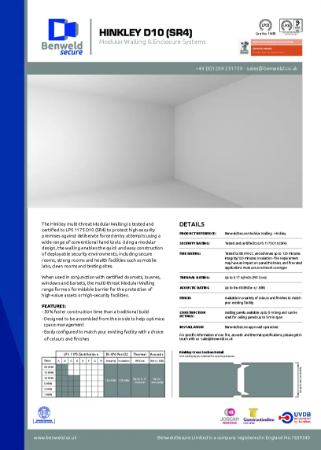

BenwledSecure - Hinkley Data Sheet
