LSTE Low Surface Temperature Panel Heater Range

Verified by manufacturer 1 day ago

LST050E

Glen Dimplex Heating and Ventilation Variant:

Safe heating solution for public, care and educational settings.

Jump to:
+44 (0)344 8793586 Website

Application

Safe heating solution for public, care and educational settings.

Description

The LSTE panel heater is designed with the requirements of education and healthcare sectors in mind and is suitable for heating public spaces where safety is critical. LSTE provides rapid and controlled heating whilst maintaining a safe external surface temperature of no more than 43°C to NHS estates health guidance notes 1998. It is suitable for use in any environment where vulnerable people such as children, those with disabilities, illnesses or the elderly, may be at risk when coming into direct contact with a hot surface. LSTE panel heaters eradicate the need for unsightly protective cages, helping to maximise available space and improve aesthetics and safety.

LSTE features intuitive user controls, allowing the programming of multiple 7-day timer profiles via a backlit LCD display and capacitive buttons.

Features and benefits:

  • Intuitive user controls with RGB backlit LCD display.
  • User programmable room temperatures with multiple seven-day timer profiles.
  • Electronic thermostat accurate to within 0.2°C.
  • Energy-saving technologies such as Adaptive Start and Open Window Detection.
  • Fanned heat for rapid warm up.
  • Quiet operation.
  • Forward facing grille for optimum heat circulation.
  • Splash proof for use in bathrooms.
  • Complies with Lot 20 of ERP Directive.
  • Smartphone APP controllable via the Dimplex Control system.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

108 mm

Width

690 mm

860 mm

Height

430 mm

Warranty description

Two year

Uniclass

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

V90/590 Equipment

SKU Code

LST050E, LST075E, LST100E, LST150E

Specification data - Room heaters

Classification data

Third party certification

UKCA, CE and BEAB.

Room heaters type

Panel.

Output

0.50 kW.

Finish

Epoxy polyester powder-coated, Traffic White (RAL 9016).

Accessories

None.
Dimplex Hub and Radio Frequency Module (RFM).

Guidance for specification option:

Required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app.

Controls

Digitally controlled, electronic thermostat.

Guidance for specification option:

Accurate to (±0.2°C).

Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day.

Continuous heat modes: Eco, Manual, Frost Protect.

Additional Modes: Away, Boost, Setback.

Heating element

Compact, finned, mineral filled and sheathed.

Safety features

Thermal cutout (auto reset type) and overheat detection.

Ingress protection (IP) rating

IP24.

Battery back-up

CR2032 Lithium manganese dioxide 3V coin cell battery.

Guidance for specification option:

To backup real time clock. Battery life >5 years.

Supply

1.3 m fitted, 3 core for fused spur installation, 1/N/PE ~230–240 V, 50 Hz Class I, with earth wire.

Width

690 mm.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Literature

LSTE Series A Spec Sheet

LSTE Series A Spec Sheet

Dimplex Xpelair Trade Catalogue

Dimplex Xpelair Trade Catalogue

Similar products from Glen Dimplex Heating and Ventilation

Alta Wi-Fi Panel Heater

Alta Wi-Fi Panel Heater

CPHT Compact Panel Heater

CPHT Compact Panel Heater

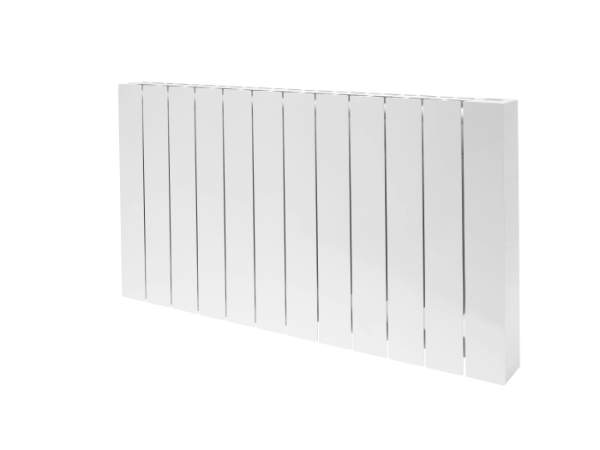

DAR Aluminium Radiator

DAR Aluminium Radiator

FX20VEW/ FX20WIPX4 Downflow Fan

FX20VEW/ FX20WIPX4 Downflow Fan

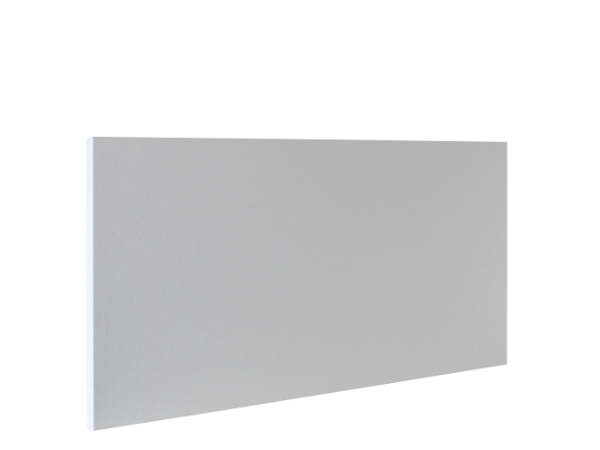

IRP Far-Infrared Panel Heaters
