Kinetic Lite Frameless Glass Sliding Door and Partition Panel
Verified by manufacturer 14 days ago
EPD
Certificate type
This sliding glass door from the Kinetic range offers a minimalist, frameless glass leaf that maximises natural light and spatial efficiency.
Application
Sliding glass doors are ideal for compact office layouts. Use this frameless glass sliding door leaf where a minimalist aesthetic is required without the bulk of a perimeter door frame.
Description
A frameless sliding glass door for projects where acoustic performance is not a design priority.
Features and benefits:
- 10 mm heat-soaked toughened glass leaf acting on carriages within a robust head track.
- Part M-compliant clear opening included.
- For use in conjunction with Kinetic partition system.
- Integrates flawlessly with Optima 117 Plus single glazed systems.
General information
Color | Silver White Orange |
Finish | Glazed Laminated |
Material | Glass Aluminium |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/520 Sliding doors L20/65 Sliding pocket doors |
Product range |
Specification data - Sliding door and partition sets
Classification data | |
Third party accreditation | To BS EN 14179. |
Arrangement | Frameless sliding glass door. |
Track system | Acting on carriages within a robust head track. |
Operation | Manual. |
Hardware | Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Accessories | Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Finish/ Colour | Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). |
Deflection head | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Manifestation | Guidance for specification option: Insert requirements. |
Glazing | 10 mm heat-soaked toughened glass (to BS EN 14179). |
Size | Guidance for specification option:
|
Handles | Pull handles in satin finish. Special order. |
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Sustainability data
Material | Glass Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 2.39 (kg CO₂ eq/kg) Declared unit : 2.39 Value guidance: A1-A3See Environmental Product Declaration literature for detailed LCA data. | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Product certifications
EPD

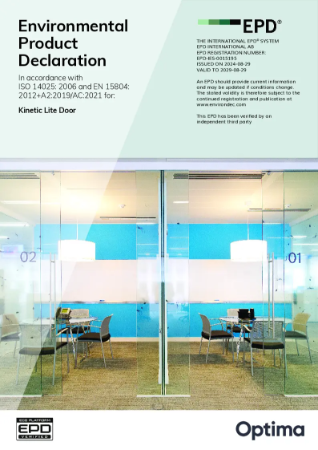

Environmental Product Declaration - Kinetic Lite Sliding Glass Door
Literature
Literature type
Optima Kinetic Product Summary
Optima 117 Plus Product Summary
000005 (3) - Warranty - Company Policy
CPD materials
Non Load Bearing Partitions
Specifying Glass Partitions
Specifying Glass Partitions (Scotland)
The WELL Building Standard - How can glazed partitions contribute?
Understanding Embodied Carbon in Use and Re-use of Commercial Glass Partitions and Doors
Understanding Partition Acoustics
