Frameless Glass Door Axile Clarity on Hinges
Verified by manufacturer 29 days ago
EPD
Certificate type
Toughened frameless glass door leaf on hinges with a slim line Microflush aluminium door frame.
Application
Suitable for office buildings and workplace environments.
Description
Axile Clarity is a 10 or 12 mm-thick, single-glazed, toughened glass leaf (thickness determined by height requirement) with a slimline Microflush aluminium door frame.
Features and benefits:
- Incorporates integral acoustic seals.
- With glazing rebate for seamless integration with Optima’s single-glazed or double-glazed partitioning systems.
- Elegant frameless design.
- Laboratory tested for acoustic performance in a UKAS accredited laboratory up to 33 dB (Rw).
- Part M-compliant clear opening included.
Consult with manufacturer for further information.
General information
Finish | Glazed |
Material | Glass Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: See Warranty Policy literature for more information. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets L20/460 Frameless glass doors |
Product range |
Specification data - Frameless glass door systems
Classification data | |
Door leaf | Toughened safety glass. |
Hardware | Manufacturer guidanceInsert requirements; contact manufacturer for more information. |
System accessories | Manufacturer guidanceInsert requirements; contact manufacturer for more information. |
Configuration | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Format | Single leaf, single action. |
Door leaf size | Guidance for specification option:
|
Thickness | 10 mm. 12 mm. Manufacturer guidance(thickness determined by height requirement): |
Glazing | Single glazed, heat-soaked toughened glass (to BS EN 14179). |
Operation | Stainless steel grade 1.4301 (304) lift-off hinges. |
AcousticRating | 32 dB. Guidance for specification option: (when used within a Microflush frame.) |
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Glass Aluminium |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
Product certifications
EPD

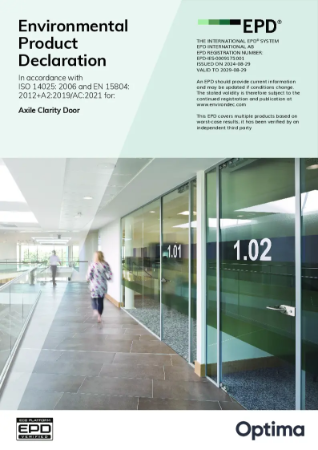

Environmental Product Declaration - Axile Clarity Door
Literature
Literature type
Optima Doors Product Summary
000005 (3) - Warranty - Company Policy
CPD materials
Non Load Bearing Partitions
Specifying Glass Partitions
Specifying Glass Partitions (Scotland)
The WELL Building Standard - How can glazed partitions contribute?
Understanding Embodied Carbon in Use and Re-use of Commercial Glass Partitions and Doors
Understanding Partition Acoustics
