High performance, A2-s1, d0 fire rated structural thermal break plate.
Application
Suitable for use anywhere a penetration or transition exists in a building envelope to improve building thermal performance, such as:
- Facade system connections to primary frames.
- Brise soleil and canopies.
- Roof plant enclosures – columns.
- Roof parapets.
- Cladding systems.
- Connection of external to internal primary building elements.
- Balconies.
- Staircases.
- Isolation of sub-structure and basement elements.
- Man-safe systems.
- Connections to existing structures.
Description
High performance, A2 non-combustible structural thermal break plate.
Features and benefits:
- High performance, A2 fire rated thermal insulator, used between horizontal and vertical connections of internal and external elements to prevent thermal or cold bridging.
- Constructed from materials with high compressive strength characteristics, combined with a low thermal conductivity.
- They can be used in a wide variety of applications where there is a structural requirement for thermal insulation, such as steel to steel, steel to concrete/ masonry, steel to timber and concrete to concrete.
- Rated A2-s1, d0 to EN 13501-1
- Maintains structural performance at high temperatures or in the event of fire.
- An effective solution to meeting Building Regulations by reducing heat loss and internal condensation. Compliant for use under Document B Building Regulations for buildings above 18 m.
- High compressive strength.
- Low thermal conductivity.
- Remains intact under fire conditions.
- Available in a variety of thicknesses.
- Manufactured to suit the connection detail (bespoke).
General information
Color | Grey |
Finish | Smooth |
Material | Mineral |
Shape | Rectangle Circle Triangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime Manufacturer guidanceFor life of the building structure |
Uniclass | |
CAWS | E40/440 Load transfer systems |
SKU Code | TBF |
Product range |
Specification data - Thermal break connection plates
Classification data | |
Certification | BBA and BRE Certified. |
Material | Mineral. |
Dimensions | |
Length | Manufacturer guidanceConsult manufacturer and insert requirements. |
Width | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thickness (minimum) | 5 mm. 10 mm. 15 mm. 20 mm. 25 mm. |
Compressive stress (maximum) | 355 MPa. Manufacturer guidanceTo EN ISO 604: 20°C: 400 MPa. 550°C: 200 MPa. |
Holes | Guidance for specification option: Consult manufacturer and insert requirements. |
Thermal conductivity (to EN 12667) | 0.2 W/m·K. |
Density | 2160 kg/m³. Manufacturer guidanceTo EN 1602. |
Fire rating (to BS EN 13501) | A2-s1, d0 limited combustibility. |
Standards | To EN 13501-1; To EN ISO 604; To EN 826; To EN 12667; To EN 1602. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Material | Mineral |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 0.43 (kg CO₂ eq/kg) Declared unit : 0.43 | |
Recyclability | fully reusable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
Literature

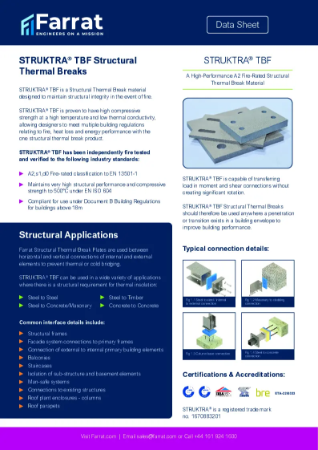

Farrat TBF Datasheet
