c-lever Compact - Electronic Door Lever
Verified by manufacturer 1 month ago
EPD
Certificate type
Electronic door lever offering an overview about who can enter where and when.
Application
Offices, administrations, gyms, guest houses, schools, retail stores.
Description
Electronic door lever offering an overview about who can enter where and when.
Features and benefits:
- Operates in standalone or remotely in wireless mode and is made for interior doors like offices.
- Combinable with other dormakaba products.
- Battery-operated door lock is made for any kind of interior door like glass, wood, metal or CPL doors.
- Can be installed in an upside-down position which helps on limited spaces such as on glass doors or when the cylinder is located above the lever handle.
- Access rights can be set easily and changed whenever needed, accurately in time and location. Simply present an authorized badge, smart key, fob with RFID or a smartphone and open the door as usual by pushing the door lever.
General information
Color | Silver Guidance for specification option: Main handle. Black Guidance for specification option: Cover plate. White Guidance for specification option: Cover plate. |
Finish | Stainless steel |
Material | Stainless steel Guidance for specification option:
Zinc |
Shape | Rectangle |
Length | 21.9 mm Guidance for specification option: Depth. |
Width | 54.7 mm |
Height | 122.8 mm |
Warranty description | Two year |
Uniclass | |
CAWS | P21/26 Special function door locks P21/530 Special function door locks |
Specification data - Special function door locks
Classification data | |
Lock type | C-leve |
Category of use | |
Standard | Building hardware: EN 16867: 3 7 - B 2 4 D 0 0. Fire/ smoke protection: tested in accordance with EN 1634-1 and -3. Emergency exit: EN 179 (in combination with appropriate lever handles and locks). |
Backset | Minimum backset 30 mm, dependent on door or lock. |
Material and finish | Stainless steel and zinc. Guidance for specification option:
|
Antenna cover | Synthetic material, black. Synthetic material, white. |
Other requirements | Button. Guidance for specification option: Functions which require the button: Pass mode, pass-lock, escape return, closing the room from the inside with the button. Door handle contact. Guidance for specification option: This is used to monitor the inside lever handle. The door handle contact is installed in the internal fitting. Functions which require the door handle contact: Escape return and door monitoring including door handle contact. Door monitoring. Guidance for specification option: Door monitoring is carried out via the connection board. HAC. Mobile Access. Guidance for specification option: A mobile device is used to gain access. The lock/door can be opened manually with the access authorisation. Access authorisation is given both optically and acoustically. S-module. Guidance for specification option: The behaviour of the device can be changed by means of the contact connected to the input of the S-module. The contact overrides the authorizations and activates the behaviour defined in the system software. The S-module has a connection for an external power supply to supply the device. Wireless. |
Dimensions | 54.7 x 122.8 x 21.9 mm. Guidance for specification option: Width x height x depth. |
Power supply | Two batteries 1.5 V AAA L92, FR03. |
Battery capacity | Battery life at 20°C: up to 60 000 cycles or up to three years. |
HeatingRelativeHumidity | 0–95%, non-condensing. |
Ingress protection | IP54. Guidance for specification option: Internal IP40. |
Suitable environment | Unsuitable for use in highly corrosive atmospheres (chlorine, ammonia). Not to be used in potentially explosive environments. |
Temperature | -25 to +70°C. |
Communications | · RFID: LEGIC advant, ISO 14443A; MIFARE DESFire, ISO 14443A; OSS-SO Version 2021-06: LEGIC advant, MIFARE DESFire. · Mobile: Near Field Communication (NFC); Bluetooth® Low Energy (BLE) · Wireless technology: IEEE 802.15.4, 2.4 GHz. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel Guidance for specification option:
Zinc |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 13.4 | |
Product certifications
Product certifications
EPD

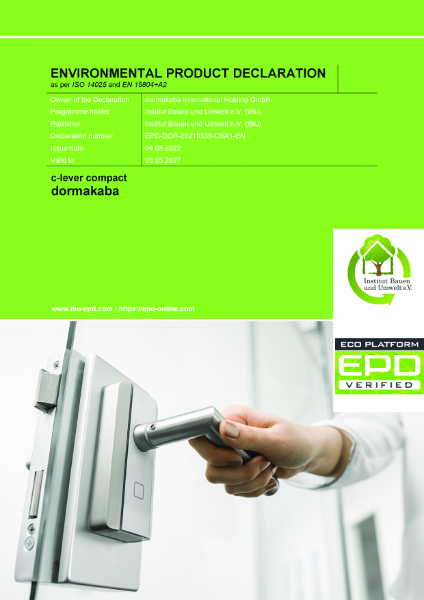

EPD C- lever compact
Literature

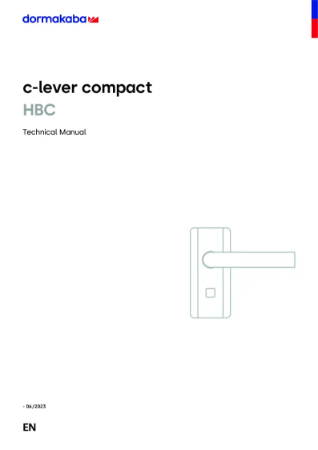

Technical manual Compact
