Ancon Teplo Wall Tie
Verified by manufacturer 1 month ago
Ancon Teplo-BF1 (Type 1)
Ancon Teplo-BF1 (Type 1)
BBA Agrément Certificate
Certificate type
Low thermal conductivity masonry wall tie.
Application
Suitable for use in new-build cavity walls, the Ancon Teplo-BF has moulded safety ends, which offers improved buildability and mortar bond strength, making it more user-friendly and suitable even in slow drying lime mortars.
Description
Low thermal conductivity 'basalt fibre' wall tie set in epoxy resin with a sanded finish.
Features and benefits:
- Rod format with central drip.
- Structural performance: Choice of types to PD 6697: 2010.
- Fire resistance: Generally equivalent to steel. Consult Leviat.
- Cavity width: 50–450mm.
- Thermal conductivity: 0.7 W/mK.
General information
Color | Black |
Material | Fibre Guidance for specification option: Pultruded basalt fibre. |
Length | 200 mm 225 mm 250 mm 275 mm 300 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F30/214 Cavity wall ties F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties F30/24 Cavity wall ties F30/25 Cavity wall ties used with partial fill insulation F30/26 Wall ties |
Product range |
Specification data - Cavity wall ties
Classification data | |
Tie type | PD 6697 Type 1 (Masonry – heavy duty). |
Material | Pultruded basalt. |
Length | 200 mm. Guidance for specification option: Cavity Width: 50-75 mm. 225 mm. Guidance for specification option: Cavity Width: 76-100 mm. 250 mm. Guidance for specification option: Cavity Width: 101-125 mm. 275 mm. Guidance for specification option: Cavity Width: 126-150 mm. |
End types | Other end type. Guidance for specification option: Moulded safety ends, which offers improved buildability and mortar bond strength, making it more user-friendly and suitable even in slow drying lime mortars. |
Design embedment length (minimum) | 62.5 mm Guidance for specification option: Recommended to achieve a design embedment of between 62.5 mm and 75 mm in each leaf, to allow for site tolerance in both cavity width and centring of the ties. |
Additional requirements | |
Resistance to water crossing cavity | Resistant. Guidance for specification option: O-ring drip. |
Compressive load capacity | 2000 N. |
Tensile load capacity | 2500 N. |
Tie-mounted insulation retaining clips | Teplo-clips. |
Thermal Conductivity: | 0.7 W/mK. |
Third party accreditation | BBA Agrément Certificate, 14/5160. |
Sustainability data
Material | Fibre Guidance for specification option: Pultruded basalt fibre. |
Product certifications
BBA Agrément Certificate
Ancon Teplo-BF and BFR Wall Ties
Literature
Wall Ties and Restraint Fixings

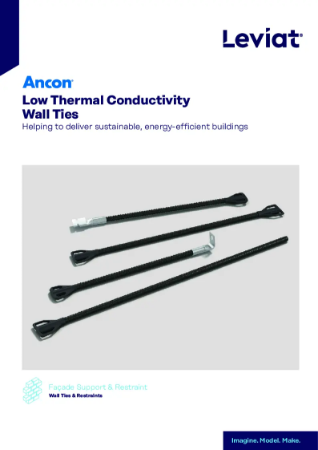

Ancon Low Thermal Conductivity Wall Ties
