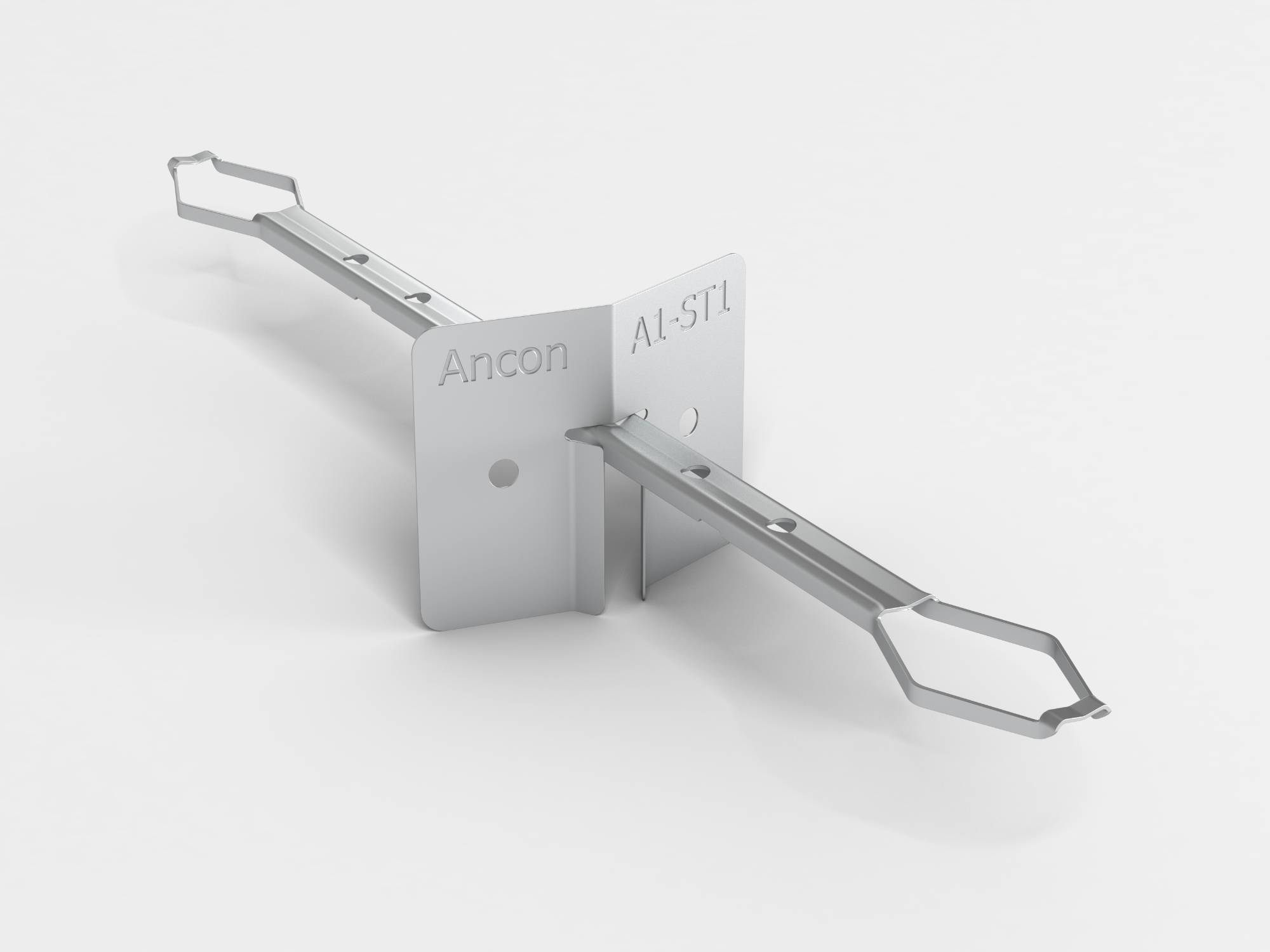

Ancon A1-ST1 Non-Combustible Insulation Retaining Clip

Name: Ancon A1-ST1 Non-Combustible Insulation Retaining Clip
Brand: Leviat
SKU: 8WBnGvn5SSxysi5iuA6FDQ

Verified by manufacturer 2 months ago

Non-combustible stainless steel insulation retaining clip for use in buildings over 15 m in combination with the Ancon ST1 heavy-duty wall ties.

Jump to:

+44 (0) 114 275 5224 Website

Application

Designed specifically for use in combination with the Ancon ST1 wall tie, particularly within high-rise buildings over 15 m in height, requiring non-combustible components for compliance with Building Regulations. Suitable for all insulation types.

Description

The Ancon A1-ST1 Clip is a non-combustible stainless steel insulation retaining clip specifically designed to fit the Ancon ST1 heavy-duty wall tie. It offers specifiers and contractors a robust A1 fire-rated alternative to the Ancon Staifix Uni clip for cavity wall systems in projects where non-combustible components are required in order to comply with the Building Regulations Approved Document B (ADB).

Made from high tensile strength spring steel, the Ancon A1-ST1 clip is fully formed and ready for use straight out of the box, simplifying and speeding up installation on site.

Features and benefits:

Made from stainless spring steel - rated 'A1' for reaction to fire.
Excellent corrosion resistance.
60-year design life.
Designed to fit the Ancon ST1 Type 1 wall tie for robust and reliable insulation retention.
Delivered to site pre-formed and ready for installation.
Quick and simple installation - rotate the clip onto the tie and slide into place.
Rounded edges for safety.

General information

Color	Silver
Finish	Stainless steel
Material	Stainless steel Guidance for specification option: Grade 1.4310.
Shape	Square
Width	80 mm
Height	65 mm
Warranty description	60 year

Uniclass	Pr_20_85_84_19 Cavity wall tiesPrimary
CAWS	F30/214 Cavity wall ties F30/24 Cavity wall ties F30/25 Cavity wall ties used with partial fill insulation F30/215 Cavity wall ties used with partial fill insulation

SKU Code	A1-CLIP-ST1

Specification data - Cavity wall ties

Classification data
Material	Stainless spring steel, grade 1.4310.
Thickness	0.5 mm.
Dimensions	80 x 65 mm. Manufacturer guidance Width x height.
Reaction to fire	To EN 13501-1, Class A1.
Suitable for	Use with Ancon ST1 wall tie.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Manufacturing plant location	Sheffield, UK
Material	Stainless steel Guidance for specification option: Grade 1.4310.
Expected Life	Lifetime
