Walraven Maxx Heavy Duty Modular Frame System - Modular Support System

Name: Walraven Maxx Heavy Duty Modular Frame System - Modular Support System
Brand: Walraven Ltd
SKU: hP695TjpG9gXqysmdTes9z

Verified by manufacturer 2 months ago

Walraven Ltd

Product certifications:

EPD
Certificate type

Heavy duty box frame, modular support system for indoor and outdoor us. Safe, strong, versatile, and corrosion-resistant system designed for load-bearing applications.

Jump to:

+44 (0)1295 753400 Website

Application

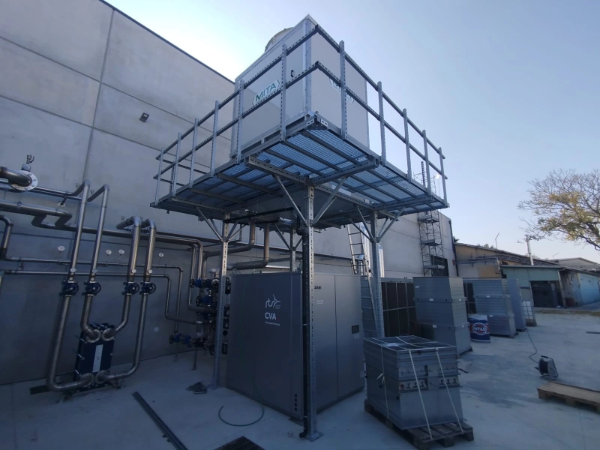

For easy 3D construction of heavy duty or load bearing frames. For plant rooms, pipe bridges, HVAC support frames, risers, multi-service corridors or tunnels, rooftops and other industrial installations.

Description

Modular support system for easy 3D construction of load-bearing support frames.

Features and benefits:

Closed square profile
For heavy loads
Torsional stiffness for high safety
Cut-to-length service on request (contact manufacturer's Technical Sales Service)

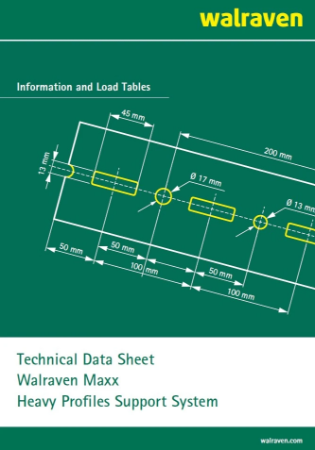

With continuous perforation on all sides.
Material: steel 1.0039 (S235JRH).
Hot dip galvanized.
Can be used with Walraven Maxx base plate (specified separately).

General information

Color	Silver
Finish	Galvanized
Material	Carbon steel
Shape	Square Rectangle
Length	6000 mm
Width	80 mm 100 mm 120 mm 150 mm
Height	80 mm 100 mm

Uniclass	Pr_20_76_51_12 Carbon steel beams, columns, channels and teesPrimary Pr_80_77_27_15 Channel supports
CAWS	S90/815 Supports for exposed thermoplastics pipework S90/810 Supports for copper and stainless steel pipework G10/150 Steel framing system

Specification data - Carbon steel beams, columns, channels and tees

Classification data
Standard	-
Grades and qualities	S235JRH.
Corrosion protection	-
Galvanizing	-
Standard	Hot-dip galvanized.
Coating thickness (minimum)	Manufacturer's standard.
Dimensional tolerances	Manufacturer's standard.
Size	80 x 80 mm. Guidance for specification option: MX80. Wall thickness: 3 mm. 100 x 100 mm. Guidance for specification option: MX100. Wall thickness: 3 mm. 100 x 120 mm. Guidance for specification option: MX120. Wall thickness: 4 mm. 100 x 150 mm. Guidance for specification option: MX150. Wall thickness: 4 mm. Manufacturer guidance Profile.
Unit length	6 m. Cut to length. Guidance for specification option: Consult manufacturer and insert requirements.
Accessories	Other. Guidance for specification option: A wide range of accessories are available including: Matching base plate (specified separately). Beam clamp. U-shape bracket. Connectors. Hammerfix. End caps. Bolts. Consult manufacturer's literature and insert requirements. Walraven Maxx HF Hammerfix.
