Visqueen TorchOn Tanking Membrane - Waterproofing Membrane
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
DoP
Certificate type
DoP
Certificate type
Robust waterproofing membrane for heavy-duty tanking applications.
Application
- Suitable for use as a Type A Barrier Membrane for above and below ground applications such as basements, retaining walls and lift pits.
- It is also suitable for use in all types of buildings to prevent the ingress of harmful levels of ground gases e.g. methane, carbon dioxide and radon.
Description
A modified bitumen rubber tanking membrane. It has a sanded finish to the top surface and a heat dispersible film on the underside.
Features and benefits:
- Supplied as a 1 x 8 m roll.
- BBA certified - third-party accreditation.
- Type A Barrier Membrane (Tanking Membrane) - resistant to ground water in accordance with BS 8102:2022.
- Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 - industry standard for methane and carbon dioxide protection.
- Flexible - easy to detail and install on site.
- Multi-functional - also acts as a radon and damp-proof membrane.

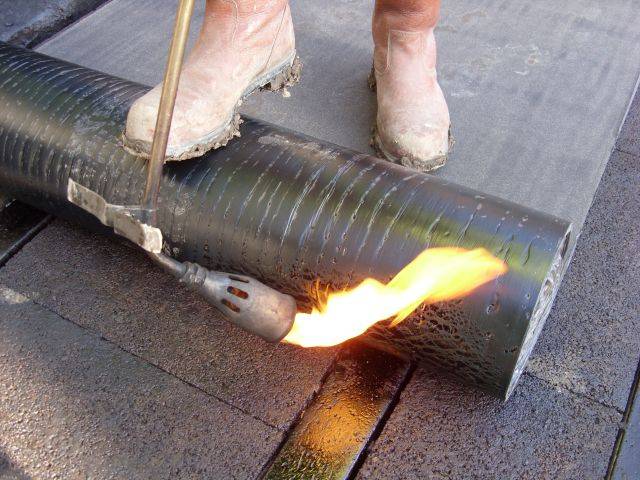

- Heat-bonded application - no jointing tapes required; ideal for cold and damp conditions.
General information
Color | Black |
Finish | Sanded |
Material | Bitumen |
Shape | Rectangle |
Length | 8000 mm |
Width | 1000 mm |
Height | 3.5 mm Guidance for specification option: Thickness. |
Warranty description | Guidance for specification option: See manufacturer's insurance document for warranty details. Consult manufacturer for further information. |
Uniclass | |
CAWS | J40/250 Fully bonded bitumen tanking membranes J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane |
Specification data - Bitumen sheets
Classification data | |
Standard | UKCA UKNI CE to EN 13969:2004. |
Third-party certification | BBA 14/5121 Product Sheet 1. |
Performance characteristics | Reaction to fire: Class F. Watertightness to 60 kPa for 24 hours, Pass. Durability (artificial ageing) to BS EN 1296 and BS EN 1928, Pass. Durability (heat ageing) to BS EN 1296, Pass. Water vapour transmission properties to BS EN 1931, 5.79 x 10E-6 kg/m²s. Resistance to static loading to BS EN 12730, 20 kg. Reaction to fire to BS EN 13505-1, Class F. Flexibility at low temperature to BS EN 12317-1, -15°C. Tensile properties to BS EN 12311-1/-2 (MD/CD), 900/ 900 N/50mm. Tensile elongation to BS EN 12311-1/-2 (MD/CD), 35%/35%. Methane permeability to ISO 15105-1, <40 mL/m²/d/atm. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Form | Gas-resistant tanking membrane. |
Weight (minimum) | 4.5 kg/m². |
Thickness (minimum) | 3.5 mm. |
Surface finishes | |
Top | Sanded finish. |
Underside | Heat dispersible film. |
Product reference | Visqueen TorchOn Tanking Membrane. |
Accessories | Visqueen HP Tanking Primer, 5L. Visqueen Pile Cap Sealer, 25 kg. VisqueenPro Detailing Strip, 300 mm x 10 m. Visqueen TreadGUARD 1500, 1 x 2 m. Visqueen IGW5 Waterstops. Visqueen IGW10 Waterstops. Visqueen NF-Detailing Strip, 300 mm x 10 m. Manufacturer guidanceConsult manufacturer's literature for details. Many options are available to specify separately. |
Roll size | 8 x 1 m. Manufacturer guidanceTo BS EN 1848-2. |
Application temperature | The manufacturer recommends that Visqueen TorchOn Tanking Membrane and all associated system components should not be installed below 5°C. However, due to the heat bonded installation method the system is more tolerant in cold weather working. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Bitumen |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 4 |
 IFC | IFC2X3 | 2 |
Product certifications
Certification type
BBA Agrément Certificate
BBA Certificate Visqueen TorchOn Tanking Membrane
DoP
Tanking CE Visqueen TorchOn Tanking Membrane Declaration of Performance
DoP
Tanking UKCA Visqueen TorchOn Tanking Membrane Declaration of Performance
