The R08 Tile Access Panel is a tile-faced wall access panel designed to provide discreet access to concealed building services behind ceramic tiled finishes.

Jump to:

BOS

+44 (0)24 7632 8811 Website

Application

Designed to provide discreet inspection and maintenance access to concealed building services behind ceramic tiled wall finishes. The moisture-resistant board-faced door and 25 mm beaded frame are designed to accept ceramic tiles, creating a flush, concealed appearance that blends seamlessly with surrounding wall tiling while maintaining easy access for future maintenance.

Suitable for use in:

Residential housing.
Apartment and multi-occupancy developments.
Hotels and leisure facilities.
Healthcare facilities.
Commercial offices.
Retail premises.
Educational buildings.
Public sector buildings.

Ideal for installation into tiled masonry walls, tiled plasterboard partitions and wet room wall systems, providing access to concealed mechanical, electrical and plumbing (MEP) services, including pipework, isolation valves, plumbing connections, electrical services, ductwork and control equipment. Particularly suited to bathrooms, shower rooms, wet rooms, kitchens, utility rooms and sanitary areas, where a concealed tiled finish is required. The R08 range is intended for non-fire-rated wall applications in both new-build and refurbishment projects.

Description

Download product information, technical data sheets and supporting documentation from Rapid Access:

Product Information:

Tile Access Panel – Beaded Frame – R08 Range

Datasheets:

Tile Access Panel – Beaded Frame – R08 Range

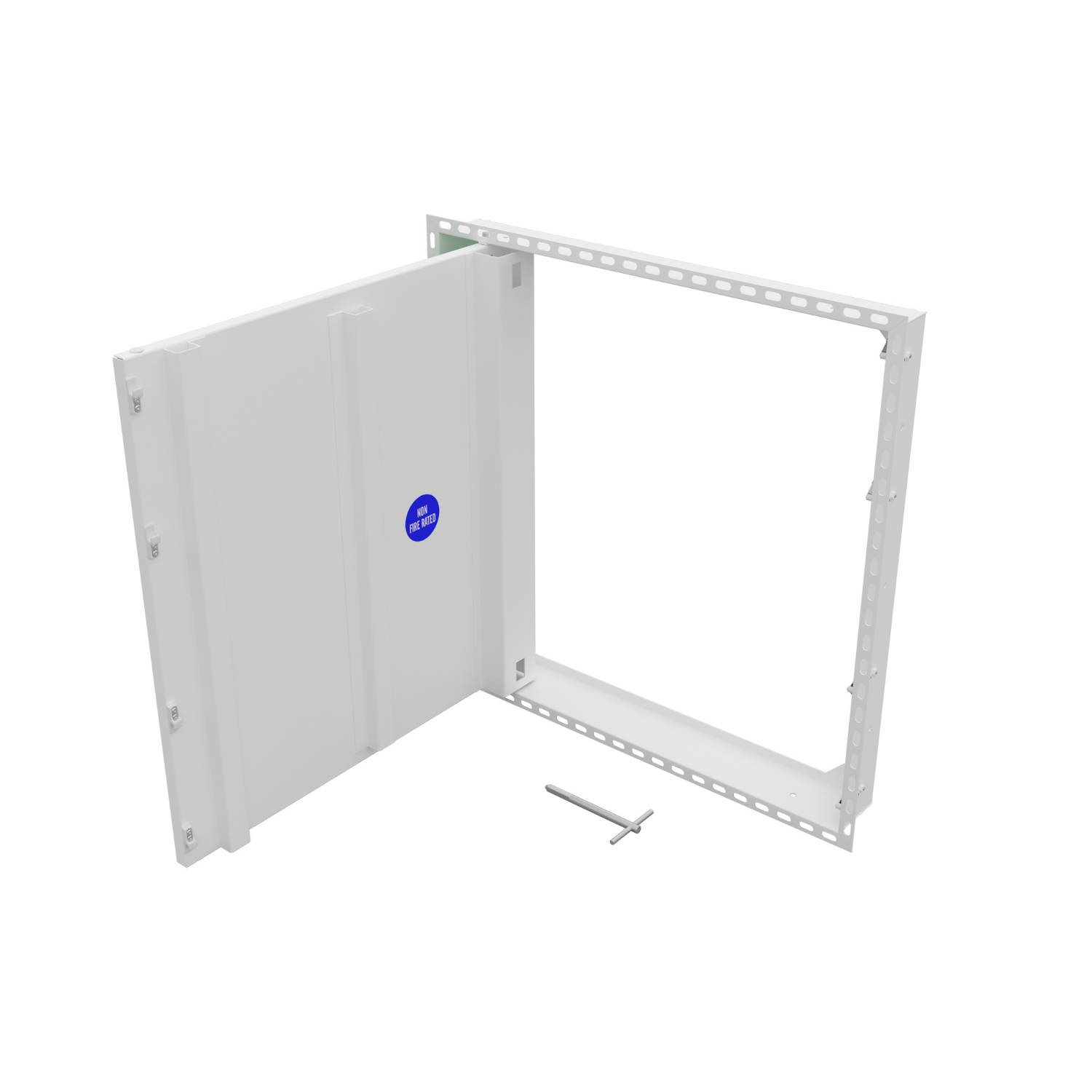

The R08 Tile Access Panel is a metal access panel designed to provide discreet access to concealed building services behind ceramic tiled wall finishes. Featuring a 25 mm beaded frame and a moisture-resistant board-faced door, the panel is designed to accept ceramic tiles, creating a flush, concealed finish that integrates seamlessly with surrounding wall tiling.

Manufactured from high-quality steel, the R08 range is supplied with a touch catch as standard, allowing tool-free access while maintaining a clean, handle-free appearance. Alternative locking options are available to suit specific project requirements. The frame is finished in a durable RAL 9010 (30% gloss) polyester powder coating as standard, with bespoke RAL colours and custom sizes available on request.

Designed exclusively for non-fire-rated wall applications, the R08 Tile Access Panel provides convenient access to concealed mechanical, electrical and plumbing (MEP) services while preserving the appearance of tiled interiors. It is ideal for bathrooms, shower rooms, wet rooms, kitchens and other tiled environments in residential, commercial, healthcare and hospitality projects.

Key Features

Steel tile access panel for tiled wall applications.
25 mm beaded frame for seamless integration with ceramic tiled finishes.
Moisture-resistant board-faced door suitable for ceramic tile application.
Touch catch supplied as standard with alternative locking options available.
Flush, concealed appearance once tiled.
Polyester powder-coated RAL 9010 (30% gloss) finish.
Bespoke sizes and alternative RAL colours available.
Non-fire-rated construction.
Manufactured from recyclable steel.

Installation

Designed for installation into tiled wall systems to provide concealed access to building services.

Prepare the structural opening in accordance with the manufacturer's installation instructions.
Install the panel before applying ceramic tiles.
Fix the frame securely using suitable mechanical fixings appropriate to the wall construction.
Apply ceramic tiles to the moisture-resistant board-faced door and surrounding wall finish to create a flush, concealed appearance.
Full installation guidance is available from Rapid Access.

General information

Color	White Guidance for specification option: RAL 9010 Other Guidance for specification option: Minimum and maximum size depends on the access panel type and application
Finish	Powder-coated
Material	Zintec steel Steel Metal
Shape	Square
Length	Bespoke Guidance for specification option: Minimum and maximum size depends on the tile access panel type and application.
Width	Bespoke Guidance for specification option: Minimum and maximum size depends on the tile access panel type and application.
Height	Bespoke Guidance for specification option: Minimum and maximum size depends on the tile access panel type and application.
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/430 Access panels

SKU Code	R08 - TD - BF

Specification data - Access panels

Classification data
Fire performance	-
Fire resistance	Non fire-rated.
Position	Wall-mounted.
Size	- Manufacturer guidance Minimum Size - 150 x 150 mm Maximum Size Single Door - 2400 x 1000 mm Maximum Size Double Door - 2400 x 1800 mm
Frame	Beaded frame.
Panel	-
Material	Steel.
Integral finish	Powder-coated. RAL 9010 (30% gloss). Guidance for specification option: As standard; other colours available on request.
Latch or lock type	Touch Catch.
Operation	Concealed steel hinges, outward opening.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Nuneaton, UK
Material	Zintec steel Steel Metal
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : Product manufactured in bespoke sizes; A1–A3 impact varies according to dimensions, specification and selected performance options. Manufactured from steel, the R08 Tile Access Panel is fabricated, assembled and finished with a durable RAL 9010 (30% gloss) polyester powder coating. Production includes steel forming, assembly of the moisture-resistant board-faced door, beaded frame, touch catch and locking hardware, followed by surface finishing, quality inspection and packaging. The principal material is recyclable steel, with recycled content dependent on the material supply chain. Bespoke sizes, alternative locking options and custom finishes are incorporated where specified.
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
