Solo Square is a free hanging unit, offering high level design possibilities. Three different suspension systems offer opportunities to create several layers and angles.
Application
"Suitable for use in buildings where the room volume could be maintained, or as an option when 'thermally activated building system' (TABS) is selected as a cooling system.
- Offices
- Education
- Hospitality and retail
- Atriums and high-ceilinged interiors
- Public buildings
Description
Ecophon Solo Square is an acoustic solution, primarily when it is not possible to install a wall-to-wall ceiling. The product is suitable in buildings where the room volume could be maintained, or as an option when 'thermally activated building system' (TABS) is selected as a cooling system.

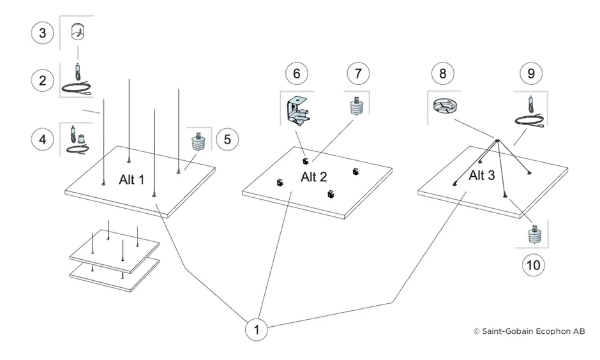

Solo Square is an unframed, free-hanging unit, offering a high degree of design possibilities – both regarding colours and suspension systems. The three different suspension systems are 'Adjustable wire hangers', 'One-point fixing' or 'Absorber brackets', in combination with the engineered connect absorber anchor (patent), which gives opportunities to create several layers and angles.
Features and benefits:
- The panel is manufactured from high-density, third-generation glass wool.
- Akutex™ FT surface on both sides.
- The edges are straight-cut and painted.
- Faster installation with laser projection – precise laser-guided projection; 3–7 times faster than traditional methods. Reduces errors and need for rework.
General information
Color | Beige Black Blue Brown Cream |
Finish | Painted |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
Shape | Square |
Length | 1200 mm |
Width | 1200 mm |
Height | 40 mm Guidance for specification option: Panel. Bespoke Guidance for specification option: System. |
Warranty description | Ten year Guidance for specification option: All Ecophon installations can be warranted for ten years. 50 year Guidance for specification option: Design life. |
Uniclass | |
CAWS | K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K45/12 Existing suspended ceiling system K40/10 Unit/ modular suspended ceilings K45/160 Board-suspended ceiling system alterations K45/120 Existing suspended ceiling system |
Specification data - Acoustic baffle suspended ceiling systems
Classification data | |
Ceiling support | Connect™ wire kit. Connect™ looped wire hanger. Connect™ looped wire hanger with covering cup. |
Support fasteners | Connect™ Absorber anchor. |
Ceiling units | Acoustic high-density glass wool panels, 1200 x 1200 x 40 mm. Manufacturer guidanceLength x width x thickness. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Colour/ Finish | White Frost. Guidance for specification option: Standard. Nearest NCS colour sample S 0500-N. Light reflectance 85%. Cloudy Day. Guidance for specification option: Nearest NCS colour sample S 1500-N. Light reflectance 62%. Dark Diamond. Guidance for specification option: Nearest NCS colour sample S 9000-N. Light reflectance 4%. Eucalyptus Leaf. Guidance for specification option: Nearest NCS colour sample S 5010-B30G. Light reflectance 23%. Fresh Clover. Guidance for specification option: Nearest NCS colour sample S 3020-G40Y. Light reflectance 35%. Goji Berry. Guidance for specification option: Nearest NCS colour sample S 3030-Y80R. Light reflectance 27%. Golden Field. Guidance for specification option: Nearest NCS colour sample S 1040-G90Y. Light reflectance 61%. Highland Fog. Guidance for specification option: Nearest NCS colour sample S 2005-G. Light reflectance 55%. Moonlight Sky. Guidance for specification option: Nearest NCS colour sample S 7020-R90B. Light reflectance 7%. Morning Drizzle. Guidance for specification option: Nearest NCS colour sample S 1002-B. Light reflectance 69%. Ocean Storm. Guidance for specification option: Nearest NCS colour sample S 4020-R90B. Light reflectance 24%. Peach Rose. Guidance for specification option: Nearest NCS colour sample S 1515-Y80R. Light reflectance 55%. Ruby Rock. Guidance for specification option: Nearest NCS colour sample S 4050-R10B. Light reflectance 7%. Sage Garden. Guidance for specification option: Nearest NCS colour sample S 3010-B30G. Light reflectance 40%. Scallop Shells. Guidance for specification option: Nearest NCS colour sample S 0804-Y50R. Light reflectance 76%. Silent Steam. Guidance for specification option: Nearest NCS colour sample S 2010-B. Light reflectance 45%. Silk Slate. Guidance for specification option: Nearest NCS colour sample S 7000-N. Light reflectance 13%. Silver Stone. Guidance for specification option: Nearest NCS colour sample S 4502-Y. Light reflectance 29%. Summer Forest. Guidance for specification option: Nearest NCS colour sample S 6030-G10Y. Light reflectance 10%. Sunset Heat. Guidance for specification option: Nearest NCS colour sample S 2070-Y60R. Light reflectance 20%. Volcanic Ash. Guidance for specification option: Nearest NCS colour sample 2002-Y. Light reflectance 56%. Wet Sand. Guidance for specification option: Nearest NCS colour sample S 3020-Y30R. Light reflectance 35%. |
Appearance | Light reflectance (LRV): LRV values will vary according to the selected colour/ finish and are applicable to both faces of the raft in accordance with BS 8493:2008+A1:2010. |
Weight | 3.4–4.6 kg/m². |
Indoor climate | Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1. Eurofins Indoor Air Comfort® IAC. |
Carbon footprint | Life-cycle stages A1 to C4 from EPD, in conformity with ISO 14025/ EN 15804: 9.37 kg CO₂ equiv/m². |
Circularity | Minimum post-consumer recycled content 53% Recyclability: fully recyclable. |
Moisture resistance | Class C, relative humidity 95% and 30°C, according to EN 13964:2014. |
Fire safety | Complies with BS EN 13501-1, Class A2-s1, d0. |
Sound absorption | In accordance with EN ISO 354:2003. Guidance for specification option: Consult manufacturer for details. |
Cleaning | The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping. |
Standard | Ecophon ceiling systems are CE marked according to the European harmonized standard EN 13964:2014. |
System height | Guidance for specification option: Insert requirements, minimum 140 mm. |
InstallationMethod | M402, wire. Manufacturer guidanceConsult manufacturer's installation literature for details. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | High-density glass wool Guidance for specification option: All Ecophon products are glass wool made from a recycled glass with a high recycled content (High-density glass wool). |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 8.37 Manufacturer guidanceSee Environmental Product Declaration Certificate for further details. | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 53 % |
Expected Life | 30 year |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Certification type
EPD
Solo - Environmental Product Declaration - Expire 2025
Indoor Air Comfort – Eurofins
Ecophon Eurofins Certificate - Solo - Indoor Air Comfort - Plant - 29th January 2029
HPDC Certification
Ecophon Solo Health Product Declaration Certificate
EPD
Ecophon Certificate of Recycled Content of products - September 2022
Cradle to Cradle Certified
Ecophon Acoustic Ceiling Solutions Certificate - Bronze level - Cradle to Cradle
Cradle to Cradle Certified
Ecophon C2C Certified Material Health Certificate - Silver level - Cradle to Cradle
M1 emission classification
M1 Certificate - All Ecophon products
ISO 14021:2016
bsi ISO 14001:2015
European Technical Approvals
Ecophon Compliance EU Taxonomy Regulation Appendix C
Health & Safety Accreditation
Safety Data sheet Ecophon Acoustic Products
Literature
Literature type

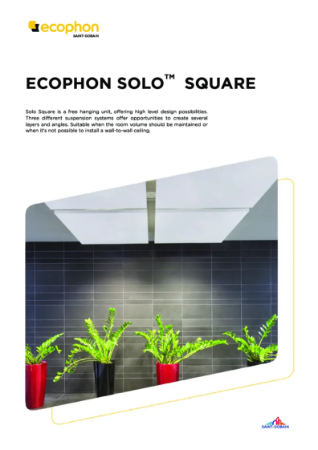

Data Sheet - Solo Square
Ecophon Solo Health Product Declaration Certificate
Solo Declaration of Performance Certificate November 2025
CPD materials
Acoustics in Education - Universal Acoustic Design
A Sound Effect on People - Acoustics Podcast
Designing for Dementia and Ageing
Impact of Acoustics on Hospital Care and Recovery
Office Acoustic Design with an Introduction to Psychoacoustics
Psychoacoustics in the Workplace
Room Acoustics- Connecting to Design
Case studies
University-of-Pretoria
Deloitte Churchill Square
Elementary-school-majernikova
Netapp-office
Pure Storage.
Sberbank Main Office
Antrim-Fitness-Forum
Sandilands Primary School
AppAgent study - Good acoustics improve performance and customer satisfaction
Sparkasse Bank Mühlbach
Fife College
Galashiels Community Campus
PTS Group office
Oracle Aviatica Office

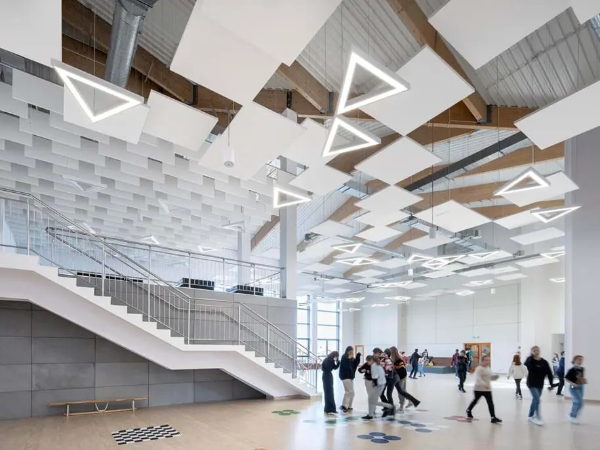

A fairy tale school? No, just a new generation school in Zamienie, Poland
Games Design and Development, Ulster University

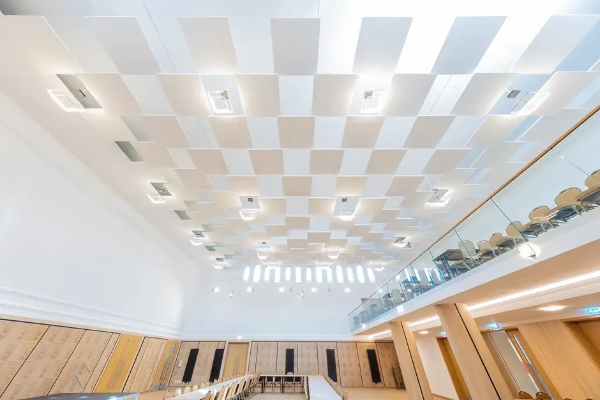

House of Culture

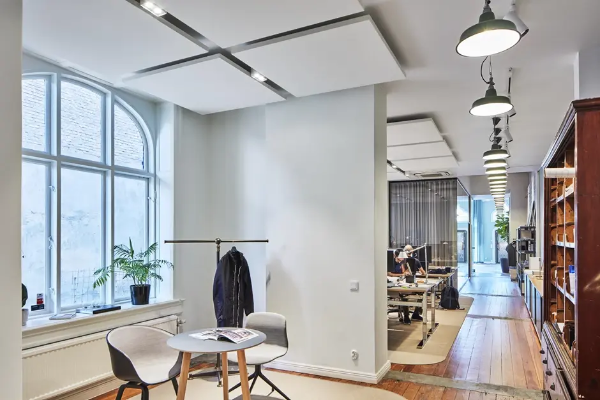

Jakobsson Pusterla Architects office
