Solo Rectangle Line acoustic raft - Acoustic Raft with Recessed Luminaire

Name: Solo Rectangle Line acoustic raft - Acoustic Raft with Recessed Luminaire
Brand: Saint-Gobain Ecophon
SKU: mya4VFWyp772rezXingzRF

Verified by manufacturer 2 days ago

Saint-Gobain Ecophon

Product certifications:

M1 emission classification
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
EPD
Certificate type
Cradle to Cradle Certified
Certificate type
Cradle to Cradle Certified
Certificate type
European Technical Approvals
Certificate type
Health & Safety Accreditation
Certificate type

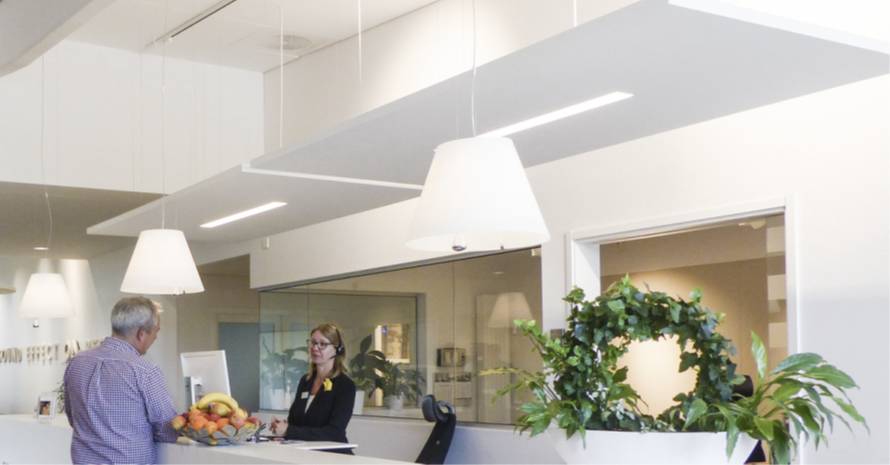

A free-hanging acoustic unit with an integrated recessed luminaire adding directional emphasis.

Jump to:

+44 (0)1256 855250 Website

Application

Suitable for various applications such as open plan solutions, lunch areas or conference and meeting areas.

Offices
Education
Retail
Hospitality
Public and commercial spaces
Exposed soffits

Description

Solo Rectangle Line is a free-hanging acoustic unit with an integrated recessed luminaire. A combination of Ecophon Solo Rectangle and Ecophon Line.

Features and benefits:

Superior acoustic qualities.
Straight, painted edge.
High level of output and integrated solutions give a distinctive expression.
Faster installation with laser projection – precise laser-guided projection; 3–7 times faster than traditional methods. Reduces errors and need for rework.

General information

Color	White
Material	High-density glass wool
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Height	40 mm Guidance for specification option: Panel only. Bespoke Guidance for specification option: System.
Warranty description	Ten year 30 year Manufacturer guidance All Ecophon installations can be warranted for ten years.

Uniclass	Ss_30_25_22_01 Acoustic baffle suspended ceiling systemsPrimary Ss_30_25_22_70 Raft or island suspended ceiling systems
CAWS	K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K45/12 Existing suspended ceiling system K40/10 Unit/ modular suspended ceilings K45/160 Board-suspended ceiling system alterations K45/120 Existing suspended ceiling system

SKU Code	Solo Rectangle Line acoustic raft

Specification data - Acoustic baffle suspended ceiling systems

Classification data
Ceiling support	Connect™ Adjustable wire hanger.
Support fasteners	Connect™ Absorber anchor.
Ceiling units	Acoustic high-density glass wool panels with integrated recessed luminaire; 2400 x 1200 x 40 mm. Manufacturer guidance Length x width x thickness.
Samples required	- Manufacturer guidance Insert requirements or omit.
Colour/ Finish	White Frost. Guidance for specification option: Nearest NCS colour sample S 0500-N, 85% light reflectance. Gloss <1.
Appearance	Light reflectance value (LRV): Selected finish, based on colour chosen, shall achieve the required LRV to both faces of the raft in accordance with the BS 8493:2008+A1:2010.
Indoor climate	Eurofins Indoor Air Comfort® IAC. Certified as A by French VOC. Emission classification of building materials: M1.
Moisture resistance	Class A, relative humidity 70% and 25°C, according to EN 13964:2014.
Fire safety	To EN 13501-1, Class A2-s1, d0.
Sound absorption	To EN ISO 354:2003, Class A absorption.
Connection	Standard on/off electronic HF ballast: delivered with 2.5 m of cable and grounded plug. SwitchDIM/DALI: No cable.
Electrical	220–240 V, 50–60 Hz, power factor cos φ >0.98. Electronic HF ballast or electronic HF dim ballast for digital regulation. Light source: LED module of 26.7 W total. Approvals: IP20, Class 1.
Lighting	System effect: 29.4 W. Light source: LED 26.7 W. Luminous flux: 2337 lm. Light efficiency: 87,5 lm/W. Colour temperature: 4000 K. Colour rendering index: Ra ≥80. Colour tolerance: MacAdam ≤3 SDCM. Light output ratio (LOR): 100%. Light distribution up/down: 0/100. Expected lifespan: L90 >50 000 h. Expected lifespan: L70 >100 000 h.
Cleaning	Cleanability: · Daily dusting and vacuum cleaning. · Weekly wet wiping.
Circularity	Minimum post-consumer recycled content: 57%. Recyclability: fully recyclable.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	High-density glass wool
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 8.12
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	57 %
Expected Life	30 year
