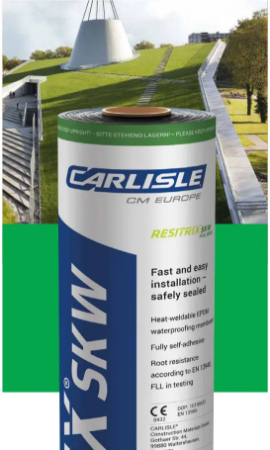

Name: RESITRIX® SKP/SKW Warm Roof Adhered - Single Layer Roof Covering System
Brand: Carlisle Construction Materials Limited
SKU: 7fHZYkThzVjCN1XWbzJc1G

Color

Black

Finish

Textured

Material

EPDM

Shape

Rectangle

Square

Other

Length

10000 mm

Width

1000 mm

Height

Bespoke

Warranty description

Manufacturer guidance

Guarantee options could include ‘Product’, ‘Product and Workmanship’ Guarantees. All guarantees available for this system are subject to the works being carried out in accordance with the Carlisle specification and being installed by a Carlisle Approved installer. For full details and further information regarding guarantees and alternative systems please contact Carlisle info.uk@ccm-europe.com

Uniclass

Ss_30_40_30_80 Single layer sheet warm roof covering systemsPrimary

CAWS

J42/10 Warm deck roof covering

J42/110 Warm deck roof covering

Classification data

Preparation

Horizontal work

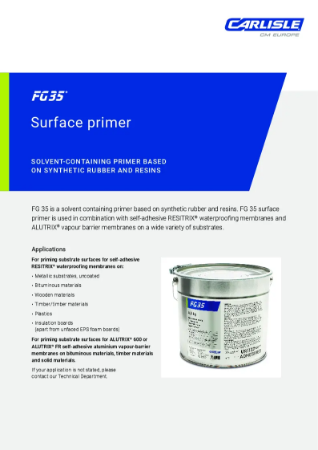

FG 35 surface primer.

Guidance for specification option:

Black, solvent-containing primer based on synthetic rubber and resins.

For priming substrate surfaces for self-adhesive RESITRIX® waterproofing membranes on:
- Metallic substrates, uncoated;
- Bituminous materials;
- Wooden materials;
- Timber/timber materials;
- Plastics;
- Insulation boards (apart from unfaced EPS foam boards).
For priming substrate surfaces for ALUTRIX® 600 or ALUTRIX® FR self-adhesive aluminium vapour-barrier membranes on bituminous materials, timber materials and solid materials.

FG 40 surface primer.

Guidance for specification option:

For full-surface priming of substrate surfaces for direct self-adhesive laying of RESITRIX® SK W Full Bond on thermal insulation made from unfaced polystyrene foam boards without factory fitted bitumen lamination or bitumen deck.

Colour: blue.

Not required.

Manufacturer guidance

Where appropriate, lightly-soiled substrates to be cleaned using RESITRIX® G500 cleaner. See System accessories.

Skirtings and vertical work

As Horizontal work.

Air and vapour control layer

Type

ALUTRIX® 600 vapour barrier.

Guidance for specification option:

Consult manufacturer's datasheet for details.

Attachment

Self-adhesive.

Insulation

Type

CCM T INS-25 tissue-face thermal insulation, 25 mm thick.

Guidance for specification option:

R-value: 0.96 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-30 tissue-face thermal insulation, 30 mm thick.

Guidance for specification option:

R-value: 1.15 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-40 tissue-face thermal insulation, 40 mm thick.

Guidance for specification option:

R-value: 1.50 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-50 tissue-face thermal insulation, 50 mm thick.

Guidance for specification option:

R-value: 1.90 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-60 tissue-face thermal insulation, 60 mm thick.

Guidance for specification option:

R-value: 2.30 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-70 tissue-face thermal insulation, 70 mm thick.

Guidance for specification option:

R-value: 2.65 m²K/W.

Thermal conductivity: 0.026 W/m·K.

CCM T INS-80 tissue-face thermal insulation, 80 mm thick.

Guidance for specification option:

R-value: 3.20 m²K/W.

Thermal conductivity: 0.025 W/m·K.

CCM T INS-90 tissue-face thermal insulation, 90 mm thick.

Guidance for specification option:

R-value: 3.60 m²K/W.

Thermal conductivity: 0.025 W/m·K.

CCM T INS-100 tissue-face thermal insulation, 100 mm thick.

Guidance for specification option:

R-value: 4.00 m²K/W.

Thermal conductivity: 0.025 W/m·K.

CCM T INS-110 tissue-face thermal insulation, 110 mm thick.

Guidance for specification option:

R-value: 4.40 m²K/W.

Thermal conductivity: 0.025 W/m·K.

CCM T INS-120 tissue-face thermal insulation, 120 mm thick.

Guidance for specification option:

R-value: 5.00 m²K/W.

Thermal conductivity: 0.024 W/m·K.

CCM T INS-130 tissue-face thermal insulation, 130 mm thick.

Guidance for specification option:

R-value: 5.40 m²K/W.

Thermal conductivity: 0.024 W/m·K.

CCM T INS-140 tissue-face thermal insulation, 140 mm thick.

Guidance for specification option:

R-value: 5.80 m²K/W.

Thermal conductivity: 0.024 W/m·K.

CCM T INS-150 tissue-face thermal insulation, 150 mm thick.

Guidance for specification option:

R-value: 6.25 m²K/W.

Thermal conductivity: 0.024 W/m·K.

CCM T INS-160 tissue-face thermal insulation, 160 mm thick.

Guidance for specification option:

R-value: 6.65 m²K/W.

Thermal conductivity: 0.024 W/m·K.

Manufacturer guidance

Compression strength: exceeds 150 kPa at yield.
Moisture vapour resistance: installed value of 15 MN·s/g.
Fire performance: Class 1 to BS 476-7.
Dimensions (length x width): 1200 x 600 mm.
Available as tapered insulation board.
Facing: perforated mineral coated glass fibre tissue to both sides.
Certification: LPCB (LPS 1181) approved.

Attachment

Manufacturer's standard.

Waterproof covering

Type

RESITRIX® SK W Full Bond.

Attachment

Self-adhesive.

Joints

Welded jointing of waterproof membrane.

Surface protection

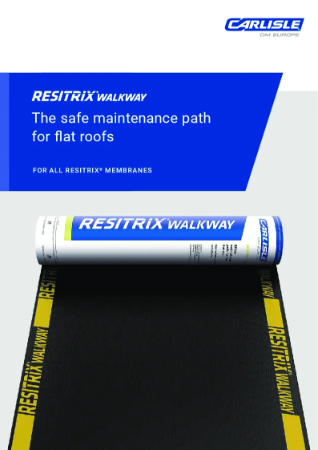

RESITRIX Walkway.

Guidance for specification option:

A slip-resistant safety overlay based on EPDM with an additional glass mesh reinforcement for perforation protection and dimensional stabilisation, as well as a self-adhesive polymer bitumen layer on the underside.

Consult manufacturer's literature for details.

Not required.

System accessories

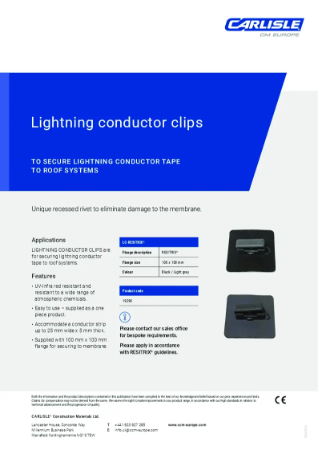

Lightning conductor clips.

RESIFLEX® SK expansion joint sealing strips.

RESIFLEX® 3D expansion joint sealing strips.

Pipe penetration sleeves (5–30 mm).

Pipe penetration sleeves (35–100 mm).

Ready-made detailing.

Guidance for specification option:

Ready-made punched parts for sealing round fitted parts and for constructing any corners. The cut pieces are punched from the RESIFLEX® SK self adhesive expansion-joint sealing strip.
Available in round, kidney and tongue/ oval shapes for a range of applications; consult manufacturer and insert requirements.

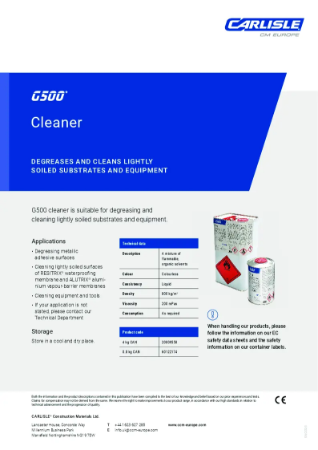

RESITRIX® G500 cleaner.
