Promat - PROMATECT®-250 - Mezzanine Floor System - MZ P250-REI90-001S

Name: Promat - PROMATECT®-250 - Mezzanine Floor System - MZ P250-REI90-001S
Brand: Promat UK
SKU: oG5g3opKUHJe1gkd1gfQzn

Verified by manufacturer 1 month ago

Promat UK

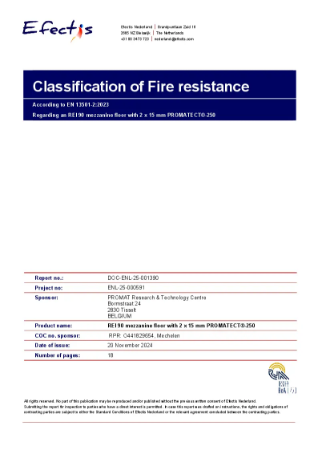

Product certifications:

EN 13501-2
Certificate type

REI90 loadbearing floor/ceiling system using PROMATECT®-250 boards on steel C‑joists with P6 chipboard, delivering 90‑minute fire resistance from below including structural member protection.

Jump to:

0800 145 6033 Website

Application

Fire-rated loadbearing floor/ceiling assemblies in commercial, residential, and industrial buildings requiring 90-minute fire protection from below, including protection of structural floor members.

Suitable applications include:

Warehouses.
Industrial buildings.
Retail.
Self-storage.
Modular.

Description

Twin 15 mm PROMATECT®-250 ceiling boards on 141 x 54 x 1.3 mm steel C‑joists at ≤600 mm centres, 38 mm P6 deck, steel cleats and M12 tie bars, achieving REI90 (loadbearing, integrity, insulation).

Features and benefits:

Classification: REI90 (Fire from below):
- Loadbearing capacity: 90 minutes.
- Integrity: 90 minutes.
- Insulation: 90 minutes.
Flooring: 38 mm P6 chipboard.
Framing: 141 x 54 x 1.3 mm steel C-joists at maximum 600 mm centres supported with minimum 110 x 125 x 4 mm steel cleats and minimum M12 steel threaded rod tie bar, nuts and washers at mid-span bracing all pairs of intermediate joists.
Ceiling: Two layers of 15 mm PROMATECT^®-250 boards fixed below the joists. No coverstrips or fillet strips required.

Note - system is also capable of providing fire resistance to structural members within the floor.

General information

Color	White
Finish	Matt
Material	Calcium silicate
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Etex Building Performance Limited warrants that it’s products and component parts shall be durable and free from defects due to faulty manufacturing or factory workmanship. Etex Building Performance Limited also warrants that, when combined to form a system as detailed in the Project Pack specification document including associated CAD drawings and any other specific technical recommendations made in relation to this project, will meet the specified system performance. The full details of this warranty are covered in the Promat Warranty Document, available upon request.

Uniclass	Ss_30_25_10_10 Board suspended ceiling systemsPrimary
CAWS	K40/20 Board-suspended ceiling systems K40/135 Board-suspended ceiling system

SKU Code	MZ P250-REI90-001S

Specification data - Board suspended ceiling systems

Classification data
System performance	This system is capable of providing fire resistance to structural members within the floor. Manufacturer guidance Contact Promat Technical Services for more information.
Suspension grid fasteners	M12 steel restraining rods, complete with nuts and washers, installed at midspan to brace all pairs of intermediate joists.
Insulation	None.
Linings	-
Inner layers	15 mm Promat Promatect® 250. Manufacturer guidance Boards to be installed parallel to joists. Board layers to be staggered in both directions by a minimum of 600 mm.
Face layer	15 mm Promat Promatect® 250.
Fasteners	Inner Layer Fixings: minimum 3.5 x 32 mm long steel self drilling drywall screws at maximum 400 mm centres. Outer Layer Fixings: minimum 3.5 x 50 mm long steel self drilling drywall screws at maximum 200 mm centres.
Joint treatment	FSi Promat Pyrocoustic® Fire Resistant Sealant. Guidance for specification option: All boards abutting surrounding structure should be sealed using FSi Promat Pyrocoustic® Fire Resistant Sealant. All penetrations should use supporting constructions detailed in Promat literature unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products.
Supporting structure	Structural member: 141 x 54 x 1.3 mm steel C-joists at maximum 600 mm centres. Structural noggins: M12 steel restraining rods (minimum), complete with nuts and washers, installed at midspan to brace all pairs of intermediate joists Manufacturer guidance Steel C-joists must be supported via appropriate structure with 110 x 125 x 4 mm steel cleats and two M12 bolts.
Flooring	38 mm T&G structural P6 chipboard (minimum). Guidance for specification option: Fixed to joist with minimum 5.0 x 65 mm long steel screws at maximum 250 mm centres.
Strips	Cover strips: None.
Thickness	209 mm. Manufacturer guidance Nominal.
Finishes	Decorative. Guidance for specification option: Decorative finishes should be applied in accordance with Promat TDS 056 (https://www.Promat.com/en-gb/construction/documentation/) and the Promat Passive Fire Protection Handbook (https://www.Promat.com/en-gb/construction/tools-services/fire-protection-handbook/). Non-decorative. Guidance for specification option: None required to achieve quoted performances.
Fire resistance	To EN 13501-2, 90 REI. Manufacturer guidance Direction of the fire exposure: below only.

Sustainability data

Country of material origin	Belgium
Country of product manufacture	Belgium Manufacturer guidance Applies to the bulk board material only. Other components are from other countries. Consult manufacturer for details.
Material	Calcium silicate
Recyclability	Gypsum, calcium silicate and metal components can be recycled depending on the segregation of all materials.
