PAS68 HVM Impact Rated Bi-Folding Trackless Speed Gate
Verified by manufacturer 1 month ago
PAS68 Bi-Folding Speed Gate 40 mph – EAG01040
PAS68 Bi-Folding Speed Gate 40 mph – EAG01040

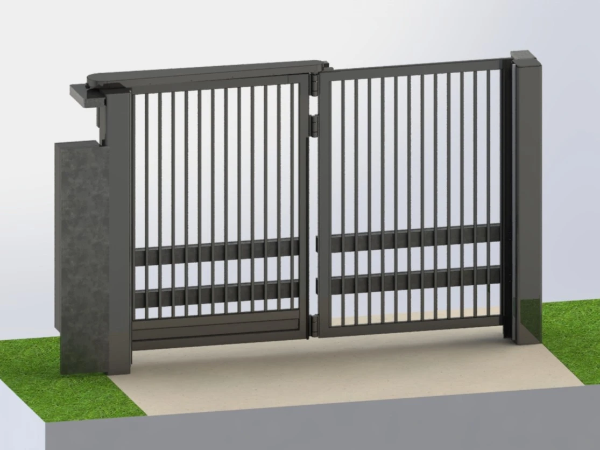

PAS68 Trackless Bi-Folding Speed Gate - EAG01040 / EAG01050
Application
Combining automated, crash-rated vehicle control with rapid and reliable operation, the system provides proven protection against hostile vehicle threat.
Designed for applications where a certified level of protection is mandatory, the PAS68 bi-folding speed gate is ideal for High Security and CNI sites including Data Centres, Airports, Utilities, Banking, Government, Military and Police facilities.
Description
The PAS68 HVM Impact Rated trackless bi-folding speed gate has been successfully crash rated to PAS68, stopping 7.5T vehicles travelling at 40mph (64kph) or 50mph (80kph), providing an effective hostile vehicle mitigation solution. The PLC controlled hydraulic drive ensures smooth, rapid opening and closing. The trackless design folding mechanism provides a synchronised movement whilst eliminating overhead height restrictions or high maintenance in-ground tracks. With shallow foundations and extremely low penetration, the system offers a practical, proven security solution.
Features and benefits:
- Crash rated to PAS68 - 7.5T at 40mph (64kph) and 50mph (80kph).
- Secure Before Impact (SBI)
- Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement.
- Hydraulic design with low maintenance and minimal moving parts.
- Integrated vehicle arrestor system.
- Supports power fencing and security toppings.
- Lightweight and cost effective.
- Lowest penetration and debris in its class.
- Shallow foundation depth of only 380 mm.
- Trackless design with no height restrictions and reduced maintenance.
- Operates in 10–15 seconds (through 90°) add 3 seconds for locking pin.
- Powder-coated finish.
- Multiple infill options for security and design.
General information
Color | Other Manufacturer guidanceProducts can be powder-coated to any RAL or BS reference. |
Finish | Powder-coated Manufacturer guidanceStandard finish for mild steel fabrication:
|
Material | Steel |
Shape | Rectangle Square |
Width | Bespoke Manufacturer guidanceMaximum width 4200 mm. Note: Maximum width may be subject to limitation for some infill options due to weight, combination with height, or wind loadings. Please contact manufacturer for further guidance. |
Height | Bespoke Manufacturer guidanceTypically, the height of the gate is 2400 mm or 3000 mm but can be designed to individual requirements with the manufacturer's in house design team. |
Warranty description | One year |
Uniclass | |
CAWS | Q40/40 Steel gates Q50/20 Gate Q50/15 Steel gate Q40/45 Proprietary gates Q50/130 Gate Q50/120 Steel gate Q40/570 Proprietary gates and posts Q40/560 Steel gates and posts |
SKU Code | EAG01040 |
Specification data - Carbon steel gates
Classification data | |
Product reference | PAS68 Bi-Folding Speed Gate. |
Performance characteristics | |
Security | Crash rated to PAS68: 7.5T (N2) @ 40 mph (64 kph). PAS68:2010 V/7500(N2)/64/90:0.8/0.0. |
Other | Factory compliant to BS EN 13241-1. Guidance for specification option: Safety device options include: Light curtain; laser scanner; CAT3 Safety edges; safety loops; traffic lights; audible sounder. |
Dimensions | |
Span | 4200 mm. Manufacturer guidanceConsult manufacturer and insert requirements.
|
Height | 2400 mm. 3000 mm. Bespoke. Manufacturer guidanceTypically, the height of the gate is 2400 mm or 3000 mm but can be designed to individual requirements with the manufacturer's in house design team. |
Posts | Rectangular hollow section (RHS) 400 x 200 mm. |
Gate leaves | See Gate infill below. |
Hardware | |
Hinges | Required. Guidance for specification option: Heavy duty included. Thrust and needle bearings with grease points. |
Securing | Hydraulically locked pin secures gate in closed position. Guidance for specification option: Secure before impact (SBI). |
Operating | Automatic – PLC controlled hydraulic system. Guidance for specification option: Manual operation in event of power failure. |
Finish as delivered | |
Worked finish | Blast cleaned, SA 2.5. |
Applied finish | Interpon D1036 polyester powder-coated (PPC) (or equivalent). |
Gate infill | Not required. Bar. Bar and welded mesh. Ornate. Palisade. Perforated steel sheet. Welded mesh. Special order. Guidance for specification option: Insert requirements. |
Primer | Interpon PZ790. Guidance for specification option: Or equivalent. |
Colour | Manufacturer guidanceProducts can be powder-coated to any RAL or BS reference. Insert requirements. |
Access control | Automatic number plate recognition (ANPR). Card reader. Digital keypad. Radio control system. Push button control. Intercom. |
Top protection | Not required. Serrated edge (up to 100 mm). Barbed tape. Barbed wire (flat wrap). Palisade struts. Rotating spikes. |
Safety | Designed to DHF TS 013. Light curtain. Laser scanner. CAT3 safety edges. Induction loop amp. Guidance for specification option: Optional traffic lights (recommended) and audible sounder available - see Accessories. |
Accessories | Traffic lights. Guidance for specification option: Recommended safety feature. Audible sounder Guidance for specification option: Optional safety feature. Signage. Not required. |
Drive/ Control | 240 V, 16 A supply. Manufacturer guidance
|
Depth | 380 mm. Guidance for specification option: 330 mm C40 concrete and 50 mm surface finish. Manufacturer guidanceFoundation depth. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Expected Life | 15 year |
