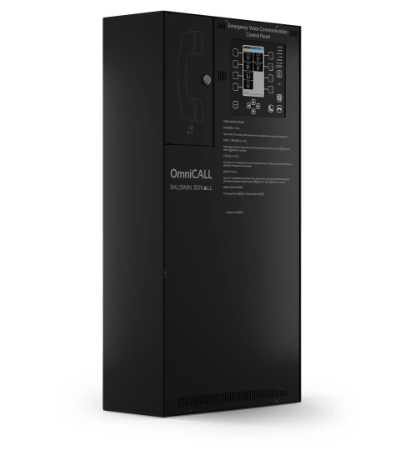

OmniCALL – Master Station (128 Way) - Emergency Voice Communication
Verified by manufacturer 1 month ago
OCCPL – Black
OCCPL – Black
OmniCALL 128-way master station managing fire telephone and disabled refuge communications for up to 128 outstations in total, distributed across up to 4 line cards, to BS 5839-9 and BS 8893.
Application
Enables trained staff to communicate with outstations during an emergency and monitor the status of the EVC system.
Location: Typically installed in a building control room or fire alarm panel room in large or complex buildings.
Description
Master station for OmniCALL emergency voice communication systems, managing fire telephone and disabled refuge communications for up to 128 outstations, to BS 5839-9 and BS 8893.
Features and benefits:
- Two-core, non-polarity dependent cabling.
- Supports up to 128 outstations in total across loop or radial configurations.
- Up to four line cards, allowing outstations to be distributed across multiple loops or radials.
- Expandable via OmniCALL network expansion panels.
- Surface or flush mount*.
- Seven year warranty.
*Flush mounting requires bezel OCCEPL-BZ or OCCEPLS-BZ.
OmniCALL is a fully monitored emergency voice communication system (EVCS) designed for clear, reliable communication during an emergency. It can be networked across large or multi-building sites, providing a flexible and scalable solution for modern buildings.
General information
Color | Silver Black |
Finish | Satin Powder-coated |
Material | Stainless steel Carbon steel |
Shape | Rectangle |
Length | 190 mm Guidance for specification option: Depth. |
Width | 430 mm |
Height | 847 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | W53/355 Disabled refuge master stations |
SKU Code | OCCPL |
Specification data - Disabled refuge master stations
Classification data | |
Standard | To BS 5839-9 and BS 8893. |
Enclosure | |
Mounting type | Surface. |
Material | Carbon steel. |
Finish | Powder-coated. |
Colour | Black. |
Security | Lockable cover. |
Number of lines | 128 |
Communication interface | Telephone handset. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Carbon steel |
Recyclability | Follows the WEEE Directive for recyclability. |
Expected Life | 15 year |
