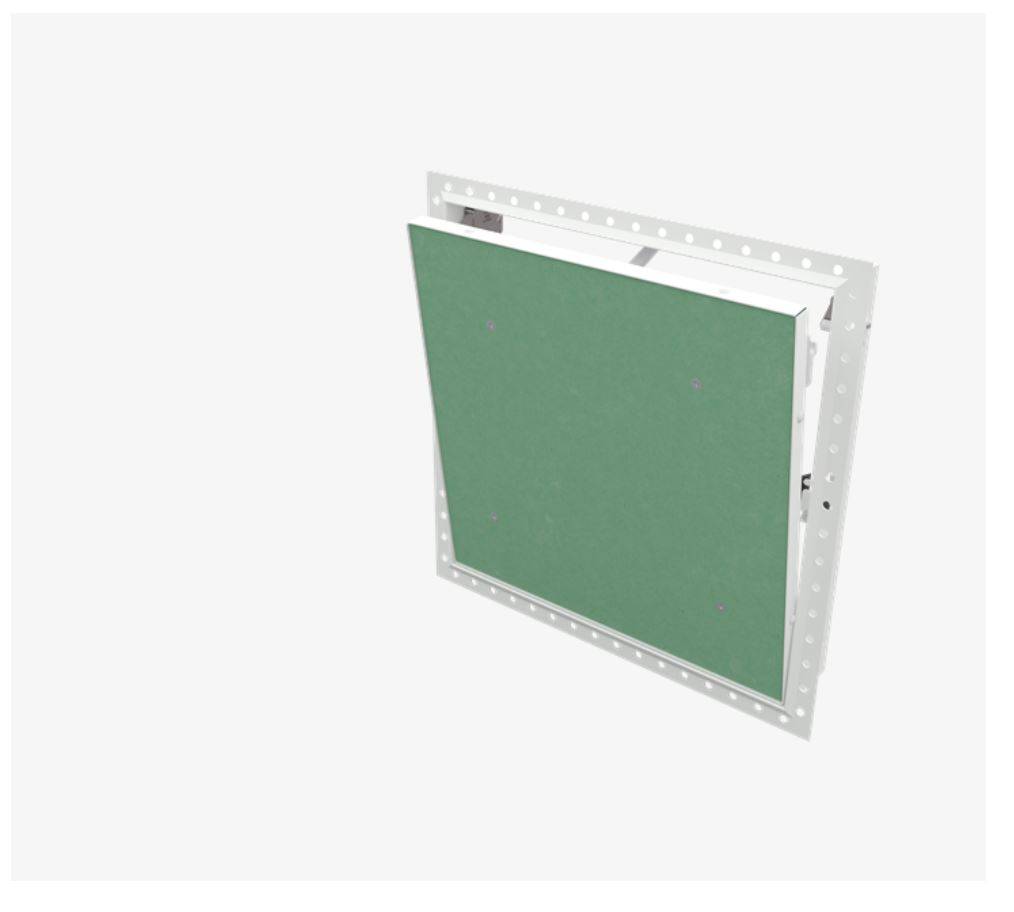

Lift-Out Tile Access Panel – Beaded Frame – FlipFix Range - Access Panel

Name: Lift-Out Tile Access Panel – Beaded Frame – FlipFix Range - Access Panel
Brand: Rapid Access Ltd
SKU: rPndcqsEfrb7YTgmuiYJ2j

Verified by manufacturer 30 days ago

Rapid Access Ltd

Wall access panel with moisture‑board tile‑faced door. Designed to provide discreet inspection access within ceramic tiled wall finishes.

Jump to:

BOS

+44 (0)24 7632 8811 Website

Application

Use the Lift-Out Tile Access Panel – Beaded Frame – FlipFix Range to provide concealed inspection access to building services behind ceramic tiled wall finishes in internal plasterboard partitions. Suitable for bathrooms, shower rooms, kitchens, washrooms, changing rooms, utility rooms and other tiled internal environments where a discreet access solution is required. Typical applications include residential developments, hotels, healthcare facilities, education buildings, leisure centres, offices, retail premises, public buildings, student accommodation and care homes. Designed for inspection and maintenance access to concealed mechanical, electrical and plumbing services, the panel is intended for internal wall installations only and is not suitable for ceiling applications or personnel access.

Typical environments

Bathrooms and shower rooms.
Commercial washrooms and toilet facilities.
Kitchens and food preparation areas (non-food processing).
Utility and plant rooms with tiled wall finishes.
Changing rooms and locker facilities.
Swimming pool ancillary areas (dry internal locations).
Spa and leisure facilities.
Residential kitchens and bathrooms.
Hotel and hospitality washrooms.
Healthcare sanitary facilities.
Internal service risers and duct enclosures with tiled wall finishes.

Typical sectors

Residential housing and apartments.
Hotels and hospitality.
Healthcare facilities.
Education buildings.
Leisure and sports centres.
Commercial offices.
Retail premises.
Public buildings.
Local authority buildings.
Student accommodation.
Care homes and assisted living facilities.

Description

Download product information, technical data sheets and supporting documentation from Rapid Access:

Product Information:

FlipFix Tile Door Non Fire Rated

Datasheets:

FlipFix Tile Door Non Fire Rated

The Lift-Out Tile Access Panel – Beaded Frame – FlipFix Range is a non-fire-rated metal access panel designed to provide discreet access within tiled wall installations. Specifically developed for ceramic tile finishes, the panel incorporates a moisture-resistant tile backer door, allowing the finished access panel to blend seamlessly with the surrounding wall surface.

The panel is supplied with the patented FlipFix fixing system, enabling installation in as little as five minutes without the need for timber framing, screws or adhesives. A 20 mm beaded frame is designed for plaster skim finishes, while the lift-out door is fitted with a mini touch latch for concealed opening. A controlled-action safety catch prevents the door leaf from falling away from the frame when opened, improving safety during inspection and maintenance.

Manufactured from 0.9 mm Zintec steel to BS EN 10152:2017 DC01 + ZE 25/25, the panel is polyester powder coated in RAL 9010 (30% gloss) for a durable, corrosion-resistant finish suitable for internal dry environments (Corrosion Class C1). The moisture-resistant 12.5 mm board infill is capable of supporting ceramic tiles and adhesive loads up to 32 kg/m².

Suitable for internal plasterboard-clad partitions, the panel provides low-security, concealed access to building services while maintaining the appearance of tiled wall finishes.

Key features

Patented FlipFix fixing system for installation in as little as 5 minutes.
Designed specifically for ceramic tiled wall applications.
Lift-out door with horizontal orientation for easy removal during maintenance.
20 mm beaded frame for plaster skim finishes.
12.5 mm moisture-resistant board infill ready to receive ceramic tiles.
Moisture board supports tile and adhesive loads up to 32 kg/m².
Mini touch latch provides concealed, tool-free opening.
Controlled-action safety catch prevents the door from falling away when opened.
Manufactured from 0.9 mm Zintec steel to BS EN 10152:2017 DC01 + ZE 25/25.
Polyester powder-coated RAL 9010 (30% gloss) finish.
Suitable for plasterboard-clad partition walls.
Available in standard sizes from 150 × 150 mm to 600 × 600 mm.
Structural opening size is panel size + 10 mm in both directions.
Low security (Grade 1) access solution for inspection applications.
Corrosion Class C1 for internal heated buildings with clean atmospheres.
Intended for inspection and maintenance access only.
Wall application only – not suitable for ceiling installations.
Non-fire-rated, with no acoustic, smoke or airtightness rating.

General information

Color	White Guidance for specification option: RAL 9010 Other Guidance for specification option: Tile Face Panel
Finish	Powder-coated
Material	Zintec steel
Shape	Square Rectangle
Length	Bespoke Guidance for specification option: Minimum and maximum size depends on the access panel type and application.
Width	Bespoke Guidance for specification option: Minimum and maximum size depends on the access panel type and application.
Height	Bespoke Guidance for specification option: Minimum and maximum size depends on the access panel type and application.
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/430 Access panels

SKU Code	FF-TD-BF-TC

Specification data - Access panels

Classification data
Size	- Manufacturer guidance Bespoke sizes are available to order: Minimum Size - 200 x 200 mm. Maximum Size - 600 x 600 mm.
Frame	Beaded frame.
Panel	-
Material	Steel.
Integral finish	Powder-coated. RAL 9010 (30% gloss). Guidance for specification option: As standard; other finishes available on request.
Latch or lock type	Touch Catch. Guidance for specification option: As standard. 5 mm Bit. Budget Lock. Castellated Key Lock.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Nuneaton, UK
Material	Zintec steel
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : Product manufactured in bespoke sizes; A1–A3 impact varies according to dimensions, specification and selected performance options. Manufactured from Zintec steel, the FlipFix Lift-Out Tile Access Panel is fabricated, assembled and finished with a durable RAL 9010 (30% gloss) polyester powder coating. Production includes steel forming, assembly of the moisture-resistant board-faced lift-out door, patented FlipFix fixing device, beaded frame, mini touch catch and controlled action safety device, followed by surface finishing, quality inspection and packaging. The principal material is recyclable steel, with recycled content dependent on the material supply chain. Bespoke sizes, alternative finishes and locking configurations are incorporated where specified.
Recyclability	Fully Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	22 %
Expected Life	Ten year
