Langley TA - 30 Bitumen Membrane Warm Roof Waterproofing System
Verified by manufacturer 1 day ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
An SBS torch applied warm roofing system offering a 30-year independent insurance backed guarantee. Suitable for new build or refurbishment projects.
Application
- Suitable for flat or sloping roofs.
- For new build or refurbishment projects.
- Suitable for all roof decks.
Description
The TA-30 Warm system, part of the Langley Parafor range, a warm roofing system offering a 30-year independent insurance-backed guarantee. This warm roof system, is a torch applied SBS elastomeric membrane system for flat or sloping roofs.
Features and benefits:
- 30-year independent insurance backed guarantee.
- Manufactured in accordance with EN 13501-5: 2005.
- BBA certified.
- EPD Certification for bitumen membranes
- Fire Rating: Broof(t4) BS EN13501-5 compliant build ups are available
- Parafor 30 GS achieves a ‘resistance to damage’ rating R4 (the highest level of acceptance) under MOAT 31.
- In accordance with guidance outlined within NHBC technical requirements for flat roofs and balconies.
- All Langley elastomeric membranes have been developed in accordance with the European Union of Agrément (UEAtc) and are manufactured and tested in accordance with UEAtc MOAT special directives (Methods of Assessment and Testing).
Supported by the full Langley package that includes: surveys, condition reports and proposals, specifications, site monitoring and reporting, technical and design advice, guarantee inspections, all at no additional cost.
General information
Color | Grey Manufacturer guidanceMultiple colour selections available. |
Finish | Textured Guidance for specification option: Slip-resisting slate granule surface. |
Material | Bitumen Guidance for specification option: SBS elastomeric bitumen. |
Warranty description | 30 year Guidance for specification option: Independent insurance backed guarantee Manufacturer guidanceLangley roofing systems are supplied with a genuine 30‑year independent insurance‑backed guarantee (IBG), providing both system assurance and financial protection for the building owner. The IBG covers the installed system in the event of a design failure, poor workmanship, a fault in the system or faulty materials, and remains valid even if the installing contractor or Langley were to cease trading. Issued directly to the building owner on completion, it acts as an additional, independent layer of financial protection and supports access to government funding schemes where an IBG is required.
|
Uniclass | |
CAWS | J41/10 Reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering |
Product range |
Specification data - Reinforced bitumen membrane warm roof covering systems
Classification data | |
Preparation | |
Horizontal work | Langley SA Primer. |
Skirtings and vertical work | Langley SA Primer. |
Air and vapour control layer | |
Type | Parevapo SBS, 3 mm (3.81 kg/m²). |
Attachment | Torch-bonded. |
Insulation | |
Type | Parafoam Ultra PIR Insulation (30 kg/m³). Guidance for specification option: Thicknesses available from 30 mm to 250 mm in 10 mm increments. Pararock (160 kg/m³). |
Fixing | Langstik SF PU adhesive. |
Waterproof covering | |
First layer | |
Type | Adepar JS Underlay, 3 mm (3.6 kg/m²). |
Attachment | Attached via self-adhesive strips. |
Top layer | |
Type | Parafor Solo GS Cap sheet, 5 mm (6.51 kg/m²). Guidance for specification option: 4 mm at selvedge. |
Attachment | Torch-bonded. |
Detail work | |
Flashings | Paraflash B3. |
Skirtings and upstands | Detailing membranes. |
Welted drips | Formed from cap sheet around a former. |
System accessories | Not required. Rooflights. Outlets. Trims. |
Colour | Cap sheet: Dark grey (as standard). Guidance for specification option: Available in several colours, consult manufacturer and insert requirements. |
Weight | Guidance for specification option: Nominally 13.11 kg/m² plus the weight of insulation, Parafoam Ultra (32 kg/m³) or Pararock (160 kg/m³) as standard, thickness to suit required U-value. |
Resistance class | Resistance class (to MOAT 31): R4. |
Insulation | Manufacturer guidanceInsulation thickness to suit project specific U-value requirements; consult manufacturer for more details and insert requirements. |
Overall thickness | Manufacturer guidanceNominally 11 mm, plus the required thickness of insulation. |
Fire performance | Fire performance: Broof [t4]. Guidance for specification option: To BS EN 13501-5:2016. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Contains Red List materials | No |
Country of product manufacture | France |
Manufacturing plant location | |
Material | Bitumen Guidance for specification option: SBS elastomeric bitumen. |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 7.18 | |
Recyclability | EPD end-of-life scenario assumes 15% material recycling, 45% energy recovery and 40% landfill. No verified recyclability claim is declared in the EPD. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 50 year |
Product certifications
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Product certifications
Certification type
BBA Agrément Certificate
TA-30 BBA
EPD

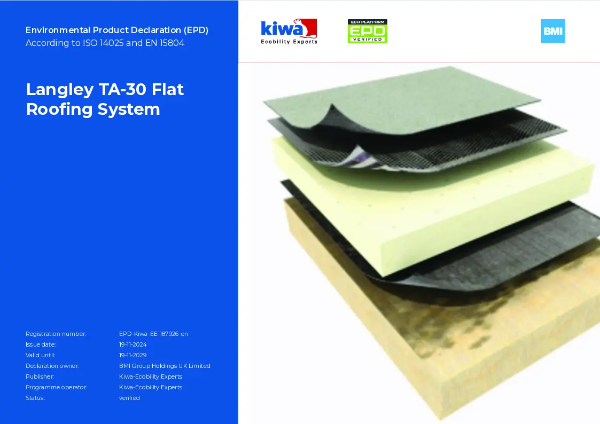

TA-30 EPD
Literature
Langley TA - 30 Bitumen Membrane Warm Roof Waterproofing System - Product sheet
Case studies
Colchester County High School
Salisbury Walk
