FRINS-2H Twin Skin Fire Roller Shutters - Roller Shutter
Verified by manufacturer 1 month ago
Twin skin insulated fire shutters, with sound reduction qualities.
Application
Suitable for:
- Commercial and public buildings – offices, shopping centres and transport hubs.
- Industrial and manufacturing facilities – robust fire protection in high-risk environments.
- Hospitality and healthcare – hotels, restaurants, canteens and hospitals.
- Educational institutions – schools, colleges and universities.
- Specialised environments – data centres, exhibition halls, and kitchens adjacent to meeting or exhibition rooms.
Description
The FRINS-2H twin-skin insulated fire roller shutter offers fire protection and security. Certified for two hours of fire resistance (E120) by Exova Warringtonfire, this shutter provides radiant heat insulation (EW60), significantly reducing the risk of secondary fire ignition.
In the event of a fire, the shutter descends automatically when connected to your fire alarm system via an interface panel and audio-visual alerts.
The robust construction, featuring a double-skinned steel curtain with a vermiculite insulating core, also provides a 20 dB sound reduction, making it suitable for use in areas where noise control is a consideration.
For enhanced safety, the shutter is equipped with safety brakes and a controlled descent mechanism. A variety of powder-coated finishes are available to match any RAL or BS colour, in addition to the standard galvanized steel finish.
Features and benefits:
- Certified for two hours of fire resistance (E120) by Exova Warringtonfire.
- Twin-skin insulated construction.
- Electric or manual operaton.
- Available in a range of finishes.
General information
Color | Grey Guidance for specification option: Curtain - self-finished light grey. Other Guidance for specification option: Polyester powder-coated to any RAL/ BS colours for an extra charge. |
Finish | Galvanized Guidance for specification option: Pre-galvanized. |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: On electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
SKU Code | FRINS-2H |
Specification data - Roller shutters
Classification data | |
Standard | To BS EN 13241. |
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Format | Thermally insulated. |
Arrangement | Vertical, face-fitted across opening. Vertical, fitted into reveal. |
Performance | |
Acoustic performance | 20 dB sound reduction. |
Shutter curtain | |
Lath material | Double-skinned steel with vermiculite insulating core. Guidance for specification option: Stainless steel cables connect the laths together and are fastened to the roller at the head. |
Profile | Flat. |
Finish and colour | Galvanized. Guidance for specification option: As standard. Polyester powder-coated, RAL/ BS colour. Guidance for specification option: Option to powdercoat any RAL/ BS colour for an additional cost. Plastisol. |
Frame and guides | |
Material | Steel. |
Finish | Galvanized. Guidance for specification option: As standard. Polyester powder-coated, RAL/ BS colour. Guidance for specification option: Option to powdercoat any RAL/ BS colour for an additional cost. Plastisol. |
Operation | |
Mode | Automatic, single-phase inline chain driven motor. Automatic, three-phase inline chain driven motor. |
Control | Push button control with audio-visual panel, chain override, fusible link and solenoid release. Guidance for specification option: As standard. Alternative control options include radio/ remote control and key fobs. |
Fire rating | Integrity: E120; Radiant heat insulation: EW60. Guidance for specification option: Certification: BS EN 1634-1: 2014 + A1: 2018, Exova Warringtonfire Report 420961. |
Hood/ fascia | Not required. Steel hood/ fascia. Guidance for specification option: Can be supplied to cover the coiled shutter and motor. Reveal fix installations are supplied with a fascia as standard. |
Bottom rail design | Steel 'T' shaped bottom rail. |
End plates | Steel. Guidance for specification option: Thickness relative to door size and supplied with steel plates for fixing to the structure. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Literature

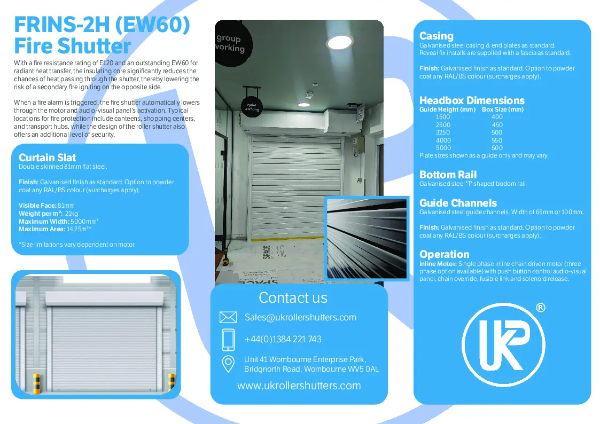

FRINS-2H-EW60-Datasheet
