Double Glazed Edge Affinity Rebated Double Door

Name: Double Glazed Edge Affinity Rebated Double Door
Brand: Optima
SKU: 4XR2ZjwfixS5Era4ZXHP6h

Verified by manufacturer 2 months ago

Optima

Product certifications:

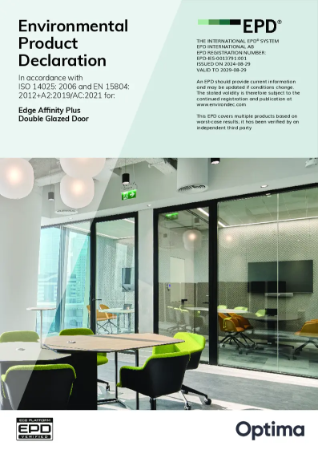

EPD
Certificate type

Double glazed rebated double doors from the Edge Affinity range provide premium acoustic performance. This double glazed rebated double door set features a dual-leaf, high-performance design.

Jump to:

+44 (0)1494 492725 Website

Application

Double glazed rebated double doors are ideal for large meeting room entrances requiring acoustic privacy.

Description

This double glazed rebated double door set is an aluminium framed acoustic glass doorset. The double glazed rebated double door includes high-quality seals and a 78 mm wide closing stile.

Features and benefits:

The door is designed for use within the Microflush door frame and can be hinged or pivoted.
It features a 78 mm-wide closing stile.
Part M-compliant clear opening included.

General information

Color	Silver White Other
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Door Leaves Edge Aluminium Framed Glass Door

Specification data - Aluminium doorsets

Classification data
Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Doorset size	- Manufacturer guidance Available up to 3000 mm in height. Width of leaf only: 990 mm (single leaf). Overall frame width: 2079–2099 mm.
Performance	-
Acoustic performance	39 dB.
Frame	-
Material	Aluminium.
Perimeter seals or inserts	Acoustic high-quality perimeter seals.
Finish	-
Coating	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement, contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Door leaf	-
Material	Glass.
Glazing	-
Type	Double glazed: acoustic laminate glass.
Manifestation	- Manufacturer guidance Insert requirements.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Operation	Hinges. Pivots.
Locking	Dead lock. Latch. Sash lock.
Samples required	Not required. Required.
System performance	Acoustic performance.

Sustainability data

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Manufacturing plant location	Mill Rd, Radstock BA3, UK
Material	Glass Aluminium
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 64.5 Lower emissions Value guidance: A1-A3 See Environmental Product Declaration literature for detailed LCA data.
