Brymec HDPE Drainage - HDPE Above Ground Drainage

Verified by manufacturer 10 days ago

Brymec Product certifications:
  • EPD

    EPD

    Certificate type

A HDPE system for above-ground soil, waste, industrial and rainwater drainage.

Jump to:
0333 000 55 55 Website

Application

Suitable for above-ground soil, waste, industrial and rainwater drainage in all building types.

Description

The Brymec HDPE system provides a highly efficient, durable solution for above-ground soil, waste, industrial and rainwater drainage in all building types. Naturally immune to corrosion and designed for safety and ease of installation, it delivers durability and chemical resistance.

The Brymec HDPE Range is BSI Kitemark Certified. This signifies that the HDPE drainage systems are constructed to a consistently high, measurable quality. Every component in the range meets BS EN 1519-1 certification. They’re also compatible with Brymec's other accredited drainage systems for a unified warranty and seamless transition across materials.

Features and benefits:

  • Highly durable and long lasting - Highly durable and impact-resistant, with an expected lifespan in normal conditions of more than 50 years. Backed by a ten-year Brymec warranty.
  • Low thermal conductivity - Condensation is minimised due to the low thermal conductivity.
  • Wide temperature range - Between -40°C to +70°C (and intermittent peak loads of +95°C for up to 2 minutes).
  • Leakproof and stress resistant - Easy, safe joining provides 100% leakproof seals, and resistance to mechanical stress, vibrations and ice damage.
  • Flexible, compatible installation - With two standard methods of jointing, full compatibility with other Brymec soil and waste solutions make the system adaptable across a wide range of projects.
  • Blockage and abrasion resistant - A smooth and abrasion resistant internal surface finish reduces the risk of blockages, ensuring efficient flow.
  • Chemical resistant - Including organic and inorganic solvents, plus most household detergents at 20°C.
  • UV light and weather resistant - Due to carbon black content, HDPE is UV resistant and impervious to weather.

General information

Color

Black

Material

High density polyethylene (HDPE)

Shape

Circle

Length

3000 mm

5000 mm

Width

32 mm

40 mm

50 mm

56 mm

63 mm

Show more

Warranty description

Ten year

Uniclass

Pr_65_52_03_37 High-density polyethylene (HDPE) above-ground drainage pipes and fittingsPrimary

CAWS

R10/415 HDPE pipework for internal use

R11/345 HDPE pipework

Specification data - High-density polyethylene (HDPE) above-ground drainage pipes and fittings

Classification data

Standard

To BS EN 1519-1.

Third-party product certification

BSI Kitemark Certified.

Colour

Black.

Size (nominal)

DN 32.
DN 40.
DN 50.
DN 56.
DN 63.
DN 75.
DN 90.
DN 110.
DN 125.
DN 160.
DN 200.
DN 250.
DN 315.

Integral accessories

Not required.
88° Elbows.
90° Long Radius Elbows.
45° Elbows.
45° Equal Y Branches.
45° Reducing Y Branches.
88° Equal Branches.
88° Reducing Branches.
88° Swept Branch.
Double Y Branches.
Short Branches.

Guidance for specification option:

180° Short Double Branch – 2 Way and 90° Short Corner Branch – 2 Way options available. Insert requirements.

Boss Pipe.
Ball Branches.

Guidance for specification option:

90° Corner Ball Branch – 2 Way and 180° Double Ball Branch – 2 Way, Ball Branch – 4 Way options available. Insert requirements.

Ring Seal Adaptors.
Expansion Sockets.
Concentric Reducers.
Eccentric Reducer.
Long Eccentric Reducers.
90° Elbow Adaptors With Cap.
Straight Adaptors With Cap.
Rubber Reducers For Adaptors.
Electro Fusion Couplings.
45° Access Pipe.
90° Access Pipes.
90° WC Connections.
Extended Height Floor WC Connections.
Straight WC Connections.
Firenze Trap with Access Cap.
Access Caps.
Blank Ends.
Pipe clamps.

Guidance for specification option:

Acoustic, heavy duty acoustic, low friction, unlined, heavy-duty unlined options available. Insert requirements.

Threaded Coupling (Compression Nut and Seal).

Manufacturer guidance

Components available in various sizes to suit pipe sizes. Consult manufacturer literature and insert requirements. Select all those needed for project.

Sustainability data

Clarity for low-carbon design

NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.

Explore NBS LCA
LCA illustration

Country of material origin

Italy

Country of product manufacture

Italy

Material

High density polyethylene (HDPE)
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/kg)
Stage:A1–A3 ('Production stage')
Normalised unit : 3.47 (kg CO₂ eq/kg)
Declared unit : 3.47

Expected Life

50 year

Product certifications

BIM objects

Platform Compatible Version
Revit
-

1

Product certifications

EPD

EPD

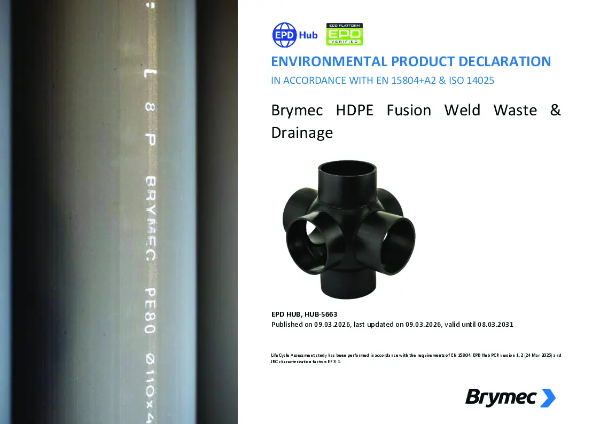

Brymec HDPE Drainage - EPD

Literature

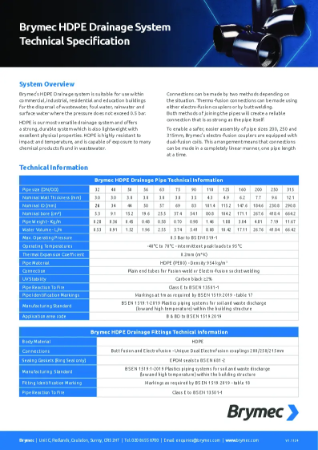

Brymec-HDPE Drainage-Technical Specification-271124

Brymec-HDPE Drainage-Technical Specification-271124

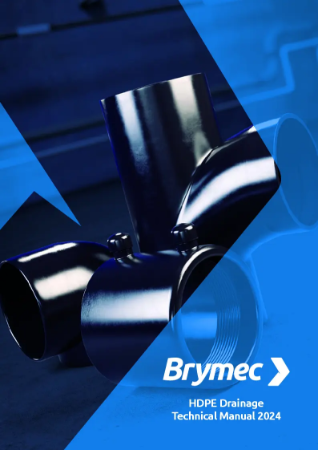

Brymec-HDPE Drainage-Technical Manual-120326

Brymec-HDPE Drainage-Technical Manual-120326

Case studies

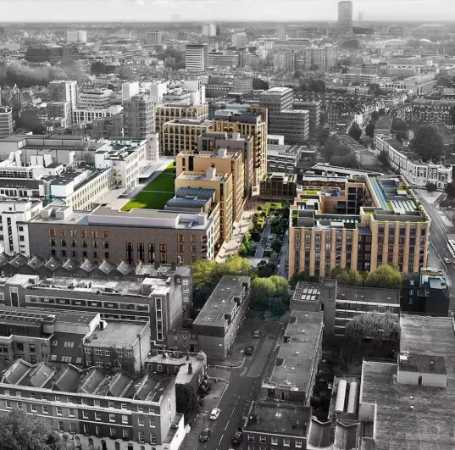

Mount Pleasant Phase 3

Mount Pleasant Phase 3

Portal Way, North Acton

Portal Way, North Acton
