Box Rail Deck Support System - Decking Support System

Name: Box Rail Deck Support System - Decking Support System
Brand: MyDek Ltd
SKU: hopNqS3URtpuKBy9uy2b5J

Verified by manufacturer 2 months ago

Box Rail BR32 & Support Foot SF04

MyDek Ltd

A height adjustable, non-combustible, aluminium support system for MyDek decking.

Jump to:

BOS

+44 3300 94 94 11 Website

Application

For use on balconies, walkways, roof terraces, podium decks, boardwalks, decking areas in commercial, hospitality, public realm and residential applications.

Description

An A1 fire rated, non-combustible, aluminium support frame system designed for supporting MyDek decking on balconies and terraces. Compatible with all decking systems from MyDek for fast and accurate installation.

By using different combinations of support cleats and BoxRails, a wide range of construction heights can be achieved. The joists can also be adjusted within the cleats to suit gradients as well as height.

Features and benefits:

Fully certified.
Non-combustible.
Lightweight.
30% faster installation compared to traditional pedestal systems.
30 year warranty.
60-year design life.

General information

Color	Silver
Finish	Mill
Material	Aluminium
Shape	Rectangle
Length	3600 mm Bespoke
Width	40 mm
Height	32 mm 60 mm 90 mm Bespoke
Warranty description	30 year

Uniclass	Pr_20_76_51_07 Aluminium structural sectionsPrimary
CAWS	Q55/110 Deck Q55/380 Deck boards

SKU Code	BR32

Specification data - Aluminium structural sections

Classification data
Structural sections	-
Size	35—57 mm. Guidance for specification option: SF04. Manufacturer guidance Construction heights include the height of the BoxRail and exclude the height of the deck board. The three different joist sizes can be combined with any of the three different support cleat sizes to achieve a range of different construction depths.
Finish	-
Applied	Mill.
Colour	Silver (natural).
Reaction to fire classification	To BS EN 13501-1, Class A1.
Grade	6063-T6.
Support	SF04.

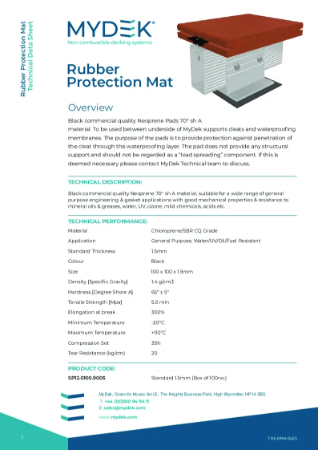

Installation	Clipped onto support cleats and fixed using supplied self-drilling screws. Guidance for specification option: Rail clips to adjustable pedestal. Rubber protection mats should be inserted to protect waterproofing membranes if necessary.
Expansion capacity	1 mm per linear metre.
Coefficient of thermal expansion	0.024 mm/m/°C.
Accessories	Not required. J-Clip - Paving tile restraint system. Guidance for specification option: Enables the restraint of porcelain tiles against wind uplift. Allows MyDek decking boards and porcelain tiles to be utilised on the same support framework. Overall size: 75 x 15 x 18.5 mm (L x W x H). Joint space width: 3 mm. Drainage channels. Edge trims. Furniture anchors.

Sustainability data

Contains Red List materials	No
Material	Aluminium
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 % Guidance for specification option: Up to
Expected Life	60 year
