Folding Industrial Doors for Glasgow Royal Concert Hall

Folding Industrial Doors for Concert Hall

Bolton Gate Company was commissioned to manufacture and install bespoke folding industrial doors for the south entrance of the Glasgow Royal Concert Hall, one of Scotland’s most recognisable cultural and heritage venues.

Supplied as part of a wider refurbishment programme, the new entrance doors needed to operate reliably in a busy public environment while meeting demanding architectural and aesthetic requirements.

This project called for a specialist approach to commercial folding doors, combining the durability expected of industrial steel doors with fine decorative detailing more often associated with architectural feature elements.

Project Summary

Site: Glasgow Royal Concert Hall – South Entrance Gates

Client: Glasgow City Council

Contractor: Reid Wire Limited, Glasgow

Architect: Glasgow Life

Sector: Cultural and heritage venues

Product: Folding industrial doors (bi‑fold configuration)

Materials: External steel door panels with bespoke cut‑out design

Key challenge: Protecting intricate cut edges from corrosion without distorting thin steel panels

Solution: Low‑temperature zinc electroplating

Outcome: Durable, visually distinctive folding doors delivered within a tight refurbishment programme

The Project

The new folding industrial doors form the main southern entrance to the Glasgow Royal Concert Hall and are subject to frequent daily use by staff, performers and visitors. As external steel doors in a public‑facing location, they needed to provide long‑term durability, smooth operation and effective protection against Scotland’s variable climate.

Alongside these practical requirements, the doors were also intended to make a clear architectural statement. The brief specified that each steel door panel should incorporate a bespoke musical motif, reflecting the cultural purpose of the building. The chosen design represented the musical notation for “A Man’s a Man for A’ That” by Robert Burns, requiring every panel to be individually cut with a highly detailed pattern.

For Bolton Gate Company, this meant delivering industrial steel doors capable of withstanding heavy use, while ensuring the precision of the decorative cut‑outs and the overall visual quality expected of a landmark venue.

The Challenge

Although the finished folding doors appear refined and understated, their manufacture involved a number of technical challenges.

Cutting intricate patterns into steel panels inevitably exposes raw steel edges, particularly around fine internal details. On external steel doors, these exposed edges are especially vulnerable to corrosion, as moisture can penetrate far more easily than on flat sheet surfaces.

In most industrial applications, corrosion protection would be achieved using hot‑dip galvanising. This process involves immersing the steel in molten zinc at temperatures of approximately 450°C. For standard folding industrial steel doors, this is usually acceptable. In this case, however, the door panels were relatively thin and contained a high density of decorative cut‑outs.

There was a genuine risk that hot‑dip galvanising could cause distortion, warping or loss of flatness in the panels. Any deformation would have compromised the appearance and the operation of the folding industrial doors, particularly where precise alignment is required for bi‑fold systems to function smoothly.

The challenge was to deliver full corrosion protection without undermining the dimensional stability or the clarity of the bespoke design.

The Solution

To address this, Bolton Gate Company specified a specialist zinc electroplating process instead of conventional hot‑dip galvanising.

Zinc electroplating applies a protective zinc coating using an electrically charged solution, operating at a significantly lower temperature of around 100°C. This allowed the entire steel door panel, including all exposed cut edges within the decorative pattern, to receive a uniform protective layer without subjecting the material to excessive heat.

The lower processing temperature eliminated the risk of distortion, ensuring that each panel remained flat and true. At the same time, the electroplated coating provided effective long‑term corrosion resistance suitable for external use.

Crucially, this approach preserved the sharpness and definition of the musical motif, allowing the bespoke detailing to remain crisp and visually legible. The result was a set of folding industrial doors that met the technical performance requirements of a busy public building and the aesthetic expectations of a prestigious cultural venue.

The Outcome

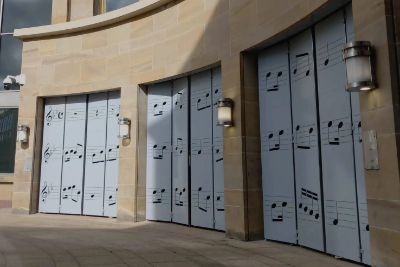

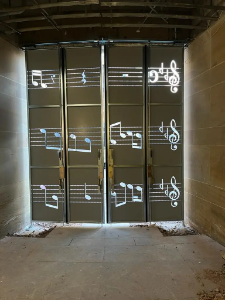

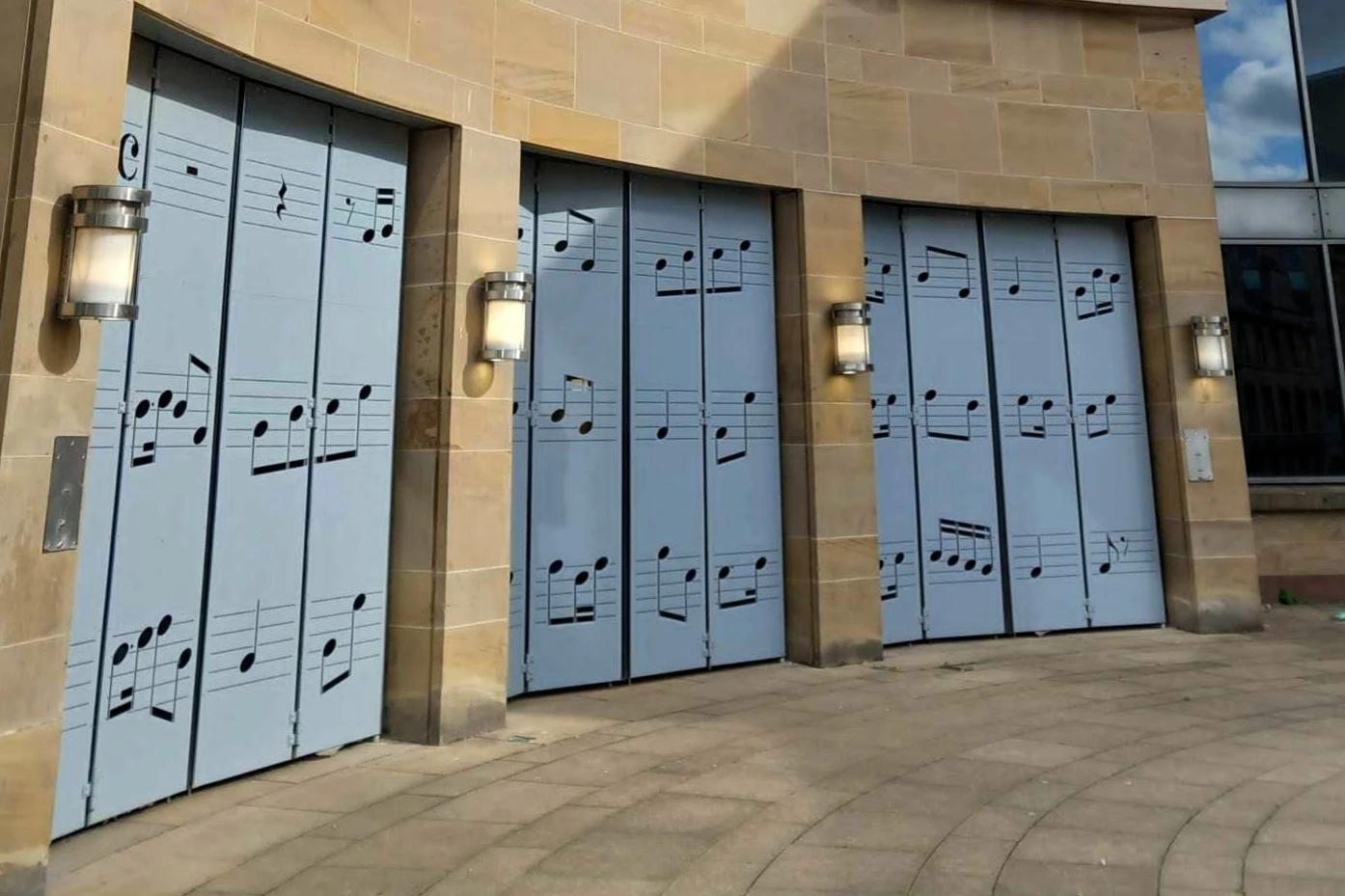

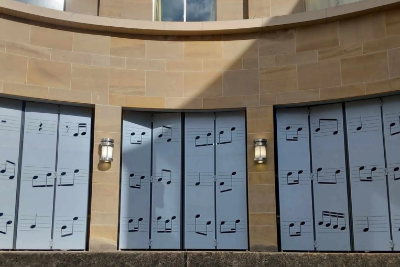

The completed commercial bi‑fold entrance doors now provide a robust and reliable access solution for the Glasgow Royal Concert Hall, while also contributing a distinctive architectural feature to the building’s façade.

The folding configuration allows the doors to open fully when required, maximising clear access during peak visitor periods, and to close securely outside operating hours. As commercial folding doors, they combine operational efficiency with the strength and longevity associated with industrial steel construction.

Installation was completed within a tight three‑week refurbishment window, minimising disruption to the concert hall’s programme. The finished doors demonstrate how carefully engineered folding industrial doors can deliver functional performance and meaningful design detail in high‑profile public environments.

Why Bolton Gate Company?

Projects of this nature reflect Bolton Gate Company’s experience in delivering specialist door solutions where standard products are not sufficient. With almost a century of expertise, the company works closely with architects, specifiers and contractors to resolve complex technical challenges without compromising design intent.

From bespoke folding industrial doors for cultural and heritage venues to heavy‑duty industrial steel doors for demanding operational environments, Bolton Gate’s strength lies in understanding when conventional approaches are not appropriate and engineering alternatives that perform reliably over the long term.

Key benefits of the solution

• Bespoke folding industrial doors designed specifically for a cultural venue
• Low‑temperature zinc electroplating to protect intricate cut edges without distortion
• Durable external steel doors suitable for high‑traffic public use
• Precise decorative detailing retained without compromising performance
• Delivered and installed within a constrained refurbishment programme
