Unleaded Inter-loc Horizontal Cavity Trays

Name: Unleaded Inter-loc Horizontal Cavity Trays
Brand: Timloc Building Products
SKU: wy6NJyUXxPXN6LGfet37BM

Verified by manufacturer 10 months ago

IL4 four-brick-long horizontal cavity tray, new build applications

Product certifications:

Preformed horizontal cavity tray system for new build and existing walls.

Jump to:

Application

At the abutment of a flat roof with a cavity wall.
At the abutment of a lean-to or mono pitch roof with a cavity wall.
Over concrete ring beams.
Over airbricks, cavity liners, ducts, meter boxes, etc.
On external walls (not exceeding 102.5 mm in thickness) built from standard brickwork, blockwork or stone.
Clear cavity widths of 50–125 mm.

Preformed horizontal cavity tray system for new build and existing walls.

Features and benefits:

Fits all clear cavity sizes up to 125 mm.
Suitable for brick, block and stone wall construction (cutting of masonry may be required).
150 mm-high back upstand exceeds minimum requirements of NHBC.
Angled section between cavity.
Interlocking mechanism for joining tray lengths to eliminate tray jointing.
Built to brick bonding lengths for ease of use.
Angled section between cavity tray base and rear upstand automatically sheds water to the outer leaf.
Built independent to the inner leaf will enable inner and outer leafs to be built independently, if required.
Available in two lengths: four-brick for general use and two-brick for reducing waste when making up a run of cavity tray to the required length.
Can be specified separately with a pre-applied polystyrene strip mortar barrier.

Quality:

Color	Black
Material	Polypropylene

Uniclass	Pr_25_57_21_66 Preformed cavity traysPrimary
CAWS	F30/370 Preformed cavity trays F30/56 Preformed cavity trays

SKU Code	IL4

Classification data
Material	Polypropylene (PE).
To fit cavity width	50–125 mm.
Height	150 mm.
Length (effective)	900 mm (four bricks).
Accessories	None. EXT90 - external 90° corner. Guidance for specification option: Effective length: 220 mm (one brick). GWP total, A1–A3: 0.0882 kg·CO₂e/kg. INT90 - internal 90° corner. Guidance for specification option: Effective length: 220 mm (one brick). GWP total, A1–A3: 0.1763 kg·CO₂e/kg. EXT135 - external 135° corner. Guidance for specification option: Effective length: 330 mm. GWP total, A1–A3: 0.0882 kg·CO₂e/kg. INT135 - internal 135° corner. Guidance for specification option: Effective length: 330 mm. GWP total, A1–A3: 0.087 kg·CO₂e/kg. SERH - Stopend, right handed. Guidance for specification option: GWP total, A1–A3: 0.0093 kg·CO₂e/kg. SELH - Stopend, left handed. Guidance for specification option: GWP total, A1–A3: 0.0093 kg·CO₂e/kg.

Material	Polypropylene
Carbon dioxide equivalent

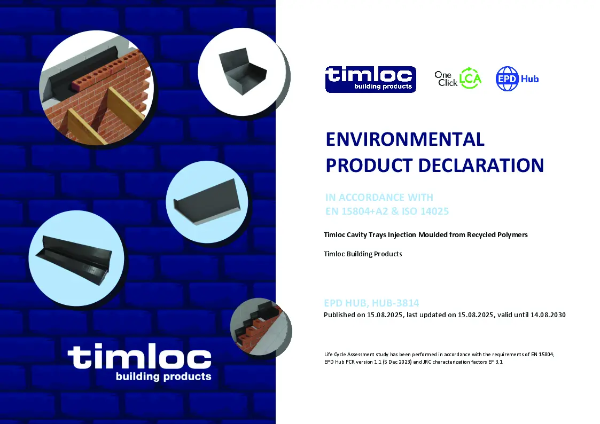

Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalized unit :0.134 (kg CO₂ eq/kg) Declared unit :0.13426 Lower emissions Manufacturer guidance Cavity tray only; consult manufacturer for details of accessories as applicable.
