SureProtect Pure® Wall Cladding System
Verified by manufacturer 4 months ago
Apricot
Apricot
EPD
Certificate type
Hygienic PVC-U wall cladding.
Application
- Operating theatres;
- Healthcare environments;

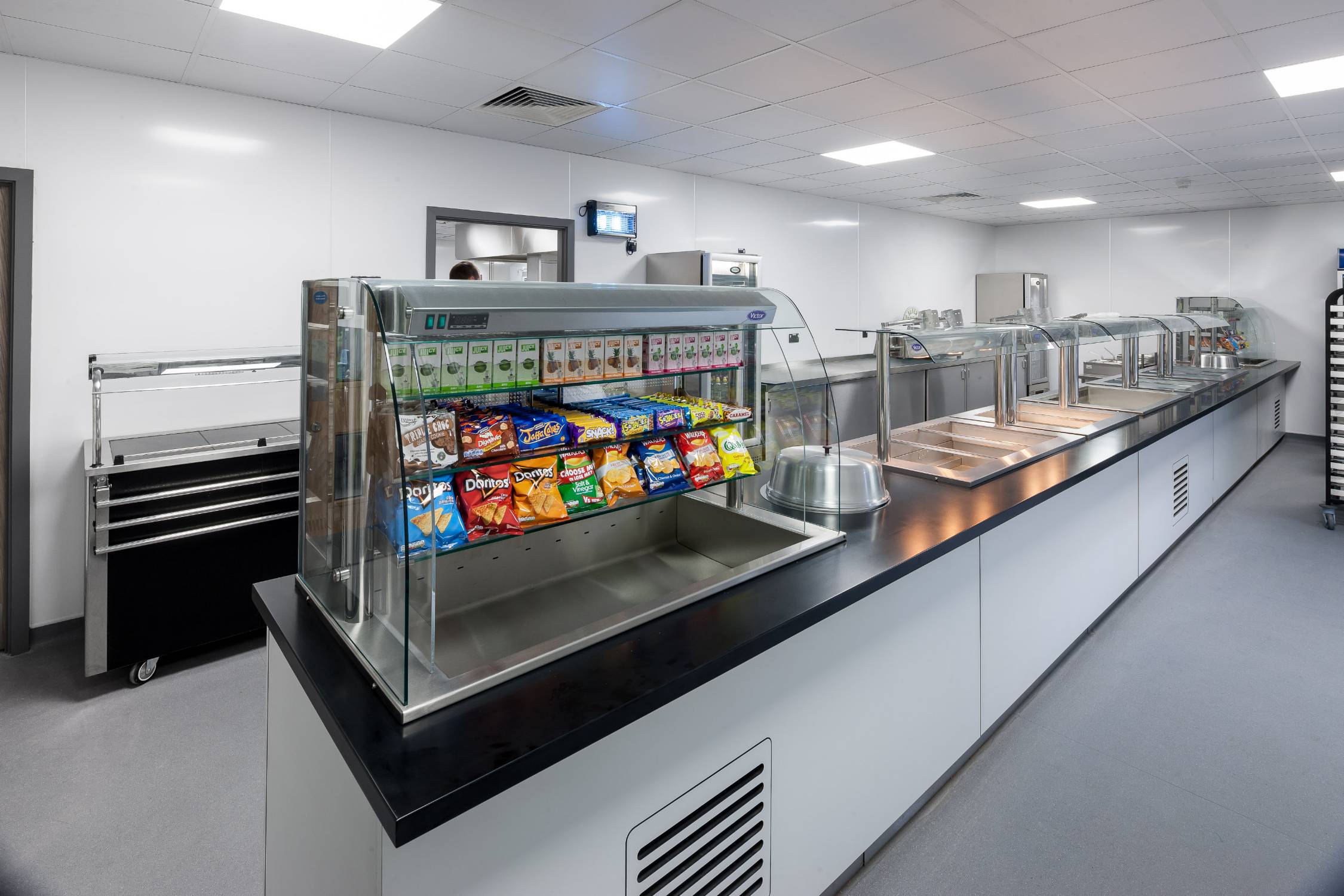

- Commercial kitchens;
- Sport and leisure facilities;
- Food and pharmaceutical manufacturing facilities;
- Laboratories;
- Dentist practices;
- Veterinary surgeries;
- Bathrooms.
Description
A hygienic PVC-U wall cladding.
Features and benefits:
- The smooth surface makes it easy to clean and maintain whilst also being resistant to damage caused by everyday impact.
- The cladding is available in 35 colours and a range of finishing options, depending on application requirements.
- Product meets EU Commission Regulation 10/2011 with regard to food contact and can withstand temperatures of up to 60°C.
General information
Color | Beige Black Blue Cream Green |
Finish | |
Material | PVC-U |
Shape | Rectangle |
Length | 2440 mm 2500 mm 3050 mm |
Width | 1220 mm |
Height | 2.5 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | K13/145 Proprietary plastics cladding K13/160 Proprietary |
SKU Code | SPP25 |
Specification data - Plastics sheet wall claddings
Classification data | |
Material | PVC-U. |
Thickness | 2.5 mm. |
Sheet size | 2440 x 1220 mm. 2500 x 1220 mm. 3050 x 1220 mm. |
Finish | Satin. |
Colour | Apricot. |
Fire performance | B-s3, d0. |
Accessories | SC310 silicone sealant. Guidance for specification option: Available in white, pastels and brights. SPP/1PC One part capper. Guidance for specification option: Available in white and pastels. SPP/1PJ One part joiner. Guidance for specification option: Available in white and pastels. SPP/2PC two part capper. Guidance for specification option: Available in white and brights. SPP/2PJ two part joiner. Guidance for specification option: Available in white and brights. SPP/2PT two part transition. Guidance for specification option: Available in white and brights. SPP/EA50 50 mm external angle. Guidance for specification option: Available in white and pastels. SPP/EC external corner. Guidance for specification option: Available in white, pastels and brights. SPP/IA50 50 mm internal angle. Guidance for specification option: Available in white and pastels. SPP/ICS internal corner - small. Guidance for specification option: Available in white and brights. WGA120 one part acrylic adhesive. WGP65 two part polyurethane adhesive. WR50 weld rod 50 m coil. Guidance for specification option: Available in Iceberg, Peppermint and all brights. WR80 weld rod 80 m coil. Guidance for specification option: Available in White, Platinum and Champagne. |
Colour (Light reflectance value (LRV) | 40. |
Sustainability data
Clarity for low-carbon design
NBS LCA helps construction professionals measure environmental impact and identify low-carbon emission products for more sustainable projects.
Material | PVC-U |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalized unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalized unit : Declared unit :24.8 Value guidance: A1-A3Product average - see EPD for details. | |
Recyclability | 100% Guidance for specification option: 100% of pvc in our products is recyclable Manufacturer guidance100% of pvc in our products is recyclable |
Expected Life | 35 year Guidance for specification option: Assumed service life is Industrial average of 35 years. |
Product certifications
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
EPD
SureProtect Wall Cladding EPD - BREGENEPD000773
Literature
Literature type
The Gradus Knowledge - Wall Protection Series
Wall Protection Systems Brochure - Edition 2 - 2025
SureProtect Pure Brochure
Case studies
Wall Protection - BMI Healthcare Facility
Wall Protection & Matting - Proton Beam Therapy Centre
Wall Protection - Evelina Children's Hospital
Wall Protection - Rainbow Community Hub, Elland Road
